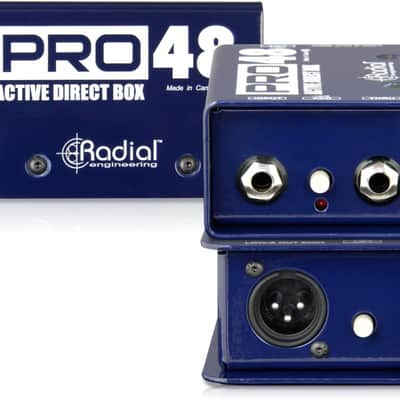

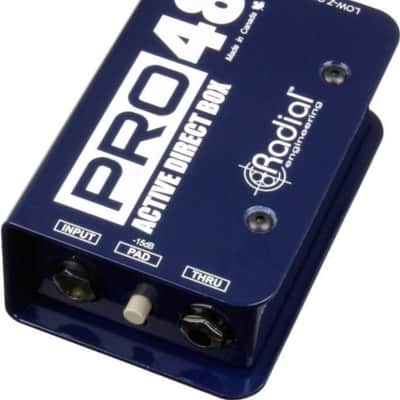

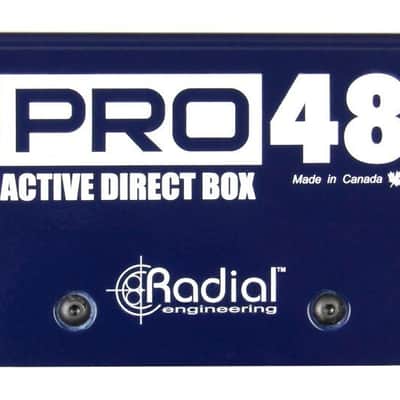

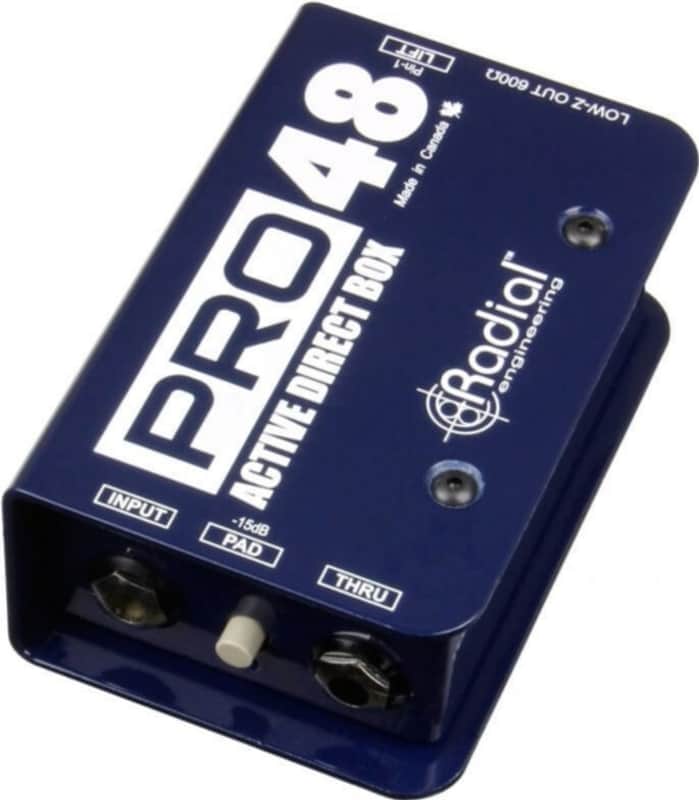

RADIAL Pro48 High performance active direct box designed & 48V phantom powered   Exceptional sonic performance

• The Pro48's innovative internal switching power supply significantly increases headroom producing less distortion while yielding a smooth, linear response that extends from 20Hz to well above 40kHz. This results in natural, uncolored signal that is as good or better than DI boxes costing several times more. The superior performance makes the Pro48 an ideal candidate for use with battery powered active basses and acoustic guitars that tend to overload other direct boxes.

Features   Pro48 Resources

• Part no: R800 1105 00

Using the Pro48 with acoustic guitar

• The Pro48 is the perfect interface for acoustic guitar on stage. The high internal rail voltage is able to handle the dynamics of today's active instruments without choking and deliver the smooth, natural sound of the instrument.

Using the Pro48 with bass

• Whether you use an active or passive bass, the Pro48's exceptional signal handling is able to capture the sound of the instrument without distortion or adding artifact. And with proper loading, your bass will sound round and smooth when you record or play live.

Using the Pro48 with acoustic instruments

• With more headroom and less distortion the Radial Pro48 is a great all-round active direct box for instruments of all types. This makes it particularly effective with instruments that can sound 'peaky' or 'edgy' when amplified.

• High performance active direct box
• Increased dynamic range and headroom
• 48V phantom powered with switching supply
• Ideal for acoustic guitar and bass

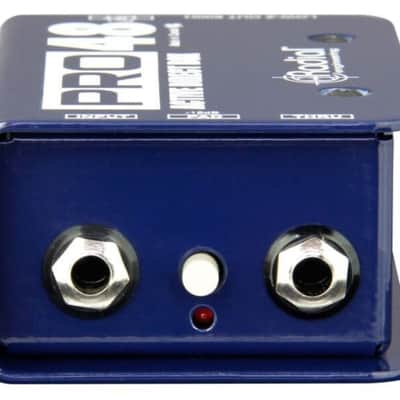

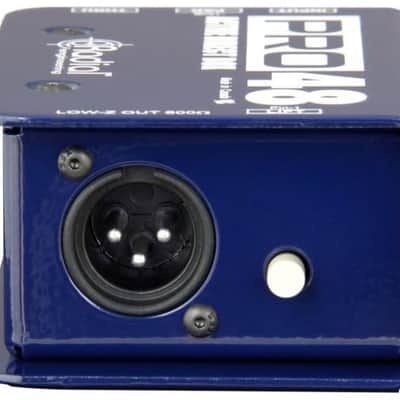

Input pad, Ground lift   General Construction:

• 14-gauge steel

Size (L x W x D):

• 4.25" x 2.75" x 1.75" (108 x 70 x 44mm)

Weight:

• 1.2 lb (0.54kg)

Power:

• 48V phantom - proprietary digital switching

Conditions:

• For use in dry locations only between 5°C and 40°C


Specifications Audio circuit type:

• Proprietary analog circuit with low-noise op-amp

Frequency response:

• 20Hz ~ 20kHz (± 1.5 dB

Dynamic range:

• 99dB

Total harmonic distortion:

• 0.001% @ 0 dBu

Intermodulation Distortion:

• 0.002% @ 0 dBu

Phase Deviation:

• +28º at 20Hz | +1º at 1kHz | -2º at 20kHz

Input Impedance:

• 220kΩ - ¼" input

Output Impedance:

• 175Ω - XLR output

Equivalent Input Noise:

• -86dBu

Noise Floor:

• -82dB below 0dBu

Maximum Input:

• +9dBu

UPC

• 676101036776
