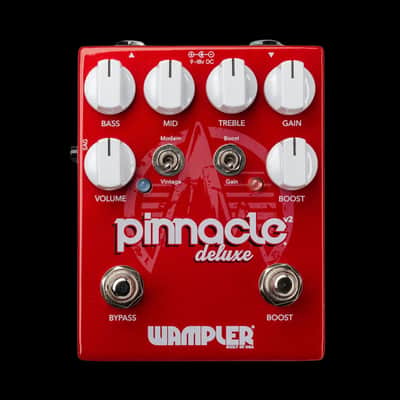

Wampler Pinnacle Deluxe V2

The Wampler Pinnacle Deluxe V2, available at Palen Music.com, is a versatile distortion and overdrive pedal designed to capture the legendary "brown sound" of cranked British amplifiers. Building on the foundation of its predecessors, this updated version offers expanded control and flexibility. It features a powerful 3-band EQ allowing precise sculpting of your tone, from classic rock crunch to modern high-gain aggression. An independent, footswitchable boost circuit, inspired by classic "tube screamer" style pedals, can be used to push the main distortion circuit for solos or even used on its own as a clean boost. The Vintage/Modern switch further shapes the pedal's character, while the side-mounted Sag switch allows you to tighten or loosen the low-end response. With high-grade components and true bypass switching, the Pinnacle Deluxe V2 is built for roadworthy performance and exceptional tone.

Highlights

• Delivers iconic "brown sound" British amp tones
• Features a versatile 3-band EQ for detailed tone sculpting
• Includes an independent, footswitchable boost function
• Offers Vintage and Modern voicings via a toggle switch
• Side-mounted Sag switch controls low-end response

Specifications

• Pedal Type: Overdrive with 3-band EQ
• Analog/Digital: Analog
• Inputs: 1 x 1/4"
• Outputs: 1 x 1/4"
• True Bypass: Yes (Relay Based)
• EQ: 3-Band EQ (Bass, Mid, Treble)
• Controls: Gain, Volume, Bass, Mids, Treble, Boost, Modern/Vintage switch, Boost/Gain switch, Sag switch
• Power Source: 9V-18V DC power supply (sold separately)
• Batteries: 1 x 9V Battery (optional)
• Power Usage: 19mA (9V), 23mA (18V)
• Height: 1.5"
• Width: 3.5"
• Depth: 4.5"
• Built In: USA
