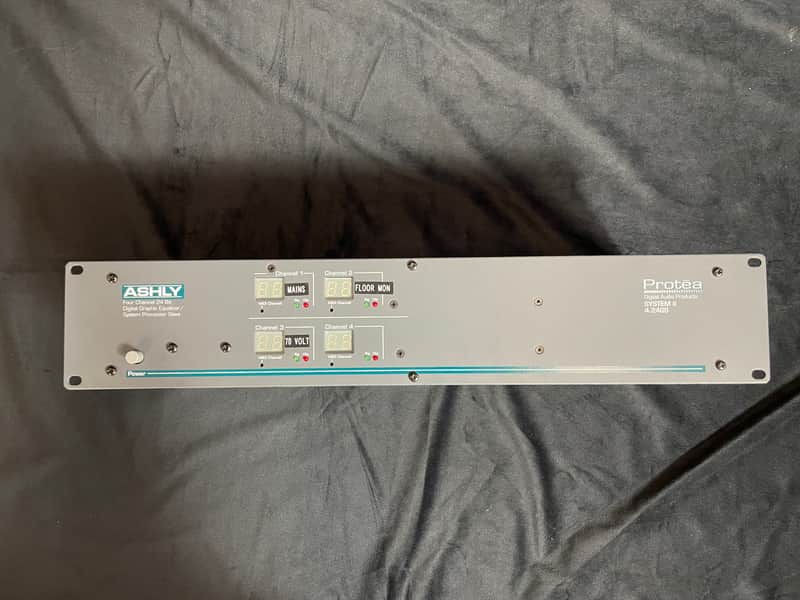

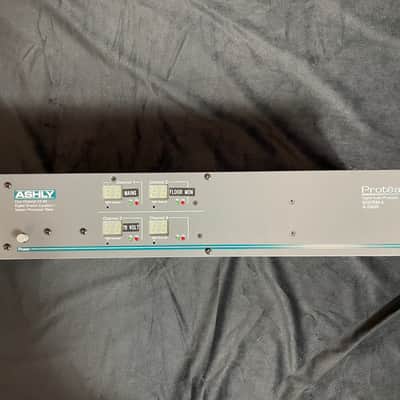

In excellent condition, gently used in a church setting.

Applications:
Distributed Sound, Sound Masking, Multi-Room Installations for Lobby or Under Balcony Speaker Management, FOH Speaker Management, Delay Towers and Side Fills, Monitor Systems (wedge and in-ear) Tuning and Protection

Achitect Specs:
The programmable digital distribution processor shall consist of four inputs and eight outputs with the ability to assign any input to any output. Each input channel shall include: a routing stage allowing the user to assign the input to any or a combination of output(s), a gain stage capable of +12dB boost and -40dB cut; six filter stages configurable to be a parametric filter with a frequency range of 19.7Hz to 21.9KHz, 1/24th octave step and a +15dB boost, -40dB cut, or a 6 or 12dB/octave high or low shelf filter. Each output channel shall include: a high pass/ low pass crossover filter stage with selectable slopes of 12, 18, 24 and 48dB per octave using Linkwitz-Riley, Bessel or Butterworth filter configurations; four filter stages configurable to be a parametric filter with a frequency range of (Off) and 19.7Hz to 21.9KHz, 1/24th octave step and a +15dB boost, -40dB cut, or a 6 or 12dB/octave high or low shelf filter; a delay stage with a maximum delay of 682.54ms; a gain stage capable of +12dB boost and -40dB cut and the ability to invert the phase; a full function compressor/limiter with a threshold range of -20dBu to +20dBu. Each input and output shall have individual mute capability. The programmable digital distribution processor shall have a maximum in/out level of +20dBu. Frequency response shall be ±0.25dB 20Hz to 20kHz. Dynamic Range shall be greater than 110dB (20-20KHz, unweighted) and SMPTE intermodulation distortion or THD shall be less than 0.01% at 1KHz, +20dBu. Input impedance shall be 18K ohms active balanced. Output impedance shall be active balanced, 112 ohms. Inputs and outputs shall be balanced type on euroblock connectors. LED indicators shall show signal present, limiter threshold, clip and mute conditions. Full programming and control of the unit shall be from the front or rear panel accessible RS-232 serial port using Ashly Protea System Software, or via MIDI. There shall be 30 factory presets that may be overwritten by the user and stored. External recall of up to eight scenes via contact closure shall be accessible through a euroblock connector. There shall also be a four levels of password protected security lockout. The programmable digital crossover shall weigh 9.0 lbs net and mount in a standard 19” rack using 1 space (1.75” high). The power requirement shall be 80-260VAC, 50-60Hz, 30W. The unit shall be an Ashly Audio Protea System II 4.24D Digital Distribution Processor.

Features:
• One Rack Space
• Four Inputs - Eight Outputs
• Inputs Assignable to Any Output
• Crossover, EQ, Delay and Limiter Functions
• Linkwitz-Riley, Bessel and Butterworth Filters
• 12, 18, 24 and 48dB/Octave Slopes
• Parametric EQ: Full Bandwidth, 1/64th to 4 Octave Range
• 682.54ms Output Delay
• Limiter on Each Output
• Programmable by PC or MIDI
• Individual Input and Output Signal Present/Limiter Threshold/Clip LEDs

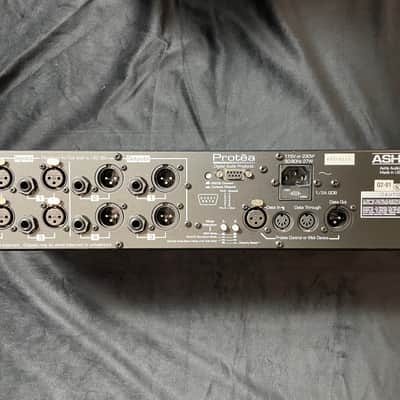

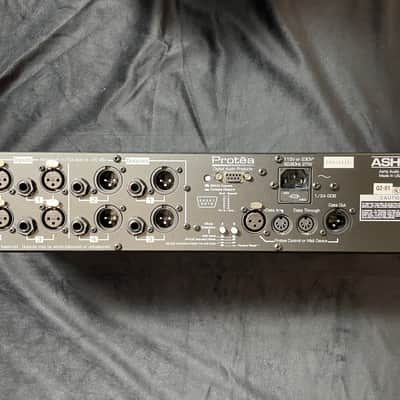

• Balanced Inputs and Outputs
• Euroblock Audio Connections
• Contact Closure for External Recall of 8 Scenes
• Password Protected System

General Specifications
Protea System II 4.24D
INPUT: Active Balanced, 18 Kohms
MAX. INPUT LEVEL: +20 dBu
OUTPUT: Active Balanced, 100 ohms
MAX. OUTPUT LEVEL: +20 dBu
FREQUENCY RESPONSE: 20 Hz-20KHz, ±0.25 dB THD: <0.01% @1 KHz, +20 dBu
DYNAMIC RANGE: >110 dB (20 Hz-20 kHz) unweighted
OUTPUT NOISE: <-90 dBu unweighted
EQ FILTERS:
NUMBER: 6 per Input, 4 per Output Selectable As:
PARAMETRIC BANDWIDTH: 1/64th Octave to 4 Octave
RANGE: +15/-30dB, 0.1 dB increments
RESOLUTION: 1/24th Octave
HIGH-SHELF SLOPE: Selectable 6 or 12dB/Octave (1 High Shelf, 2 High Shelf)
FREQUENCY RANGE: 19.7Hz to 2KHz
RANGE: +/-15dB, 0.1dB increments
LOW-SHELF SLOPE: Selectable 6 or 12dB/Octave (1 Low Shelf, 2 Low Shelf)
FREQUENCY RANGE: 3.1886KHz to 20.1587KHz RANGE: +/-15 dB, 0.1dB increments CROSSOVER FILTERS:
HIGH PASS FILTER TYPE: Linkwitz-Riley, Bessel, Butterworth
SLOPE: 12, 18, 24 and 48dB/Octave
FREQUENCY RANGE: Off to 21.983.3KHz, 1/24 Octave
LOW PASS FILTER TYPE: Linkwitz-Riley, Bessel, Butterworth
SLOPE: 12, 18, 24 and 48dB/Octave
FREQUENCY RANGE: Off to 21.983.3KHz, 245 step increments
DELAY:
OUTPUT MAXIMUM DELAY: 682.5ms
INCREMENT: 20µs
INPUT and OUTPUT GAIN:
RANGE: +12/-40dB, 0.1dB increments
POLARITY 0 or 180 degrees (selectable in the Output Gain Stage)
COMPRESSOR/LIMITER:
THRESHOLD: -20dBu to +20 dBu, 1.0dB increments
RATIO: 1.2 :1 to Infinity (1.2, 1.5, 2., 3, 4, 6, 10, 20, Infinite:1)
ATTACK: 0.5 ms to 50 ms per dB
RELEASE: 10 ms to 1 sec. per dB
PROCESSOR:
INPUT A TO D: 24 bit
OUTPUT D TO A: 24 bit
PROCESSOR: 24 bit, 56 bit accumulator
SAMPLE RATE: 48 kHz
PROPAGATION DELAY: 1.46 ms
OTHER:
SIGNAL AND CLIP LEDs: Inputs: -20/Mute, -10, 0, +10, Clip (dBU or VU) Outputs: -20/Mute, -10, 0, Limit, Threshold, Clip (dBu or VU) RS232
CABLE DISTANCE: 1300ft (Max)
MIDI CABLE DISTANCE: 500ft (Max)
POWER REQUIREMENTS: 80 - 260VAC, 30W max
SHIPPING WEIGHT: 10lbs
DIMENSIONS: 19.0”L x 1.75”H x 6.0”D
I/O CONNECTORS: Euroblock
ENVIRONMENTAL: 40-120 deg. F, noncondensing Notes: 0dBu = 0.775V RMS
