Custom Pre-order! Stratocaster HSH Black 5-Way Autosplit Coil Split

**NEW Upgrade options**:

• Seymour Duncan bridge pickup humbucker or single coil $69
• Seymour Duncan middle pickup humbucker or single coil $69
• Seymour Duncan neck pickup humbucker or single coil $69
• Pre-wired/loaded pickguards: If you want to do a drop-in loaded pickguard I would discount the listing by $80 and either you mail it to me, or we put the expense in the listing for me to buy it and have it sent here for installation.

This is a pre-order for this guitar to be built and shipped to you within 28 days. You can order it as-is, or request any upgrades or modifications prior to your purchase.

This is 100% payment for this guitar. Guitar will ship after being built.

Estimated time of completion is 28 days. 90% of the time it ships on the 27th or 28th day. 8% of the time it ships earlier. 2% of the time it's late due to unforeseen delays. I will be available at all times for updates and keep you informed of early delivery or delays. Changes can be made before and during build so long as price and payment are agreed upon and completed.

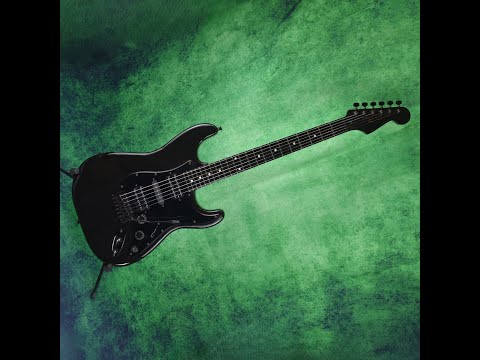

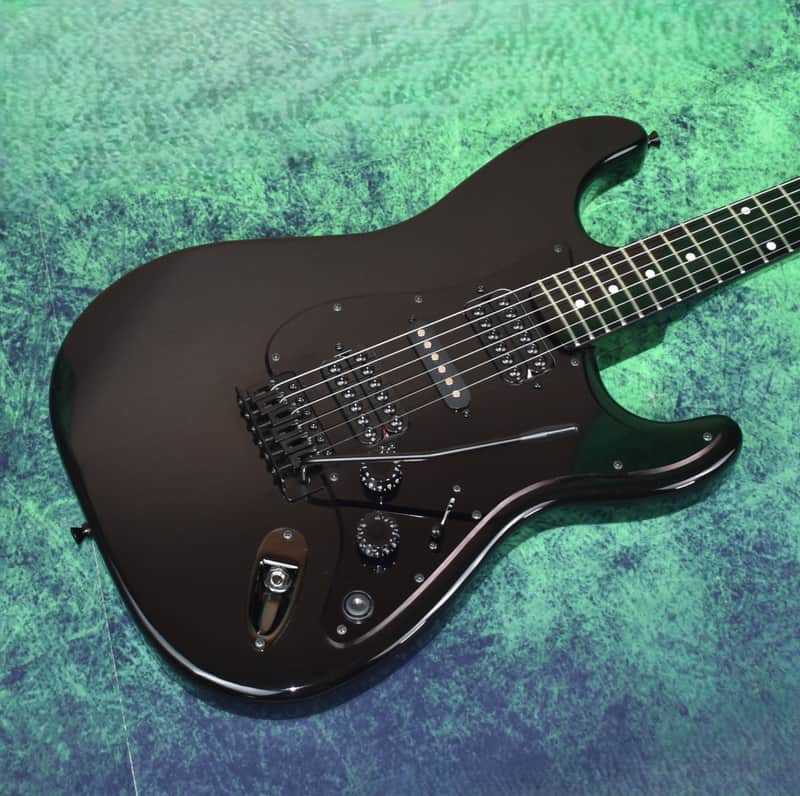

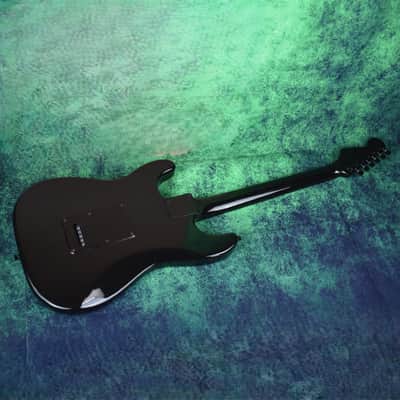

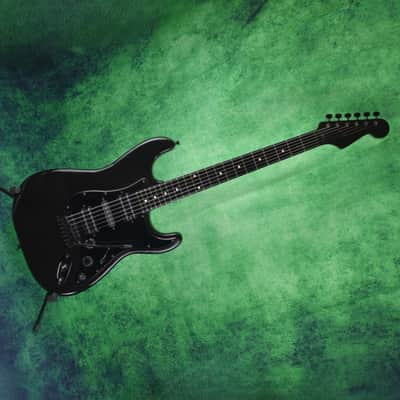

The guitar that is pictured is one that has already been built and sold.  Color or wood grain may vary slightly from that in the picture. Binding may or may not be present. You are welcome to discuss with me prior to purchase and during the build if any of these factors are important to you. If there are any drastic differences, you will be notified.

**Drop in loaded pickguards are an option too. If you have one already in mind we can discuss prior to the sale.**

General Overview:

• Humbuckers have autosplit as well as always split options
• Full level, crown, polish, set-up, playability test, inspection and packaging by a certified luthier
• Strings: D'Addario Nickel Wound 9-42 EXL120

About the Wiring:
HSH with Autosplit in Positions 2 & 4 (Neck outside coil & bridge inside coil.)

This wiring setup gives you the Bridge pickup as a humbucker in Position 1, but as a single coil in Position 2. Similarly, the Neck pickup is a humbucker in Position 5, but a single coil in Position 4. Position 3 is the Middle pickup by itself.

A push-push tone pot gives the option of always having the Neck & Bridge pickups as single coils.

Position #4 is hum-cancelling whether push-push is up or down.

5-Way Switching:

Push-push Down:

1. Bridge Humbucker  -- (Resistance 15.2 ohms)
2. Middle & Bridge Inside Coil (Parallel) -- (Resistance 2.6 ohms)
3. Middle -- (Resistance 4.0 ohms)
4. Middle & Neck Outside Coil (Parallel)(Hum-cancelling)  -- (Resistance 2.0 ohms)
5. Neck Humbucker  -- (Resistance 7.9 ohms)

Push-push Up:

1. Bridge Inside Coil  -- (Resistance 7.4 ohms)
2. Middle & Bridge Inside Coil (Parallel) -- (Resistance 2.6 ohms)
3. Middle -- (Resistance 4.0 ohms)
4. Middle & Neck Outside Coil (Parallel)(Hum-cancelling)  -- (Resistance 2.0 ohms)
5. Neck Outside Coil -- (Resistance 3.9 ohms)

Body:

• Black High Gloss Polyester Finish Body

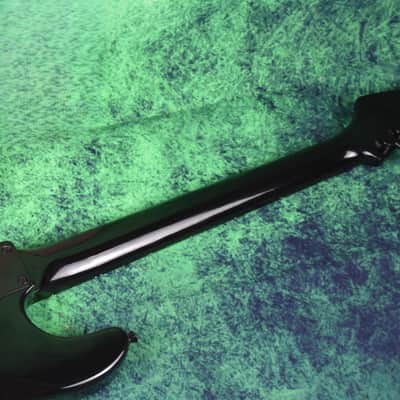

Neck:

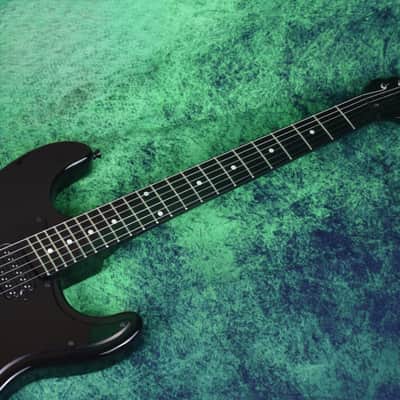

• Maple, "C" Shape neck 22 medium/jumbo frets, gloss black finish
• Scale length 25.5"

Hardware:

• Black Modern Tremolo Bridge with 6 individual saddles
• Black Tremolo Arm
• Black Knobs and Black switch tip
• Black output jack plate
• Black strap pin buttons

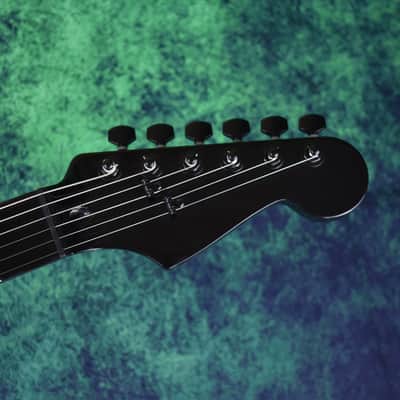

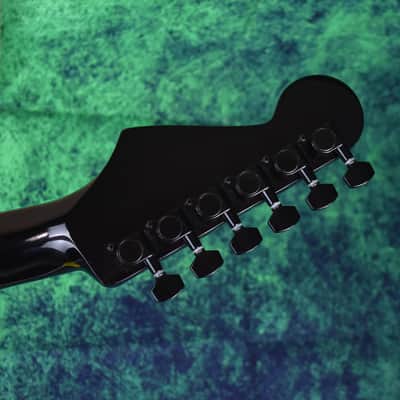

• Black tuners

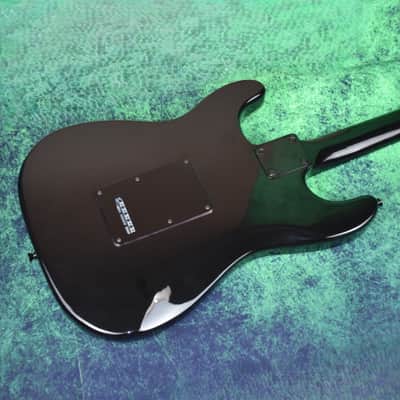

• Black neck plate
• Black roller string trees

Electronics:

• Black Invader Style Bridge Humbucker Pickup 15k(Exact measure 15.2 ohms).
• Black Single Coil Middle Pickup 4k (Exact measure 4.0 ohms).
• Black Invader Style Neck Humbucker Pickup 8k(Exact measure 7.9 ohms).
• 5-Way Blade Switch
• 500K CTS Volume Potentiometer Audio Taper
• 500K Push/Push Tone Potentiometer Audio Taper
• Third potentiometer position is filled with a plastic spacer. However, you have the option to upgrade to a killswitch there or utilize it with a different wiring scheme.
• 0.022uF Polyester Film Tone Capacitor
• All cavities have been shielded and insulated. All grounding, shielding, insulation, and pickup phasing/polarity have been well thought out and executed.

You have OPTIONS.  Just message before the sale if you want anything changed about the guitar.  (Pickups, hardware, new wiring/signal chain, etc.) You will be notified if the change can be made, time to complete, cost if any, and pictures provided as appropriate.  Get the guitar YOU want.  Message today!

Available Options:

• Add Tesi kill switch 24mm white $49 (Can be done within 24 hours prior to shipping.)
• Change to Single Coil (SSS) wiring (or any other configuration) for free (This changes all pickups to single coil. Will be wired in the classic Stratocaster style format unless you request any modifications.)
• Add padded gigbag $19
