Charvel Pro-Mod San Dimas Bass PJ IV MAH - Bass Guitar  - Satin Ferrari Red

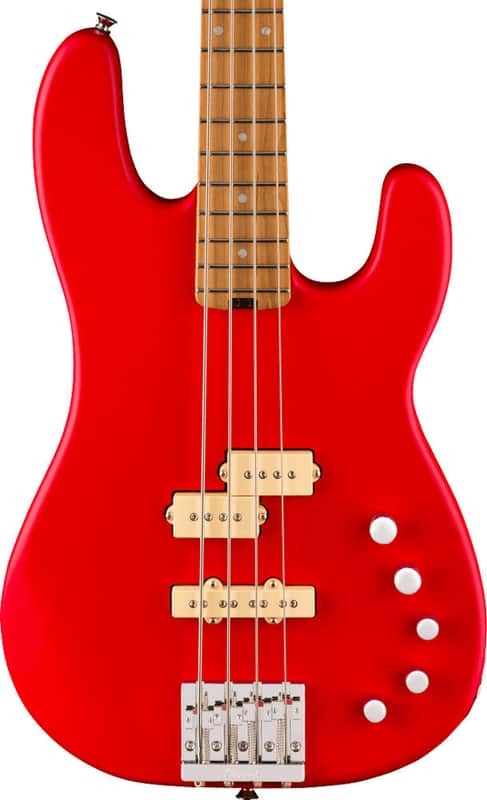

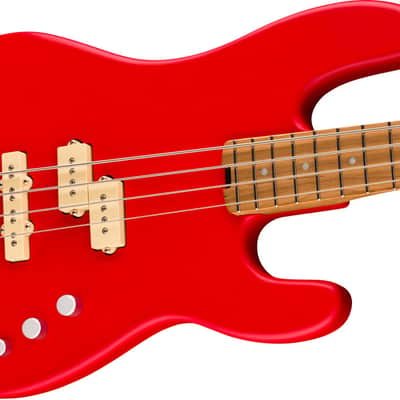

The sleek body shape is a familiar one - straight from the original Charvel San Dimas basses of late 1970s, with the deeper cutaway that gave adventurous bassists effortless upper-register access.

The super-thin bolt-on maple Charvel speed neck is crafted in the original style, with a gorgeous caramelized treatment, graphite reinforcement and heel-mount truss rod wheel for easy adjustment. The 12”-16” compound radius caramelized maple fingerboard gradually flattens from nut to heel for fast, smooth playing, and has rolled edges, 20 jumbo frets and Luminlay side dots.

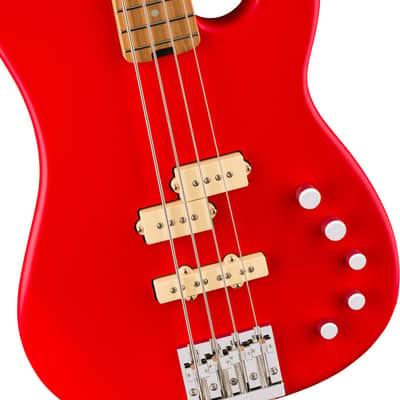

And like the originals, the Pro-Mod San Dimas Bass PJ IV MAH features the powerhouse voice of DiMarzio pickups - a Model J at the bridge for well-rounded punch and a Model P in the middle for warm and fat tone with a mid-range growl when pushed. Versatile electronics include three-band active EQ, pickup blend control and a master volume control with push/pull selector. The push/pull selector eliminates the risk of losing sound due to a dead battery as a quick pull on the volume knob bypasses the EQ’s active circuit and regains sound from the bass without the use of battery power.

A Charvel HiMass bridge, Graph Tech TUSQ XL nut and open-gear tuners combine for stellar tuning stability with improved note punch and sustain.

This 4-string bass is presented in a Natural Mahogany and Satin Ferrari Red finishes with chrome hardware, cream pickup covers and licensed Fender Precision Bass headstock shape.

Features

• Genuine Mahogany body

• Caramelized maple neck

• 12”-16” compound radius caramelized maple fingerboard

• DiMarzio pickups

• Luminlay side-dots

• Volume

• Blend

• 3-band EQ

• Charvel Hi-Mass bridge

Specs

General

• SERIES:  Pro-Mod
• ORIENTATION:  Right-Hand
• COLOR:    Satin Ferrari Red
• COUNTRY OF ORIGIN:  MX

Neck

• HEADSTOCK:  Licensed Fender® Precision Bass®
• NECK MATERIAL:  Caramelized Maple
• NECK FINISH:  Hand-Rubbed Satin Urethane
• NECK SHAPE:  Speed Neck with Rolled Fingerboard Edges
• NECK CONSTRUCTION:  Bolt-On with Graphite Reinforcement
• FINGERBOARD RADIUS:  12"-16" Compound Radius (304.8 mm to 406.4 mm)
• FINGERBOARD MATERIAL:  Caramelized Maple
• POSITION INLAYS:  Cream Dot
• SIDE DOTS:  Luminlay®
• NUMBER OF FRETS:  20
• TRUSS ROD:  Dual-Action with Wheel
• TRUSS ROD NUT:  Heel-Mount Truss Rod Adjustment Wheel
• STRING NUT:  Graph Tech® TUSQ® XL
• NUT WIDTH:   1.5" (38.1 mm)
• NUT MATERIAL:  Graph Tech® TUSQ® XL

Body

• BODY:   Mahogany
• BODY FINISH:  Gloss
• BODY SHAPE:  San Dimas® Bass
• BODY STYLE:  Solid Body
• BODY MATERIAL:  Mahogany

Hardware

• BRIDGE:  Charvel® HiMass™
• PICKGUARD:  None
• PICKUP COVERS:  Cream
• CONTROL KNOBS:  Dome-Style
• HARDWARE FINISH:  Chrome

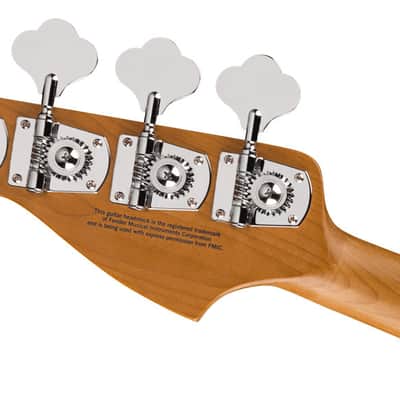

• TUNING MACHINES:  Charvel® Open-Gear
• STRING TREES:  Vintage-Style Disc
• STRINGS:  Nickel Plated Steel ( .045-.100 Gauges)
• NECK PLATE:  4-Bolt  Standard
• STRAP BUTTONS:  Standard

Electronics

• BRIDGE PICKUP:  DiMarzio® Model J™ DP123
• MIDDLE PICKUP:  DiMarzio® Model P® DP122
• PICKUP CONFIGURATION:  PJ
• CONTROLS:  Volume (Push/Pull Selector for Active/Passive Options), Blend, 3-Band EQ (Active Only)
• SWITCHING:  None
• SPECIAL ELECTRONICS:  Active Electronics

Miscellaneous

• COMMODITY CODE:  9207901000

Accessories

• SADDLE HEIGHT WRENCH:  N/A

Measurements

• DIMENSIONS:  4.50x15.20x59.50 IN
• SHIPPING WEIGHT:  11.75 LB
• FRET SIZE:  Jumbo
• SCALE LENGTH:  34" (86.36 cm)
• SHIPPING LENGTH:  59.50 IN
• SHIPPING HEIGHT:  4.50 IN
• SHIPPING WIDTH:  15.20 IN
