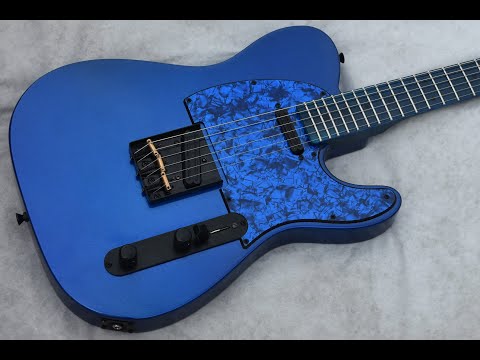

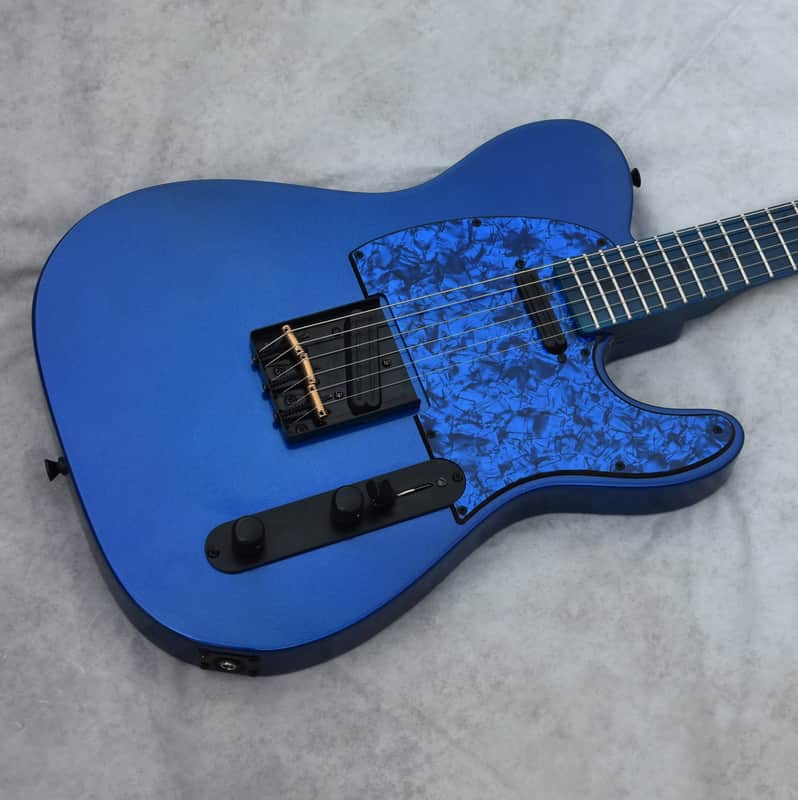

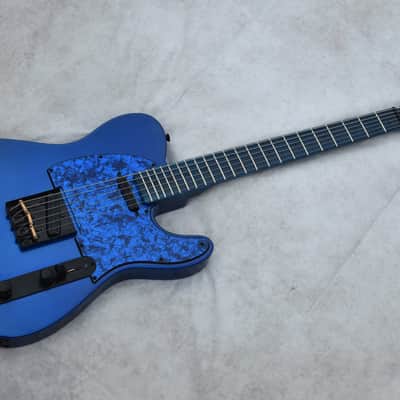

Custom Pre-order! Telecaster HH 2025 Black on Metallic Blue Hot Rails 4-Way Switch

This is a pre-order for this guitar to be built and shipped to you within 28 days. You can order it as-is, or request any upgrades or modifications prior to your purchase.

This is 100% payment for this guitar. Guitar will ship after being built.

Estimated time of completion is 28 days. 90% of the time it ships on the 27th or 28th day. 8% of the time it ships earlier. 2% of the time it's late due to unforeseen delays. I will be available at all times for updates and keep you informed of early delivery or delays. Changes can be made before and during build so long as price and payment are agreed upon and completed.

The guitar that is pictured is one that has already been built and sold.  Color or wood grain may vary slightly from that in the picture. Binding may or may not be present. You are welcome to discuss with me prior to purchase and during the build if any of these factors are important to you. If there are any drastic differences, you will be notified.

Switching Positions as Follows:
1. Bridge
2. Bridge in parallel with Neck
3. Neck
4. Neck in series with Bridge

General Overview:

• Additional position for both pickups in series (Maximum pickup output)
• Humbuckers individually (partial) split
• Full level, crown, polish, set-up, playability test, inspection and packaging by a certified luthier
• Strings: D'Addario Nickel Wound XL 10-46 EXL110-10P

Body:

• Alder Body with Metallic Blue Gloss Polyester Finish

Neck:

• Scale length 25.5"
• Maple Neck with Blue Gloss Finish and Blue Gloss Fingerboard.
• 22 medium jumbo frets

Hardware:

• Black Wilkinson M-Series Bridge with compensated saddles and option for top-load
• Black knobs and Black switch tip
• Black output jack plate
• Black strap pin buttons
• Black Wilkinson tuners
• Black neck plate
• Black string ferrules
• Black easy-glide roller string trees

Electronics:

• Alnico 5 Dual Rail Humbucker Bridge Pickup 12k (Exact measure 12.0 ohms).
• Alnico 5 Dual Rail Humbucker Neck Pickup 7k (Exact measure 7.1 ohms).
• 500K Volume/Tone Potentiometer Audio Taper Push/Pull or Push/Push (lmk if you have a preference)
• Oak Grigsby 4-Way Blade Switch
• .022uf Mallory 400v Tone Capacitor
• Additional position for both pickups in series (Maximum pickup output)
• Humbuckers individually (partial) split
• All cavities have been shielded and insulated. All grounding, shielding, insulation, and pickup phasing/polarity have been well thought out and executed.

You have OPTIONS.  Just message before the sale if you want anything changed about the guitar.  (Pickups, hardware, new wiring/signal chain, etc.) You will be notified if the change can be made, time to complete, cost if any, and pictures provided as appropriate.  Get the guitar YOU want.  Message today!

**NEW Upgrade options**:

• Seymour Duncan bridge pickup humbucker or single coil $69
• Seymour Duncan neck pickup humbucker or single coil $69

Full-spectrum Resistance 19 ohms to 3 ohms: Guitar has nine (9) distinct resistance settings with mix and match of push-push coil splits. Positions and resistance values are charted below at the very bottom. High-output position number 4 with bridge and neck wired in series. Coil splits are "partial" coil splits modeled after PRS "partial" coil splits to retain oomph, output, and tone. Capable of chicken-pickin' country, jazz, smooth blues, roaring rock, to stoner doom metal, the sonic possibilities are endless. Full detailed description of "Broad Spectrum Wiring" can be viewed on "Werner Guitars" Facebook page.

Detailed Switching Positions as Follows:

1. Bridge (Resistance 12.0 ohms)

with (partial) coil split (tone knob only) 7.6 ohms

with (partial) coil split (tone & volume knob) 3.3 ohms

with (partial) coil split (volume knob only) 3.9 ohms

2. Bridge in parallel with Neck (regular Tele position) (Resistance 4.5 ohms)

with (partial) coil split (tone knob only) 3.7 ohms

with (partial) coil split (tone & volume knob) 3.0 ohms

with (partial) coil split (volume knob only) 3.5 ohms

3. Neck (Resistance 7.1 ohms)

with (partial) coil split (volume knob only) 4.9 ohms

4. Neck in series with Bridge (Resistance 18.7 ohms)
with (partial) coil split (tone knob only) 14.5 ohms

with (partial) coil split (tone & volume knob) 5.4 ohms

with (partial) coil split (volume knob only) 5.5 ohms

Full range of resistance:

18.7 ohms

14.4 ohms

12.0 ohms

7.6 ohms

7.1 ohms

5.5 ohms

4.9 ohms

3.9 ohms

3.0 ohms
