AniModule LogicOgic Eurorack Gate Inverter Flip Flop OR and AND Logic Gate Module

Animodule LogicOgic Eurorack Module - Excellent Condition, Original Owner, Box & Extras Included

I'm selling my Animodule LogicOgic, a compact 8HP Eurorack module that’s a dual logic processor with chained functions for complex gate and trigger manipulation. As the original owner, I’ve used it lightly, and it’s in excellent condition. It comes in its original box with the power cable, printed user guide, and Animodule stickers, ready to add versatile logic operations to your modular setup.

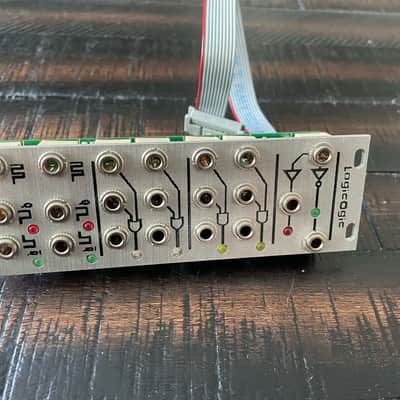

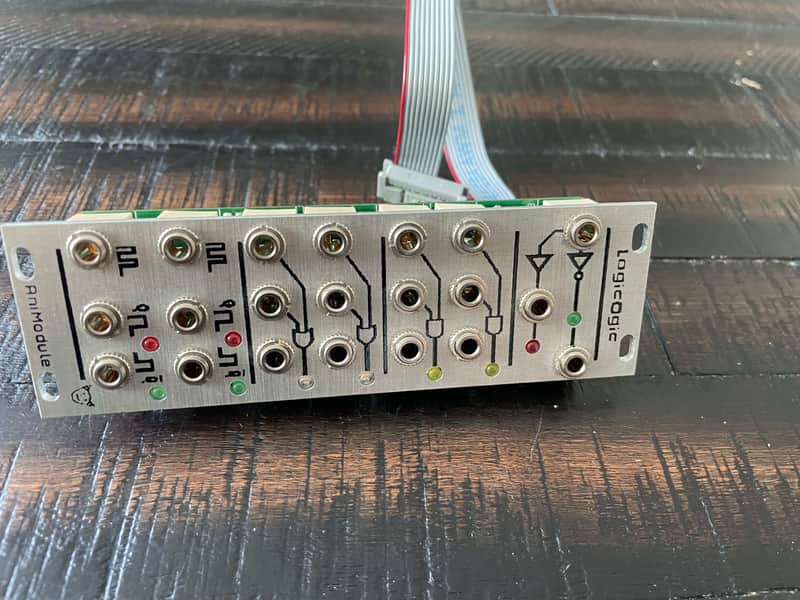

The LogicOgic features two sections, each with three inputs and two logic functions. The top section performs OR and AND operations, while the bottom handles XOR and Flip-Flop (with Set/Reset inputs). Each section outputs its results simultaneously, and the bottom section’s inputs are normalled to the top’s outputs, allowing chained operations for up to six-input logic processing without additional patching. With gate outputs at +8V and input thresholds of ~2.2V (or ~0.7V with a jumper), it’s ideal for combining triggers, gates, or CV to create intricate rhythmic patterns, syncopated sequences, or conditional signals. Perfect for driving sequencers, drum modules, or other logic-dependent patches.

Key features:

• Dual logic processor: OR/AND (top) and XOR/Flip-Flop (bottom) with simultaneous outputs
• Chained operation via normalling for up to six-input logic processing
• +8V gate outputs, ~2.2V input threshold (or ~0.7V via jumper)
• Compact design, 8HP width, 30mm depth, +12V: 35mA, -12V: 0mA
• Designed and built in the USA

This LogicOgic has been well-maintained and is ideal for anyone seeking a powerful, compact logic module for their Eurorack system. Questions? Feel free to message me!
