Overview

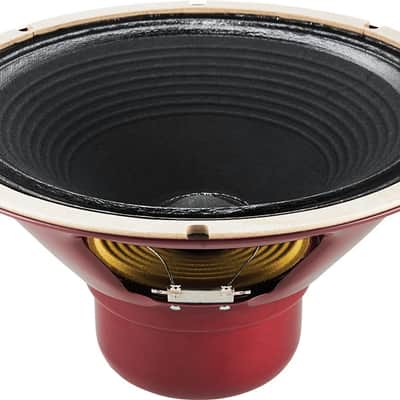

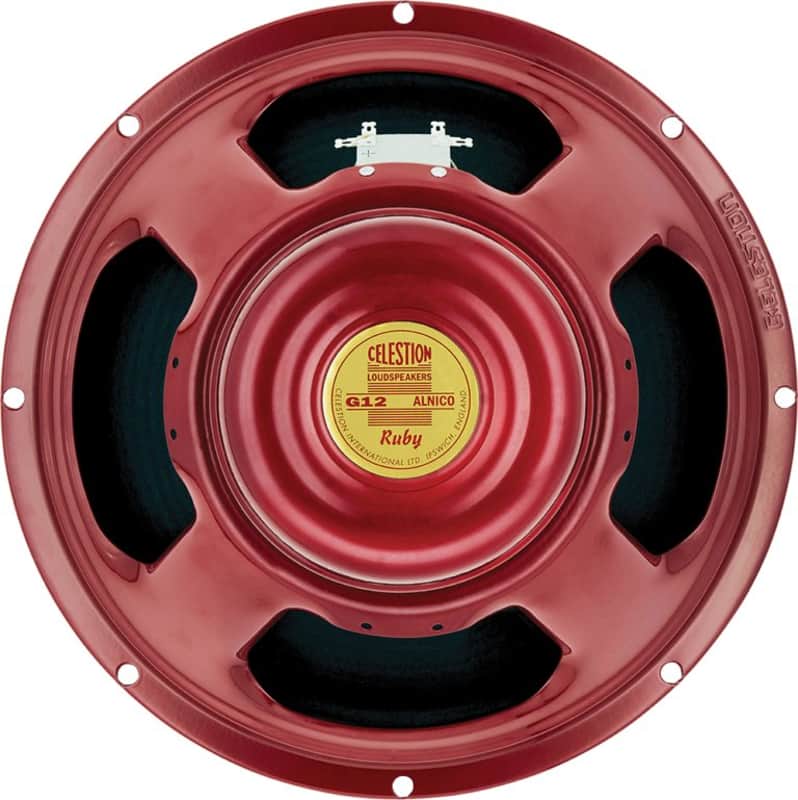

The Celestion Ruby Alnico 8 Ohm 35W Guitar Speaker (Model T6388) is a premium 12-inch speaker designed to deliver rich, vintage tones. Crafted with an Alnico magnet, it offers a warm, musical sound with mellow highs and a smooth midrange, making it ideal for mid-powered amplifiers and combo setups. The Ruby's pressed steel chassis ensures durability, while its 35-watt power handling makes it suitable for various musical styles.

Features:

• 12-inch guitar speaker with Alnico magnet – Provides warm, vintage-style sound.
• 35-watt power handling – Ideal for mid-powered amplifiers and combo setups.
• 8 Ohm impedance – Compatible with a wide range of amplifier outputs.
• Pressed steel chassis – Ensures robust durability and reliability.
• Designed for vintage tone – Delivers warm lows, smooth mids, and mellow highs.

Specifications:

• Nominal Diameter: 12" (305mm)
• Power Rating: 35W
• Nominal Impedance: 8Ω
• Sensitivity: 100dB
• Chassis Type: Pressed steel
• Voice Coil Diameter: 1.75" (44.5mm)
• Voice Coil Material: Round copper
• Magnet Type: Alnico
• Frequency Range: 75Hz – 5kHz
• Resonance Frequency (Fs): 75Hz
• DC Resistance (Re): 6.7Ω
• Cut-Out Diameter: 11.1" (283mm)
• Overall Diameter: 12.2" (309mm)
• Magnet Structure Diameter: 5.0" (128mm)
• Mounting Slot Dimensions: 0.31" (7.9mm) Ø
• Mounting Slot PCD: 11.7" (297mm)
• Number of Mounting Slots: 8
• Overall Depth: 6.5" (165mm)
• Unit Weight: 9.3 lbs (4.2 kg)
