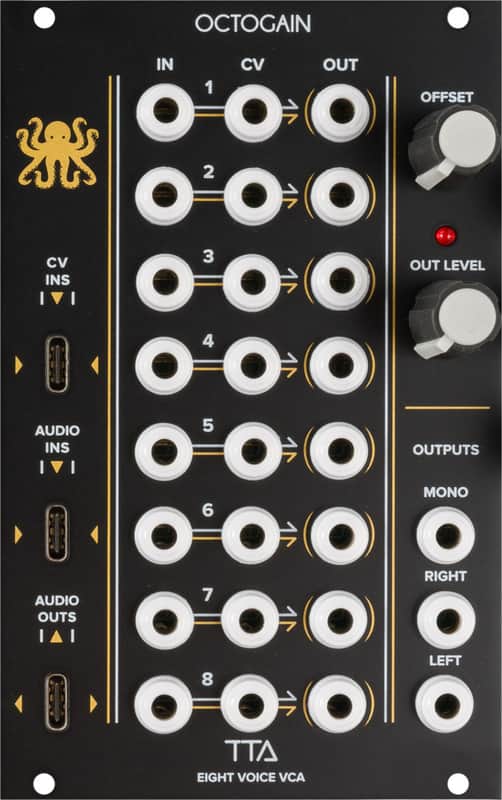

Tiptop Audio Octogain Analog Audio VCA Eurorack Synth Module, Black

Tiptop Audio's Octogain is an eight voice polyphonic analog audio VCA plus a eight voice mixer with master level control and odd/even (Right and Left) channels for a stereo output and clipping indicator. All eight VCA ins and outs are simultaneously available through Polytip jacks and 3.5mm jacks so the module can be used in a variety of ways both polyphonic or multi-voice monophonic. The fully analog audio path has linear CV control. CV inputs are 0-5V, typical audio input are 10Vp.p. A global Offset knob allow to open all VCAs manually or apply positive offset to incoming CV. The design uses very low power consumption with excellent audio quality using 80’s analog VCAs.

Product Features

• 26HP Module Bridges ART and Eurorack Formats for Multimodal Modular Mixing
• 8-ch. Architecture Includes Dedicated Per-Voice VCAs for Articulate Voicing and Discerning Separation
• Versatile Trio of Polytip Connectors Support Polyphonic-Audio I/O Processing, as Well as Polytip-Connected CV Inputs, for Multidimensional Modular-Synthesis Capabilities
• Per-Voice 3.5mm CV Inputs Let You Modulate Gain Values for Each Output
• Dedicated VCA Outputs Support Complex and Inventive Patching and Intramodular Routing
• Global Offset Control Allows You to Adjust All Incoming CV Signals Simultaneously
• 3 Summary Outputs Let You Choose Between All 8 Voices, All Even-Numbered Voices, or All Odd-Numbered Voices, for Enhanced Stereo Contouring

Attributes

• Color: Black

Technical Specifications

• Type: Synth Module
• Inputs: 8 x 1/8" (per voice), 1 x Polytip (proprietary)
• Outputs: 8 x 1/8" (per voice), 3 x 1/8" (mono, right, left), 1 x Polytip (proprietary), 8 x 1/8" Linear Gain Control CV, 1 x Polytip Linear Gain Control CV (proprietary)
• Processing Type: Analog
• Power Supply: Requires Eurorack Case and Power Supply
• Controller: Offset Knob, Output Level Knob
• HP Size: 26HP
