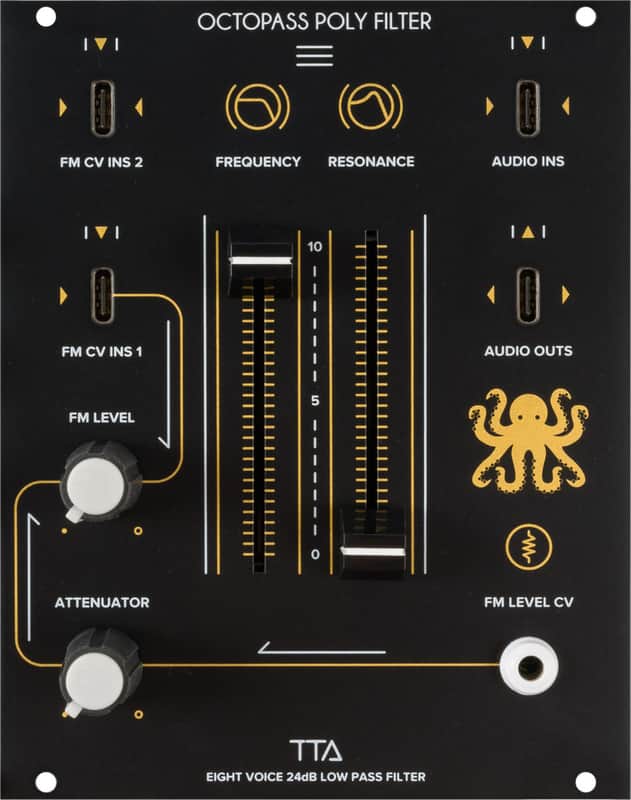

Tiptop Audio Octopass Octave Low Pass Filter Eurorack Synth Module, Black
This seller has not set a shipping cost for Lithuania. Please contact them to ask about shipping.
Only 1 left
Grab it before it's gone
30-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
Tiptop Audio's Octopass is an eight voice professional 24db/octave low pass filter based on the classic 2044 filter found in some of the most iconic and rare synthesizers of all times. All eight filters are fully analog with linear gain compensation of resonance and the desired analog tolerances between voices. Polyphonic patching is available for audio in and out as well as filter cutoff. A global frequency modulation CV using a mono jack can be used to modulate all eight incoming CVs of the Polytip cut off CV jack. As there are eight filters in the module special attention has been given to power consumption efficiency.
Product Features
- 8-Channel Polyphonic Lowpass Filter
- Based on the 2044 Design
- Cutoff Frequency and Resonance Sliders
- Polytip Audio Input and Output
- Polytip FM CV Inputs
- Global FM Level 3.5mm Input
Attributes
- Color: Black
Technical Specifications
- Type: Synth Module
- Inputs: 1 x Polytip (proprietary)
- Outputs: 1 x Polytip (proprietary), 1/8" FM Level CV, 2 x Polytip Cut-off Frequenct CV (in, out)
- Effects: Filter
- Processing Type: Analog
- Power Supply: Requires Eurorack Case and Power Supply
- HP Size: 20HP
| Condition | Brand New (New) Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more |
|---|---|
| Brand | |
| Model |
|
| Finish |
|
| Categories |
