Sync all your time-based devices, seamlessly move through preset setlists, and simplify tempo matching with the Canvas Clock! Designed for any kind of rig you throw at it and deeply customizable, users can put their full trust in the Clock to be an all-in-one tempo solution for their board. The Canvas Clock can interface to any device in your rig that accepts clock signal, whether MIDI, (via the ⅛ in or 5-pin MIDI ports) or analog (via the ¼ in jacks). Clock will send time signals for both MIDI and analog devices, and will continue to do so as you move through your song list or manually adjust the tempo. As you edit, save, and recall songs in real-time or via the online editor at walrusaudio.io, Clock will send your specific settings for whichever song you are currently on out to all of the time-based devices you are connected to.

Product Features

• Connect Your MIDI Devices For Easy Syncing with MIDI In/Thru
• Sync or Send Expression to Non-MIDI Pedals Using the 1/4" TRS Outputs
• Integrate Modular Synths and Other Gear with Sync In/Out
• Easily Configure and Update the Canvas via USB-C
• Manage Presets and Settings from Your Computer with the Web Interface
• Trigger Multiple Actions with One Button Using MIDI Macros
• Stay in Time with an Audible Click Thanks to the Metronome Out
• Control Your Modular Synths and CV Gear with CV Out
• Connect an Expression Pedal for Dynamic Control via Expression In

Attributes

• Color: Black

Technical Specifications

• Features: USB
• Dimensions: 2.3" H x 2.96" W x 4.84" D

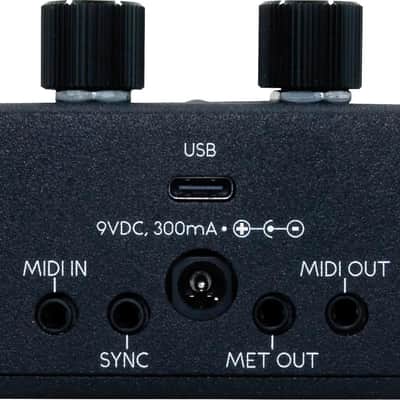

• Inputs: 2 x 1/8" TRS (Midi in, Sync), 1 x 5-pin DIN (Midi in)
• Outputs: 2 x 1/8" TRS (Midi out, Met out), 1 x 5-pin DIN (Midi out), 4 x 1/4" TRS
• MIDI: In, Out, USB
• Power Source: 9V DC 300mA Power Supply (sold separately)
• USB: 1 x USB-C
• Effects: Utility & Signal Router, Expression
• Processing Type: Digital
