All Iconic Modulation, One Pedal. Tired of switching between multiple modulation pedals? ELIPSE combines all your favorite modulation effects—tremolo, chorus, flanger, phaser, and rotary—into one seamless, expressive pedal. Forget preset-based limitations—ELIPSE lets you morph continuously between effects, unlocking hybrid sounds you’ve never heard before. The Mood Knob: A Modulation Playground. Seamlessly Morph Between Iconic Effects & New Sonic Frontiers. Unlike traditional pedals that lock you into fixed effects, ELIPSE’s MOOD knob gives you a continuous spectrum of vintage, modern, and hybrid modulation sounds. Tremolo & Harmonic Tremolo - From smooth Fender amp trem to rhythmic chopped tremolo effects. 1.) Rotary Speaker - Capture the iconic Leslie swirl, perfect for blues & organ-like textures. 2.) Chorus, Tri-Chorus & Vibrato - Dial in everything from subtle warmth to massive, wide stereo effects. 3.) Flanger & Phaser - Nail jet-engine swooshes & rich, evolving movement. 4.) Vibe & Psychedelic - Classic 60s warble with extra dimension. The SWIRL Knob, Unlock the Secret Weapon of Modulation. A Second Layer of Motion That Brings Your Sound to Life. What if your modulation effects had a second layer of movement? ELIPSE’s SWIRL knob introduces a slow, organic phaser that enhances any modulation effect. 1.) At mid-setting: Adds a slow-moving phaser layer for lush, 3D modulation. 2.) At max: Introduces an analog drive circuit to push your modulation into warm saturation. 3.) Want classic modulation tones? Leave SWIRL at minimum. With Kernom's Analog Morphing Core technology, ELIPSE integrates digital control over the analog circuit. Save and recall up to 128 presets, sync with DAWs, and control all parameters via MIDI CC (Tap Tempo & MIDI Clock support). Connect your expression pedal to the ELIPSE to control any combination of knobs and explore new possibilities. Use the internal preset accessible via the dedicated footswitch to have access to two sounds at any given time. Full MIDI compatibility with easy editing features. Save and recall up to 128 different presets.

Product Features

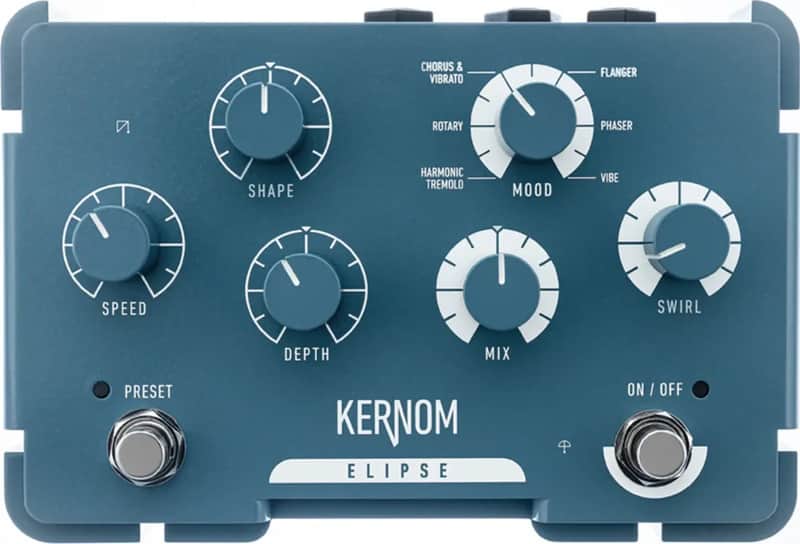

• SHAPE Modifies the Modulation Waveform, with a Classic Triangular Shape at the Mid-Position
• MOOD Provides Access to All the Classic and Iconic Modulation Effects with a Single Knob
• Continuous Control Allows You to Gradually Transition Between Classic Effects and Create Hybrid Combinations
• SPEED Adjusts the Modulation Rate, From Ultra Slow Texture to Fast Ringing Oscillations
• SWIRL Adds a Secondary Layer to the Main Effect, the First Part of the Knob’s Sweep Introduces a Slow Phaser, While the Second Part Adds a Drive Effect
• DEPTH Controls the Intensity of the Modulation Effect
• MIX Controls the Blend Between Wet and Dry Signals, at the Mid-Position, it Provides a 50/50 Mix for Classic Effects
• True Bypass with Relay
• Expression Pedal Input
• MIDI In and Out with Full Control Over All the Parameters

Attributes

• Color: Blue

Technical Specifications

• Dimensions: 2" H x 6.5" W x 4.4" D
• Weight: 1.8lbs
• Inputs: 1 x 1/4" TRS, 1 x 1/4" TS
• Outputs: 1 x 1/4" TS
• MIDI: In, Out
• Power Source: 9V DC Center Negative Power Supply (not included)
• Effects: Chorus, Vibrato, Tremolo, Rotary, Phaser, Flanger, Univibe, Expression
• Processing Type: Hybrid
• Presets: 1 Onboard Preset, 128 Presets Accessible via MIDI
• Power Usage: 150 mA (minimum); 200 mA or more (recommended)
