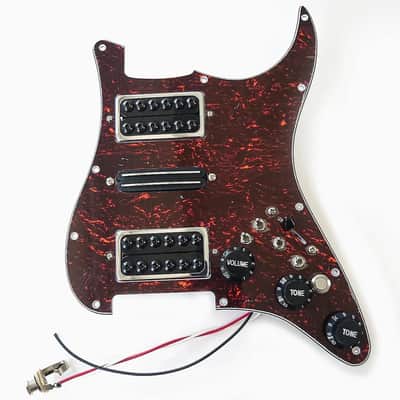

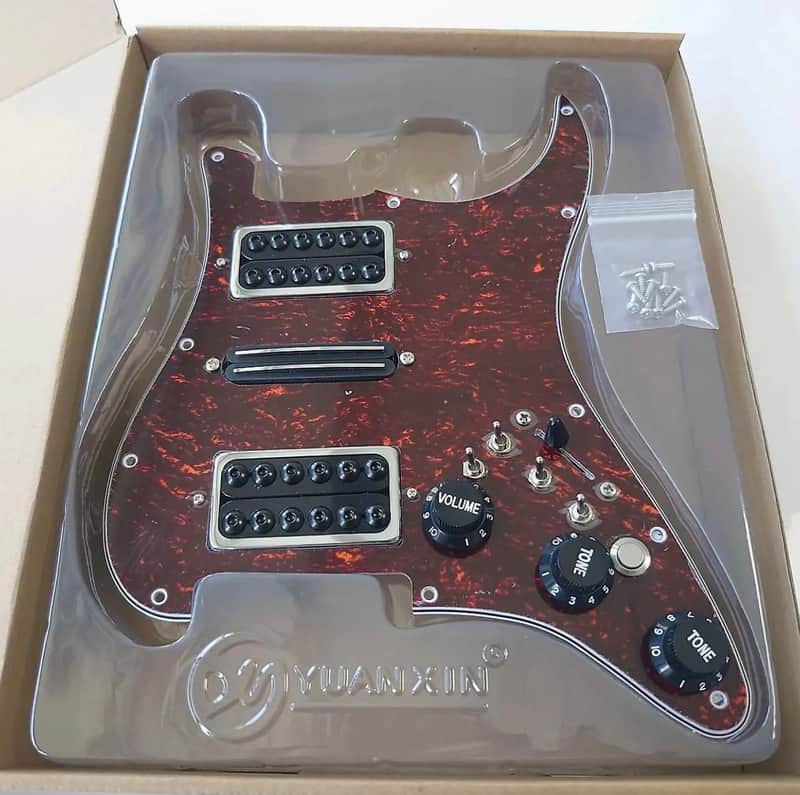

HSH Guitar Strat Style Red Tortoise Shell Loaded Prewired Pickguard, Multi Switches Wiring, Large Pole Pickups

HSH Guitar Strat Style Red Tortoise Shell Loaded Prewired Pickguard, Multi Switches Wiring, Large Pole Pickups

DC resistance (approx.): N: 7.5K; M: 12.K; B: 15.5K

Hole pitch: N: 50 mm M: 52 mm B: 52 mm

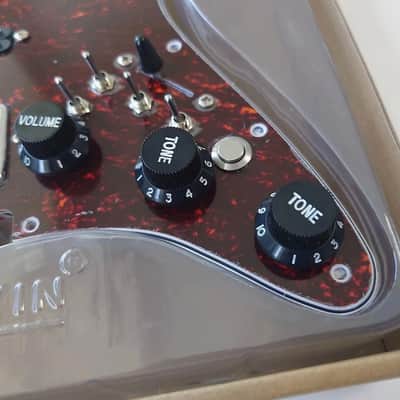

1X 5-way switch

1X Kill Switch (a.k.a. Output Mute Switch)

3X potentiometer 1V2T

4X Cut Single Toggle

2X Orange Caps

1X Output Jack

11x Screws

Important Tips

In addition to the original function,the four single-cut toggle bring new functions, as follows:

1.When the 5-speed switch is placed in the first position, the neck pickups work.

2.When the 5- speed switch is in the second position, the neck + middle pickups work together.

3.Each pickup has an independent single-cut (Push-Pull) switch. After turning on the single-cut switch, If the sound of single cut is not good, it will be better to use compensation switch.

4. Stainless Steel Kill Switch (a.k.a. Output Mute Switch) button allows you to quickly press the button for a stuttering effect during playing, which stops the sound output of the electric guitar but keeps the electrical signal generated, muting the guitar's sound without the need to adjust the volume knob or pedal.
