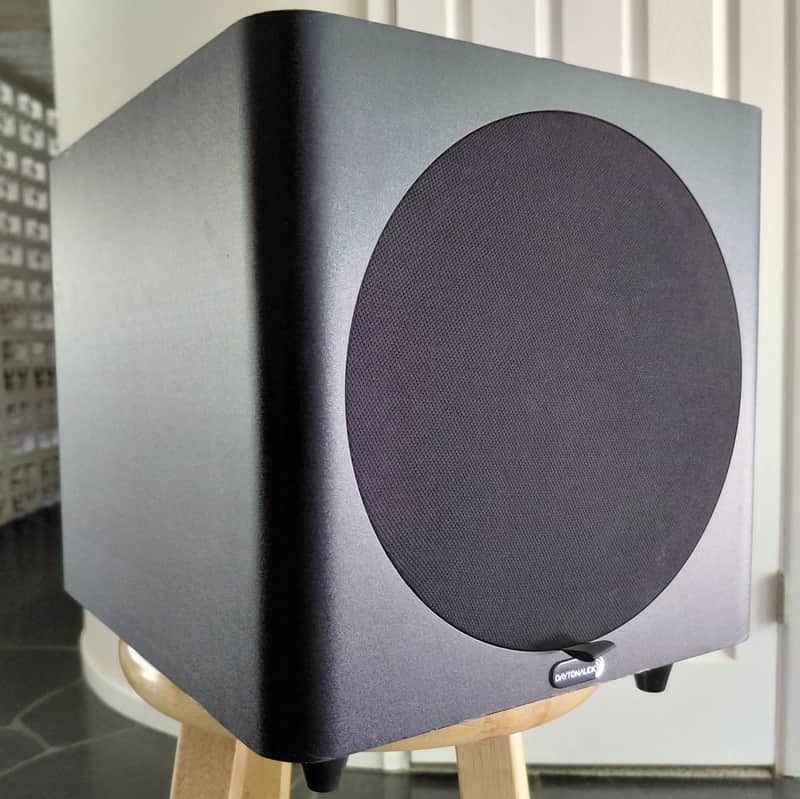

Dayton Sub-800, 8 inch 80 Watt Powered Subwoofer - Black

A great addition to a small studio space to augment those low frequencies that aren't being perceived in your main monitors. Dial in those sub-frequencies from 40Hz and up to 80Hz to get a full frequency representation (and since sub-frequencies are pretty much non-directional, you can place the unit in a convenient location). 80 watts is a perfect match for this 8 inch woofer and is plenty of power for a close-field monitoring situation. The unit retails for $139 on Amazon and has a 4.5 star rating; I'm offering it for $95. See below for more spec's and details.

Note: Because of its weight and the cost to ship, I can only accommodate local pickup in the Los Angeles and surrounding areas.

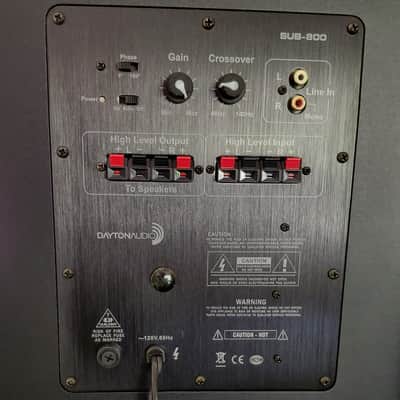

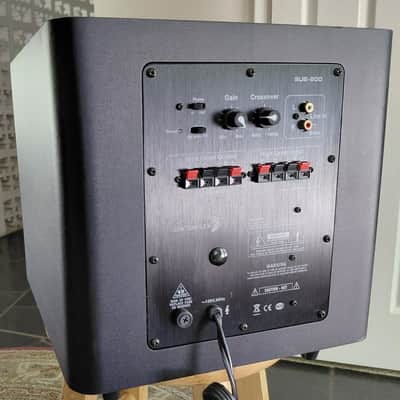

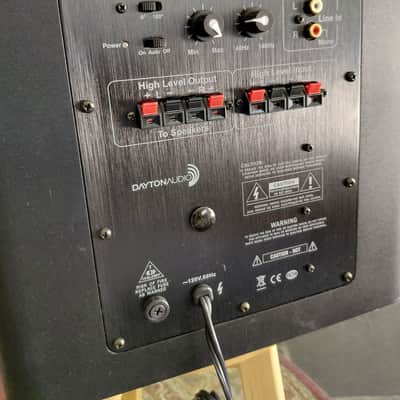

1. Line Level Inputs The line level inputs are used to connect pre-put or preamplifier outputs directly to the subwoofer amplifier's internal crossover. These inputs are summed to mono. This is the preferred way to connect the subwoofer amplifier. If you have a mono line level signal from a "Pro-Logic" or "Dolby Digital" receiver use the right "red" input. Note: If a LFE mono output is connected, set the crossover point to maximum.

2. High Level Inputs If preamplifier outputs are not available, use the high-level (speaker) inputs. The speaker level inputs can be connected directly to the amplifier by inserting the speaker wire.

3. High Level Outputs There are also high level outputs which can be used to connect to main speakers or to another powered subwoofer with high level inputs. Note: High level outputs are paralleled to the high level inputs with no high pass filter.

4. Crossover Frequency Control Continuously variable from 40 Hz at 12 dB/octave. Set the frequency control to where the audio does not sound "muddy", normally between 60-80 Hz. Note: If a LFE mono output is connected set the crossover point to maximum.

5. Gain Control Adjusts the output level of the subwoofer. Set the level to where the bass frequencies blend with the other speakers. Note: Most people have a tendency to set the level too high, which makes the audio sound "boomy".

6. Phase Switch Selectable between 0° and 180°. This assists subwoofer placement. The correct position will be the one that provides the most apparent bass output.

7. Power Switch (Auto On/Off) When the power is in the auto position, the amplifier will automatically turn on when a signal is present. Note: In auto/off mode, the power on LED is always on (red), even when amp is in rest mode (off). The power LED will turn green when the unit is activated.
