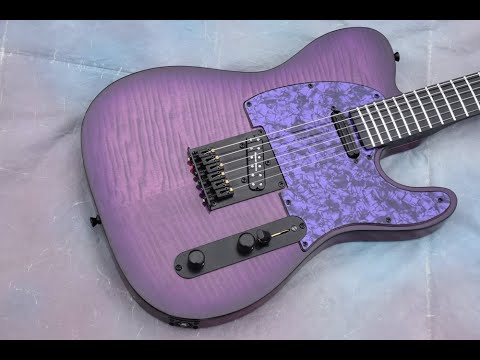

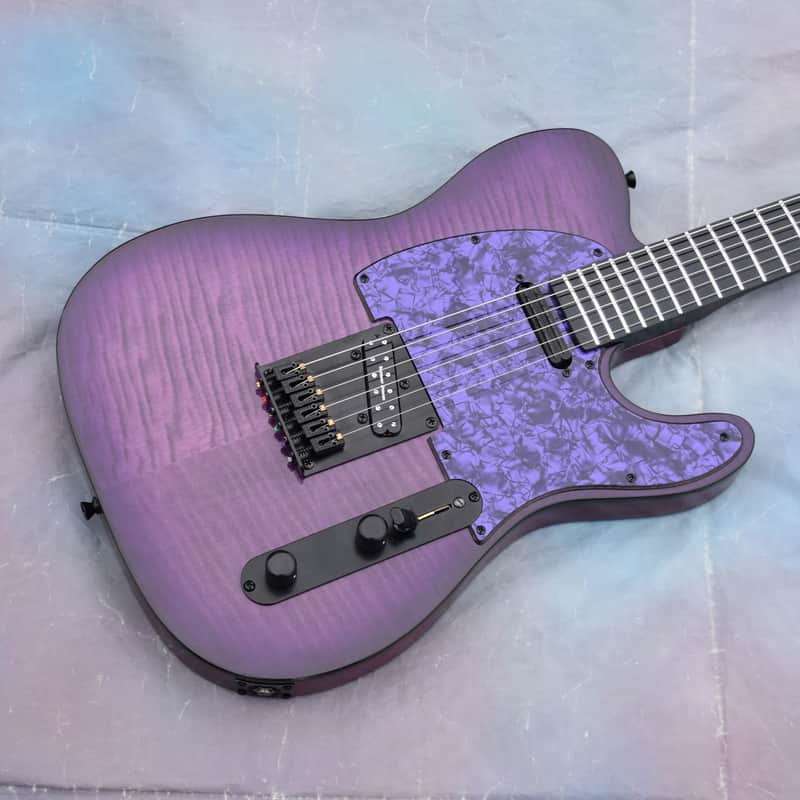

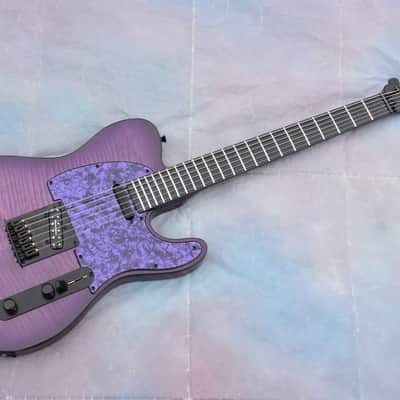

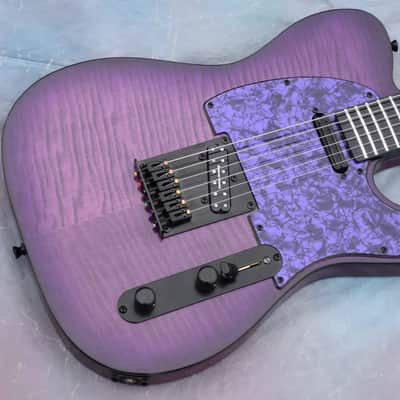

Custom Pre-order! Telecaster HH Purple Black 4-Way Coil Split Seymour Duncan Little 59 Top Load

Note: Guitar is listed as B-stock and reduced price due to a surface chip on the side of the neck pocket and a small finish dimple at the tip of the horn (shown in the last 2 pictures of the current body I have in stock. If you want an unblemished body, let me know and I can probably still get one). Guitar is otherwise new and looks, sounds, feels, and plays great!

This is a pre-order for this guitar to be built and shipped to you within 28 days. You can order it as-is, or request any upgrades or modifications prior to your purchase.

This is 100% payment for this guitar. Guitar will ship after being built.

Estimated time of completion is 28 days. 90% of the time it ships on the 27th or 28th day. 8% of the time it ships earlier. 2% of the time it's late due to unforeseen delays. I will be available at all times for updates and keep you informed of early delivery or delays. Changes can be made before and during build so long as price and payment are agreed upon and completed.

The guitar that is pictured is one that has already been built and sold.  Color or wood grain may vary slightly from that in the picture. Binding may or may not be present. You are welcome to discuss with me prior to purchase and during the build if any of these factors are important to you. If there are any drastic differences, you will be notified.

General Overview:

• Two demo videos of the guitar are available on "Werner Guitars" YouTube channel
• Seymour Duncan ST59-1 Little 59 Lead Bridge Pickup
• Additional position for both pickups in series (Maximum pickup output)
• Humbuckers individually (partial) split
• Broad-Spectrum Wiring. Full explanation of the wide range of tones is given below
• Full level, crown, polish, set-up, playability test, inspection and packaging by a certified luthier
• Strings: D'Addario Nickel Wound XL 10-46 EXL110
• Weight of the guitar is 7.8 pounds

Switching Positions as Follows:
1. Bridge (Resistance 17.4 ohms)
2. Bridge in parallel with Neck (regular Tele position) (Resistance 5.1 ohms)
3. Neck (Resistance 7.1 ohms)
4. Neck in series with Bridge (Resistance 23.9 ohms)

Body:

• Mahogany Body with Flamed Maple Veneer Top and High Gloss Polyester Finish

Neck:

• Maple, "C" Shape neck 22 stainless steel medium/jumbo frets with rounded edges, gloss black finish. 9.5" radius (1st fret 0.88", 12th fret 0.97")
• Scale length 25.5"
• Guyker Bone Nut

Hardware:

• Black top-load Modern Bridge with 6 individual roller saddles
• Black Knobs and Black switch tip
• Black output jack plate
• Black strap pin buttons
• Black Wilkinson EZ-LOK tuners
• Black neck plate
• Black roller string trees

Electronics:

• Seymour Duncan ST59-1 Little 59 Lead Bridge Pickup 17k (Exact measure 17.4 ohms).
• Artec Black Alnico 5 Dual Rail Neck Pickup 7k (Exact measure 7.1 ohms).
• 500K Push/Pull Alpha Volume/Tone Potentiometer Audio Taper
• Oak Grigsby 4-Way Blade Switch
• Panasonic ECQE1223JN3 .022uF 100V 5% Radial Metallized Polyester Tone Capacitor
• Pure Tone Black Nickel Mono output Jack with multi-contact dual tension grounds & dual positive tips for optimal signal, tone & lowest possible noise.
• All cavities have been shielded and insulated. All grounding, shielding, insulation, and pickup phasing/polarity have been well thought out and executed.

Full-spectrum Resistance 19 ohms to 3 ohms: Guitar has nine (9) distinct resistance settings with mix and match of push-push coil splits. Positions and resistance values are charted below at the very bottom. High-output position number 4 with bridge and neck wired in series. Coil splits are "partial" coil splits modeled after PRS "partial" coil splits to retain oomph, output, and tone. Capable of chicken-pickin' country, jazz, smooth blues, roaring rock, to stoner doom metal, the sonic possibilities are endless. Full detailed description of "Broad Spectrum Wiring" can be viewed on "Werner Guitars" Facebook page.

You have OPTIONS.  Just message before the sale if you want anything changed about the guitar.  (Color, pickups, hardware, new wiring/signal chain, etc.) You will be notified if the change can be made, time to complete, cost if any, and pictures provided as appropriate.  Get the guitar YOU want.  Message today!

Switching Positions as Follows:

1. Bridge (Resistance 17.4 ohms)

• with (partial) coil split (tone knob only) 10.6 ohms
• with (partial) coil split (tone & volume knob) 3.3 ohms
• with (partial) coil split (volume knob only) 3.7 ohms

2. Bridge in parallel with Neck (regular Tele position) (Resistance 5.1 ohms)

• with (partial) coil split (tone knob only) 4.3 ohms
• with (partial) coil split (tone & volume knob) 3.1 ohms
• with (partial) coil split (volume knob only) 3.5 ohms

3. Neck (Resistance 7.1 ohms)

• with (partial) coil split (volume knob only) 4.4 ohms

4. Neck in series with Bridge (Resistance 23.9 ohms)

• with (partial) coil split (tone knob only) 17.4 ohms
• with (partial) coil split (tone & volume knob) 4.5 ohms
• with (partial) coil split (volume knob only) 4.5 ohms

Full range of resistance:

• 23.9 ohms
• 17.4 ohms
• 10.6 ohms
• 7.1 ohms
• 5.1 ohms
• 4.5 ohms
• 3.7 ohms
• 3.3 ohms
• 3.1 ohms
