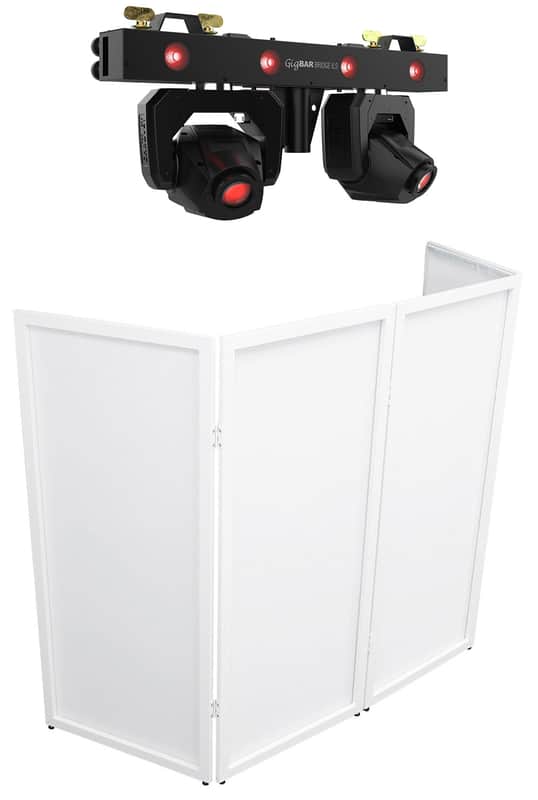

Package Includes:

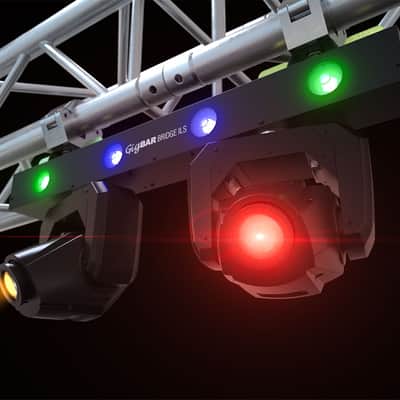

• (1) Chauvet DJ GIGBAR BRIDGE ILS Lighting Kit w/Moving Heads+Wash Lights+Bar+Bag
• (1) Rockville RFSSW White DJ Event Facade 80" x 44" Steel Frame Booth+Bag+Scrim

Features:

• 2-in-1 lighting system that includes moving heads and washes pre-mounted on a single bar
• Quickly and securely connect multiple fixtures with the built-in locking system
• Built-in D-Fi transceiver communicates DMX or ILS signals wirelessly
• Safely mounts onto truss or mobile tripods using the removable bracket
• Easy navigation and access all functions directly from the full-color LCD display
• Powerful moving heads with separate color and gobo wheels allow for creative programming
• Totem Mode keeps the moving heads focused on the dance floor
• Save time running cables and extension cords by power linking multiple units
• ILS compatibility for use in the ILS ecosystem

Specifications:

• DMX Channels: 3, 16 or 46 Optional Controllers: RF, Footswitch, ILS Command
• DMX Connectors: 3-pin XLR
• Pan and Tilt: 270°/540°
• Colors (moving head): 9 + open, split colors, continuous scroll at variable speeds
• Gobos (moving head): 9 + open, continuous scroll at variable speeds
• Light Source (moving head): 1 LED (cool white) 70W (3A), 50,000 hours life expectancy
• Light Source (wash): 4 LEDs (hex-color RGBAW + UV) 10W (1.3 A), 50,000 hours life expectancy.
• Strobe Rate: 0 to 20Hz
• Operating Frequency: 2.4 GHZ
• Beam Angle (moving head): 16°
• Beam Angle (wash): 22°
• Field Angle (wash): 38°
• Illuminance (moving head): 7,594 Lux @ 2 m (per head)
• Illuminance (wash): 375 lux @ 2 m (per section)
• Power Linking: 8 units @ 120 V; 13 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 191 W, 1.5 A @ 120 VAC, 60Hz
• Power and Current: 175 W, 1 A @ 230 VAC, 50Hz
• Fits Tripod Sizes: 1.5 in (37.4 mm)
• Max Unobstructed Distance (D-Fi): 600 ft (183 m)
• Approvals: CE, RoHS, FCC

All About Your RFSSW:

How To Set Up Your RFSSW:

How To Assemble Your RFSSW:

How To Light Your RFSSW:

What's In The Box:

• (4) Panels each 19.5" W x 44" H
• Stretchable White Scrims
• Carry Bag for easy Transport
• 3M Velcro

Description:

Foldable design for quick setup and break-down

Built-in scrim!
The stretch fabric panels are easily removable for cleaning. Our scrim can be washed by hand in cold water and laid down flat to dry. Our scrim is also a fire retardant.

Travel bag included
Transportation and storage is simple with the included carry bag.

Non-slip rubber feet for stability
We added rubber non-slip feet to our model. This adds more stability to the façade.

Features:

• Rockville RFSSW White DJ Event Facade with White Scrims and Travel Bag
• (4) Panels included-each are 19.5" W x 44" H
• Steel Frames
• Includes travel bag for easy transport
• Includes white lycra scrims
• Folds for easy break down and travel-no need to disconnect the hinges!
• 180-degree rotating panels allows each panel to be positioned to your liking with no limitations
• Scrim is fire retardant
• Scrim is easy to wash-simply wash with cold water and lay it flat to dry
• Non-slip rubber feet for stability
• Weight of Assembled Façade: 22 lbs.
• Total Dimensions: 80” W x 44” H
