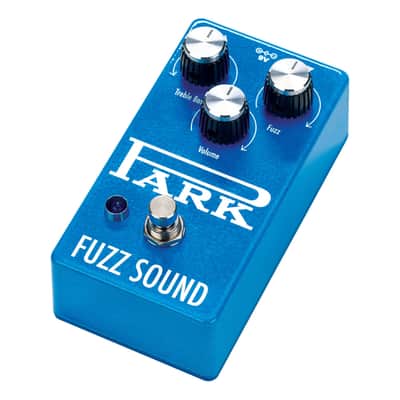

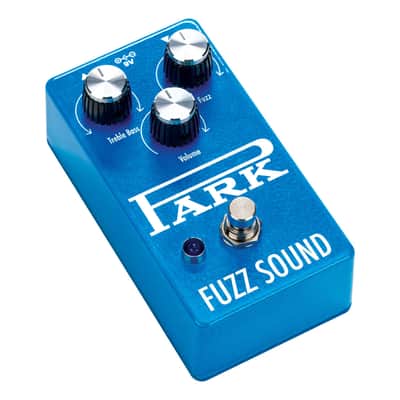

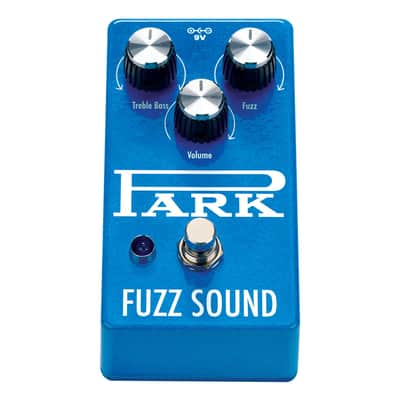

Park Amplifiers and EarthQuaker Devices have teamed up to bring you a faithful recreation of the original Park Fuzz Sound! While it retains the original sounds, there are several modern upgrades to improve performance, reduce extraneous background noise and add versatility:

Metal film resistors and caps for quieter performance

NOS matched germanium transistors for consistent, reliable tones

Wider fuzz range, more than twice the original

Smaller footprint, true bypass switching with LED indication and power supply compatible

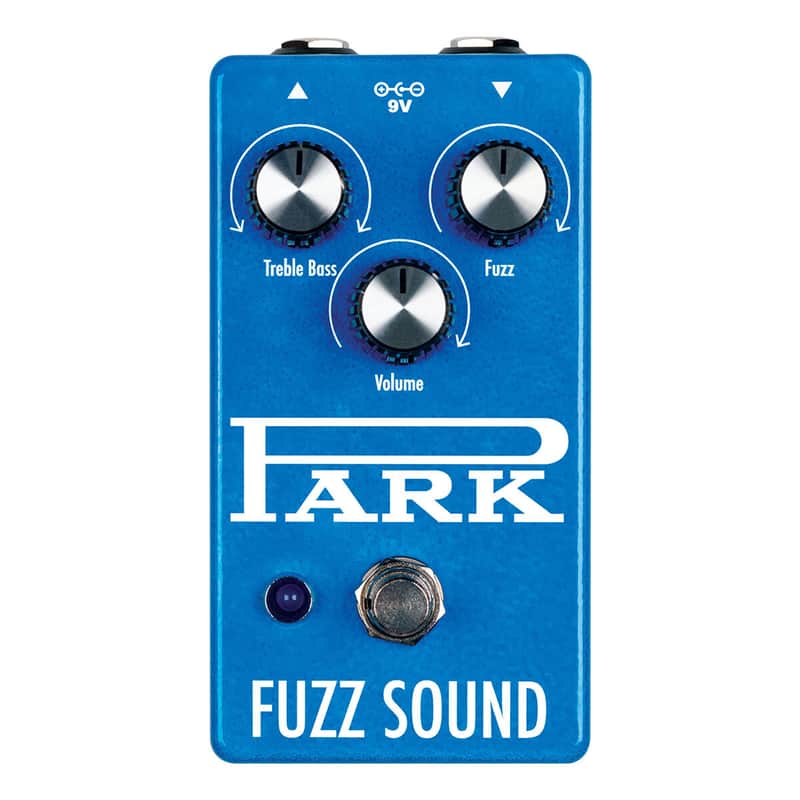

Controls

1. Volume: This is the level control, louder to the right, quieter to the left.

2. Treble/Bass: This is the tone control, thicker tones to the right, brighter to the left.

3. Fuzz: This is the gain control, more fuzz to the right, less to the left.

Dimensions

4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs

Current Draw

3 mA

Input Impedance

100 kΩ

Output Impedance

<1 kΩ

Switching

This device is true bypass and uses electronic relay-based switching. Audio will not pass without power.

Power

This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!
