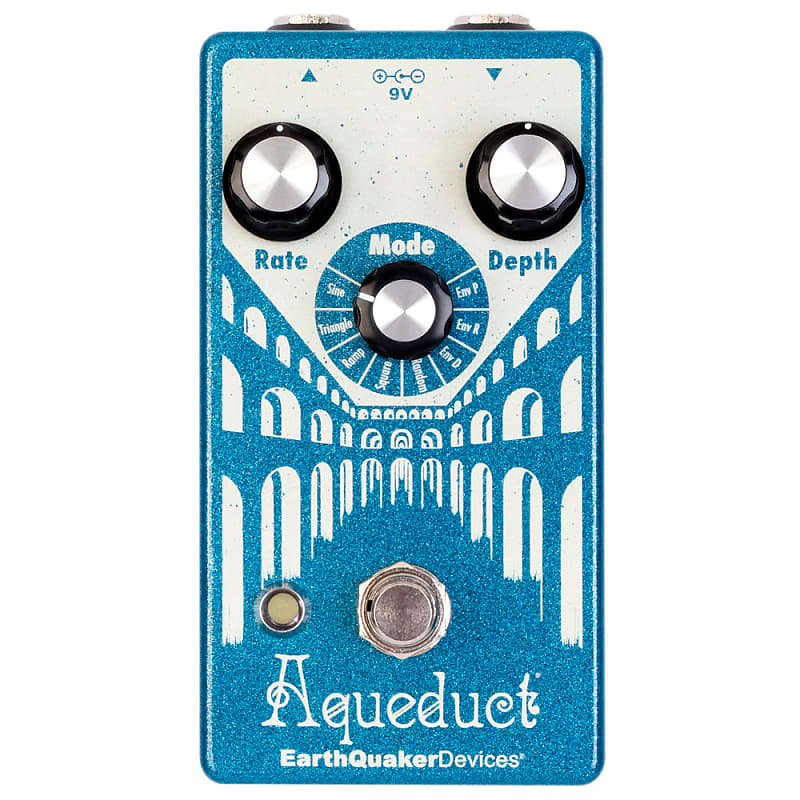

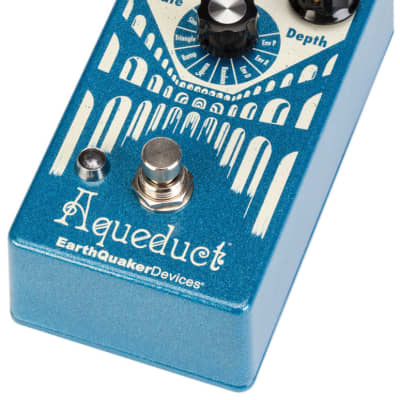

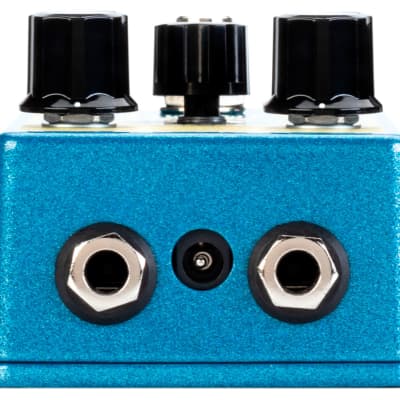

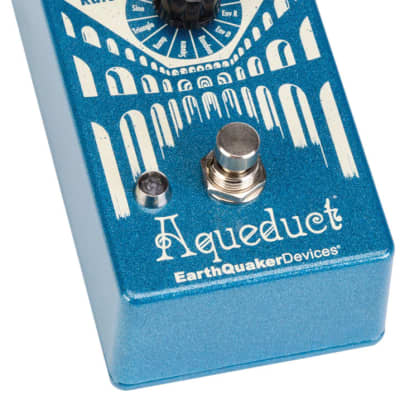

Aqueduct® is a vintage-inspired pitch vibrato with eight modulation modes delivering synth-like sonar pulses, touch-sensitive frequency modulation, gentle rolling pitch-wobbles, steady kosmische pulsations, rapid trills, slimy sonic squiggles, whammy bar wiggles, pitch bends, pseudo-flange, and anything else your pitch-warped brain can picture in your murky mind’s eye.

Dimensions

4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs

Current Draw

68 mA

Input Impedance

1 MΩ

Output Impedance

<10 kΩ

Flexi-Switch® Technology

This device features Flexi-Switch® Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

• For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

• For momentary operation, hold the footswitch down for as long as you’d like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

Power

This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!
