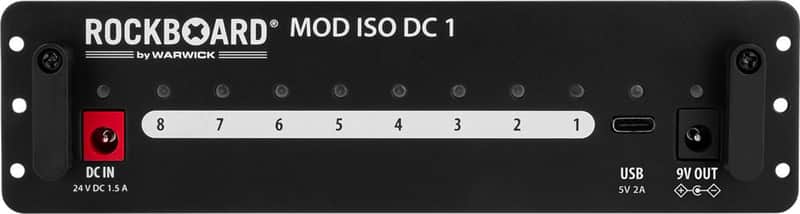

RockBoard Power MOD ISO DC 1 9-Output Power Supply

The Power MOD ISO DC 1 is a multi-power supply for effect pedals and provides up to 9 electrically isolated, highly filtered 9 VDC power connections and one 5V USB connection. It fits in a MOD slot on ROCKBOARD pedalboards, but, due to its removable front plate, it can also be used as a power supply for other pedalboards. The multi-power supply is designed to provide noiseless power to up to 9 effects pedals simultaneously. Sophisticated filtering technology effectively eliminates high-frequency noise. Separate short-circuit protection for each power slot protects the connected effects pedals from damage in the event of a short circuit. Separate LED indicate healthy connections for individual each slot. Should a short circuit occur, only the affected power slot is switched off, leaving the rest of the effects rig operational.

Product Features

• Multi-Power Supply for Effects Pedals
• Provides Transformer Isolated and Highly Filtered Power Slots
• Fits in a MOD Slot on RockBoard® Pedalboards
• Compatible with Most Other Pedalboards
• Detachable Front Plate for Mounting on Top or Underneath Pedalboards
• Advanced Filter Technology Prevents High Frequency Noise
• External Mains Transformer Prevents Low Frequency Interference
• Input Polarity Protection
• Individual Status LEDs and Short Circuit Protection for All Power Slots
• 2 x Strain Relief Clamps for Connected Cables

Attributes

• Voltage Output: 9V, 5V

Technical Specifications

• Dimensions: 1.85" H x 3.34" W x 6.9" L
• Outputs: 8 x 9 VDC, 300 mA each, 1 x 9 VDC, 500 mA,1 x 5 VDC USB-C, 2000 mA
• # of Outlets: 9
• Polarity: Center Negative
• Voltage Input: 24V
