Custom Footswitch for Mesa Boogie Mark V Five 35 Amplifier Hand-wired USA

Custom Handwired Pedalboard-friendly Footswitch with 4 Switches and 4 LED's fully compatible with the Mesa Boogie MARK V 35 AMPLIFIER. Replaces the OEM footswitch.

Watch video for operation and LED colors.

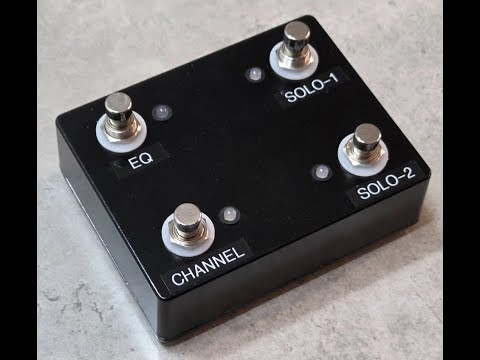

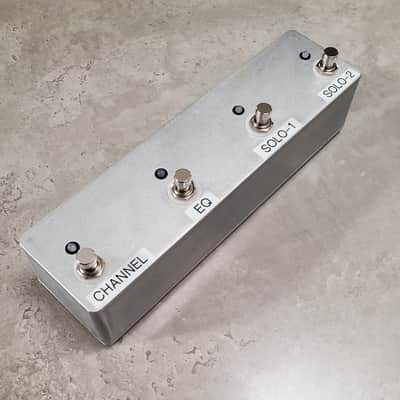

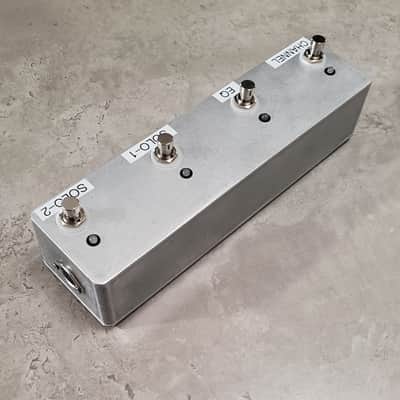

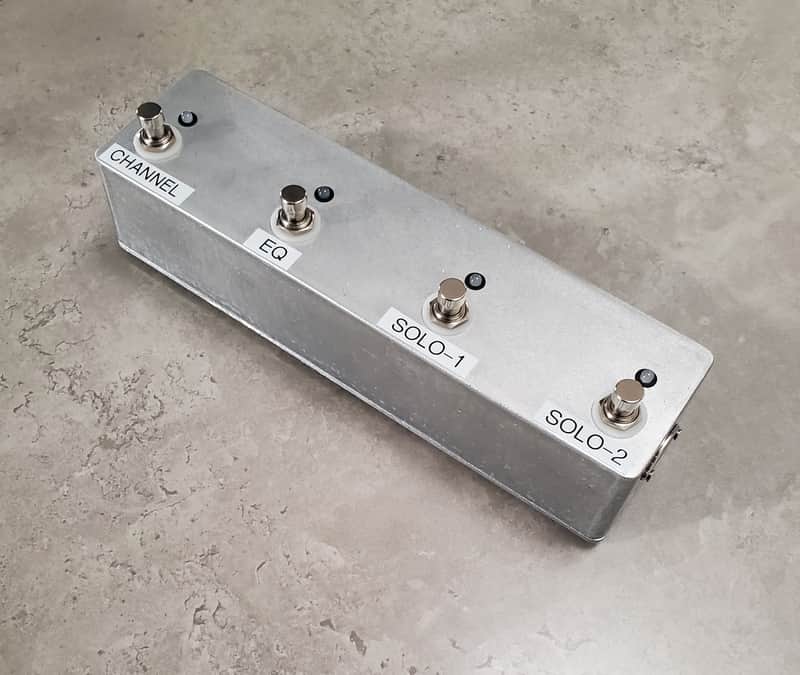

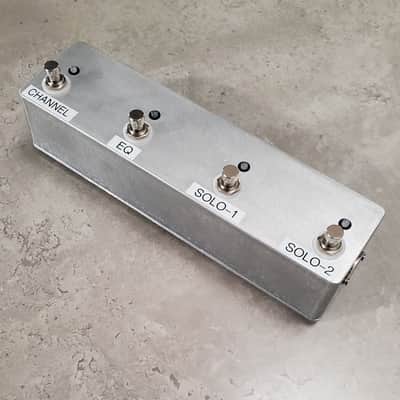

Handwired and built inside a sturdy aluminum enclosure. This is a smaller footswitch, which will save you space in your pedalboard with the dimensions 10" L x 3" W x 3" H.

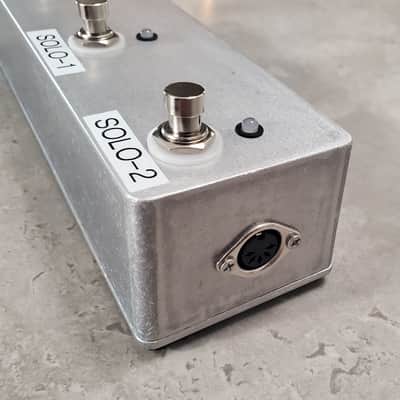

This custom footswitch has 4 switches, 4 LED's and a 5-pin DIN JACK for connecting the OEM 5-pin DIN cable directly to the 5-pin DIN jack on your MESA MARK V 35 Amplifier, therefore giving you control over the 4 footswitchable functions available in your MESA MARK V 35 amp.

CHANNEL - Green/Red LED.
EQ - Yellow LED.
SOLO-1 - Green/Blue LED. Note: Dim Blue shows that Solo-1 will be enabled when selected.
SOLO-2 - Red/Blue LED. Note: Dim Blue shows that Solo-2 will be enabled when selected.

5 PIN DIN cable is NOT included in this listing.

Please note that you will need a 5-pin DIN cable (OEM-type) which has all 5 pins and ground wired - Note: MIDI cables do not typically carry the ground.

Some cosmetic flaws may exist since these are hand built. However, it is fully functional and guaranteed to work.

USA Shipping Only.
