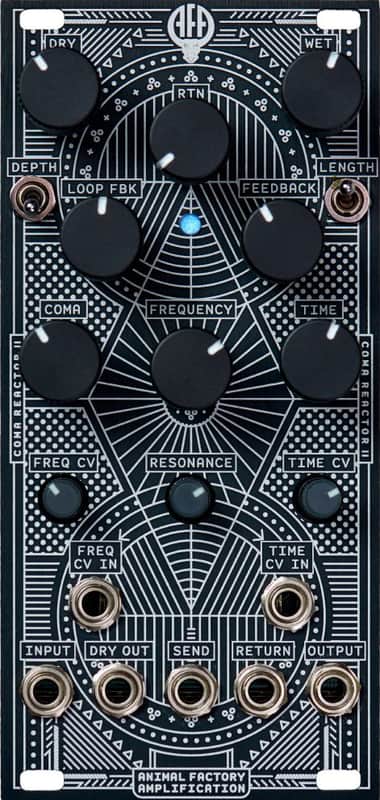

ANIMAL FACTORY COMA REACTOR II : BRAND NEW : [DETROIT MODULAR]

Taking equal inspiration from gritty delays on cheap mixers, the sounds of dub and the fracturing of consciousness in time and space, the Coma Reactor looks like a deceptively simple delay module... till you start digging deeper.

The Coma Reactor boasts the crunchy sounds of the PT2399 chip, but adds a number of useful routing possibilities that really open it up for sound mangling that transcends the norm.

Independent volume controls for dry, wet as well as FX loop return allow you to blend in clean, delayed and affected sounds to suit your needs. A CV input on the module increases or decreases the delay time, going from slight tape-echo warbles to some truly seasick pitch shifting. A buffered clean through allows you to pass an unaffected unity gain to a mixer or other device.

The Send/Return path allows you to process your delay signal through another effects unit. Without anything plugged in, a truly nasty bandpass filter lurks in the delay feedback path. The 2022 edition of Coma Reactor features Frequency (CV controllable) and Resonance knobs for this filter.

Lastly, this completely delirious module is also capable of generating noises and oscillating with no input attached, making it a useful soundtrack generator for the end of the world.

The 2022 Coma Reactor includes a breakout header for future integration with upcoming AFA expander modules.

Current Draw:

+12V — 39mA
-12V — 21mA

Dimensions: 12HP (60.96 mm x 128.5 mm)

Depth: 22 mm

Key Features:

Classic Coma Reactor sound… with more nasty on tap
More textural control with BPF frequency and Q knobs
Crank up the resonance to make the filter an oscillator.
Generate crazy sounds with no input attached
Send and Return path to process delay signal separately
Future-ready expansion header on the back of the module
