NLC Nonlinear Circuits The Big Room

NLC The Big Room

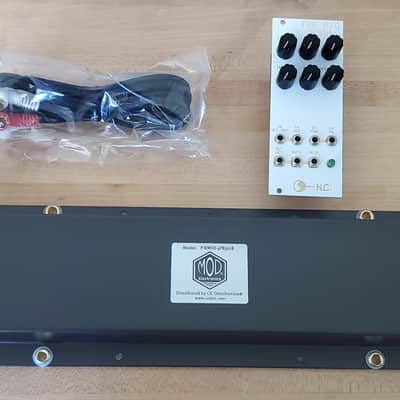

Comes with 4FB3A1B long decay 2-spring reverb tank and 3ft right angle RCA plugs

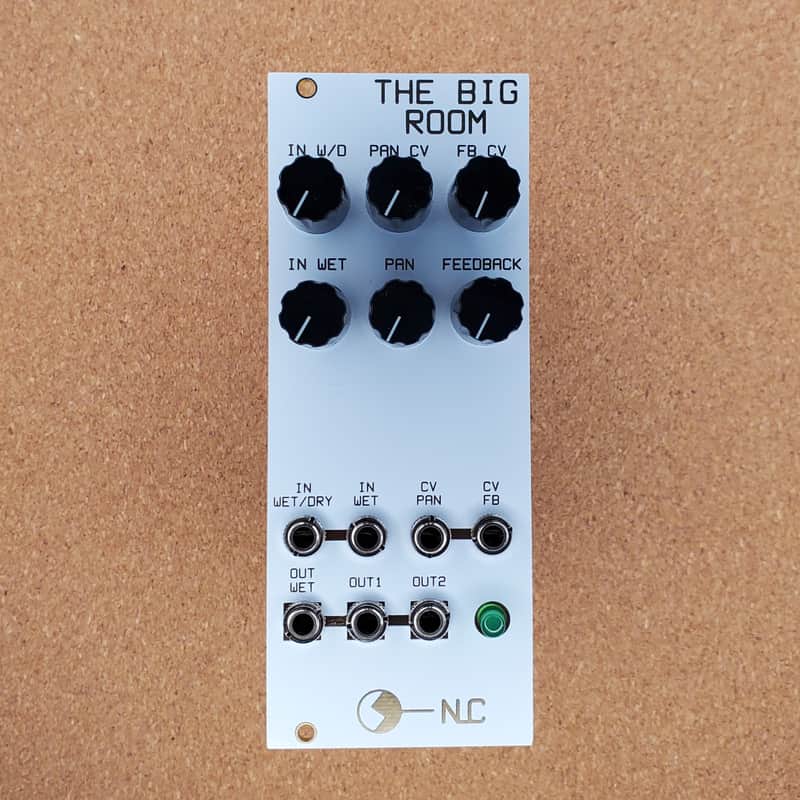

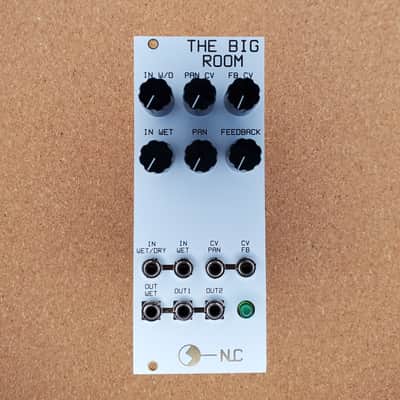

• 10 hp, White Panel
• Fresh build, tested, and fully functional
• Reverse power protection installed, comes with power cable
• Built with highest quality WQP-518MA jacks (20k+cycles)


Further information from nonlinearcircuits:

This module merges the Polyfusion reverb driver circuit with the NLC Segue for VC panning between wet and dry signals. It also has a VC feedback circuit....be careful with that one 😁
The driver circuit was used in the NLC CellF Voice panel, I always liked it and received good feedback from people who owned these panels, so stuck with the design. It is designed for a particular reverb tank that just fits into an 84HP case, which is easily available for USD19. I have tested the module with several different tanks now, they all seem to work okay with some variations of resonant frequencies, so if you have one sitting around try it before the specified one, possibly it will be just fine………….or possibly not.

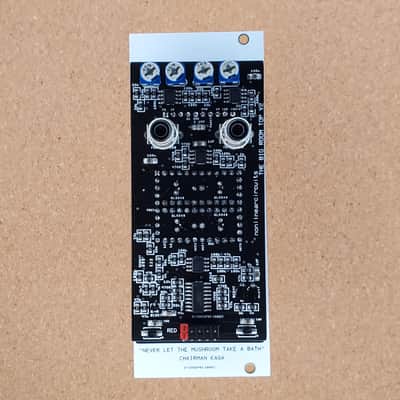

The PCBs form a giant vactrol case for the LDRs used in the panning circuit.

USE:

‘In Wet/Dry’ socket feeds to the switch of the ‘In wet’ socket, so you can process one

signal. If you want to pan between different signals, patch the signal to get the

reverb treatment into ‘In Wet’ and the other signal into ‘In Wet/Dry’. Make sure the

attenuator pots are turned up.

Feedback can be CV controlled or set with a pot. It will slowly but easily self-

oscillate, so be careful with it. The Feedback circuit has a simple low pass filter

that means it will tend to self-oscillate at around 200Hz.
