1-Color LED 3PDT True Bypass PCB’s - 10-pack

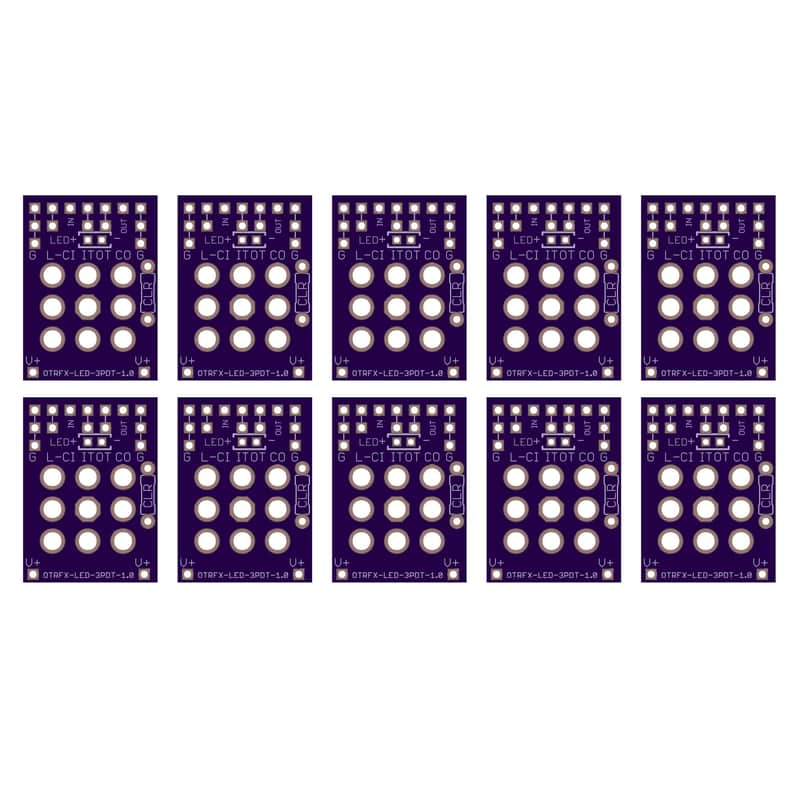

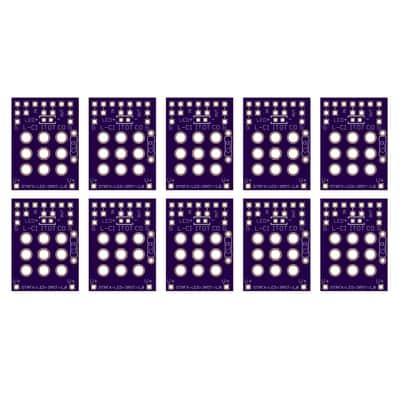

The OTRFX 1-Color LED 3PDT True Bypass PCB makes wiring pedal stomp switches a breeze!

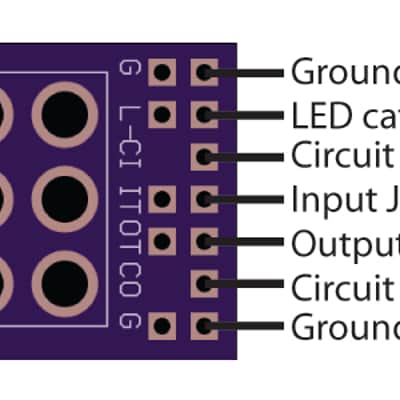

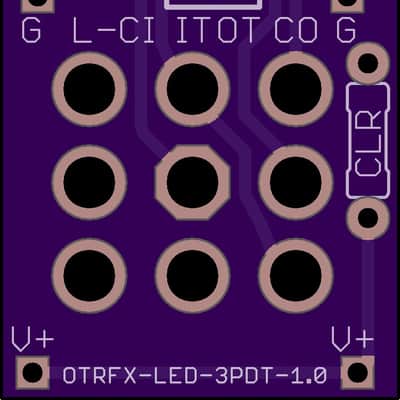

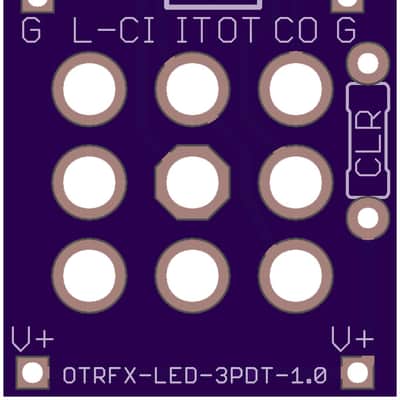

The new PCB is designed to accept either ribbon cable (available at lovemyswitches.com) or individual wires, and includes SIX ground pads to make grounding all of your hardware very easy. Also included are TWO voltage pads and on-board pads for an LED current limiting resistor.

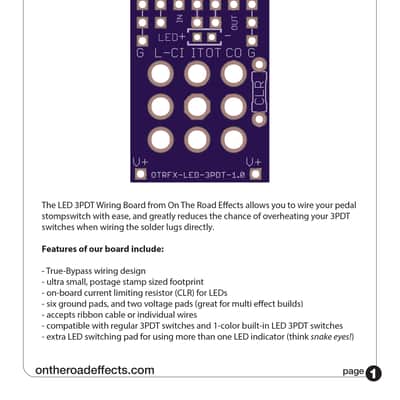

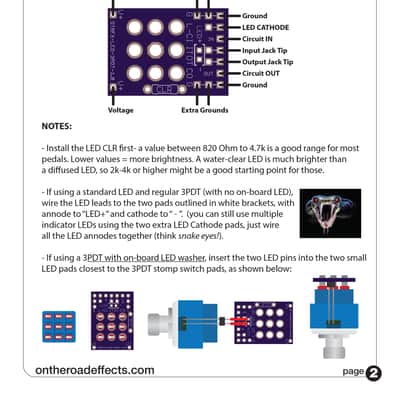

Download build guide here:
ontheroadeffects.com/buildguides/LED_3PDT-1-COLOR_v1.0_BuildGuide.pdf

ALL OTRFX BUILD GUDES AVAILABLE ON OUR WEBSITE HERE:
ontheroadeffects.com/pcbs

You can use this board for any pedal using a standard 3PDT switch, but it also works with the new 1-Color LED Illuminated 3PDT Switches available online!

Many of our effects pedal projects are designed to accept ribbon cable, so use this board with one of those PCBs and you simply solder a ribbon cable between the two circuit boards, and all of your true bypass switching is done! How easy is THAT?

Of course you can still use individual wires if you'd like- this PCB will still make life easier than wiring directly to the lugs of your 3PDT switch.

Features:
- True-Bypass wiring design
- ultra small, postage stamp sized PCB
- on-board current limiting resistor (CLR) for LEDs
- SIX ground pads, and TWO voltage pads (great for multi effect builds)
- accepts ribbon cable or individual wires
- compatible with regular 3PDT switches and 1-color built-in LED 3PDT switches
- extra LED switching pads for using more than one LED indicator (think snake eyes!)

NOTE:
This PCB is for use with the 1-COLOR version of the LED Illuminated 3PDT Footswitches, which have 1 color for ON status only. For Bi-COLOR LED Illuminated 3PDT Footswitches, please see our separate PCB product here:

Package of 10 PCBs per order.
