HK Audio LINEAR 5 MK II 115 XA 1200 Watt 15" Active Multifunctional Speaker

Overview

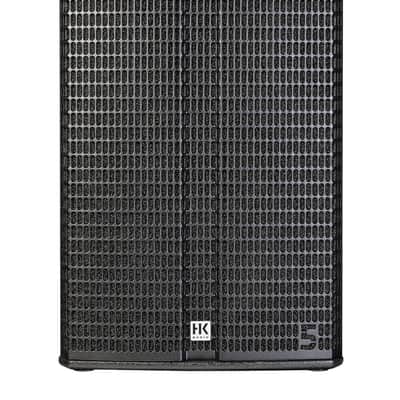

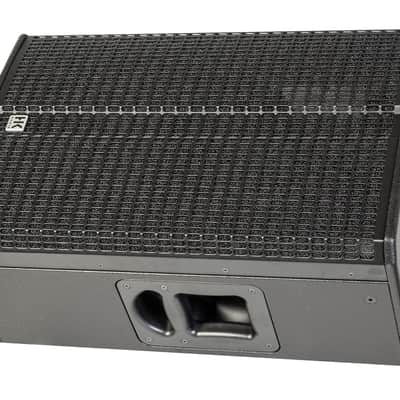

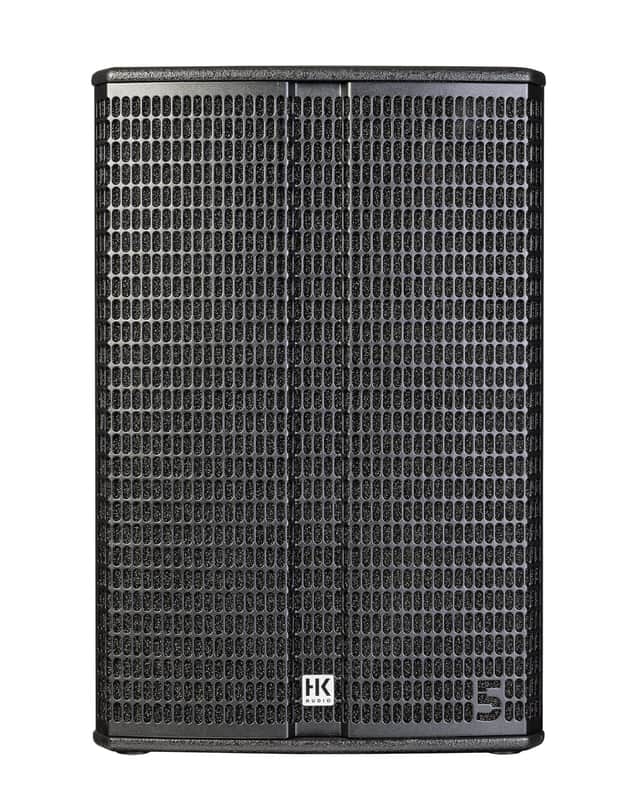

The HK Audio LINEAR 5 MK II 115 XA is a versatile 15" active multifunctional speaker designed for professional audio applications. Equipped with a 15" bass/midrange driver and a 1" tweeter with a 1.7" voice coil, it delivers high output with clear, assertive sound. The rotatable 70° x 50° constant directivity horn ensures optimal sound dispersion, making it suitable for various configurations, including use as a stage monitor or as part of a larger PA system. The robust hybrid enclosure, constructed from birch multiplex and MDF with a black acrylic enamel finish, ensures durability for demanding environments. Advanced DSP features, including a fully parametric 10-band EQ and FIR filtering, allow for precise sound customization.

Features:

• 1200W Peak Power Bi-Amped Class-D Amplifier – Delivers powerful and efficient performance.


• Rotatable 70° x 50° Constant Directivity Horn – Optimized sound dispersion.


• Remote-Controllable High-Performance DSP – Directly selectable presets: Flat, Monitor, Low Cut, Remote.


• Advanced DSP Functions – 10-band parametric EQ, High-Pass & Low-Pass Filters, Polarity, Level, Delay, Limiter, and Mute.


• Lockable, Balanced XLR/TRS Combo Input – Ensures reliable analog connectivity.


• Balanced XLR Output – For analog signal looping.


• Professional EtherCON RJ45 Network Port – Enables DSP control via DSP CONTROL software (Windows, macOS).


• DSP Out – Balanced XLR output for processed signal routing to non-networked speakers.


• HK Audio DuoTilt Pole Mount – Offers 3° or 7° tilt options for precise positioning.

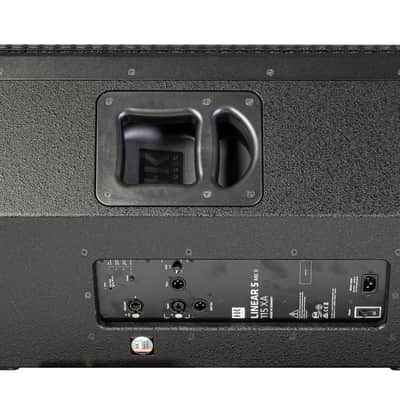

• Three Reinforced M8 Rigging Points & MultiGrip Handles – Provides flexible mounting and easy handling.

Specifications:

• Max SPL @ 10% THD: 130 dB (half-space, 70 Hz – 12 kHz averaged)


• Max SPL Peak @ 10% THD: 138 dB (half-space)


• Frequency Response (±3 dB): 64 Hz – 12 kHz


• Frequency Response (-10 dB): 59 Hz – 19 kHz


• Power Amp Output (RMS/Peak): 600W / 1200W


• Amplifier Type: Class D – Bi-Amped


• Low/Mid Speaker: 15", 3" voice coil


• HF Driver: 1", 1.7" voice coil


• Horn Characteristics: 70° x 50° CD horn, rotatable


• Active Crossover Frequency: 1.6 kHz FIR X-over with 72 dB/oct.


• Maximum Input Level: 20 dBu

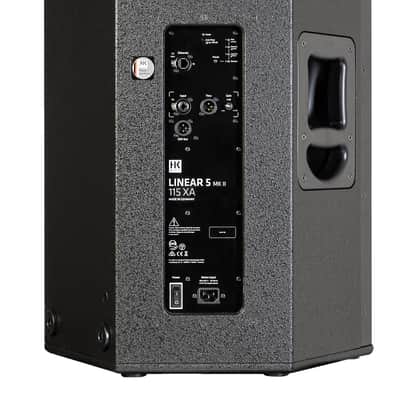

• Analog Inputs: 1 x XLR combo balanced


• Analog Thru: 1 x XLR balanced


• DSP Out: 1 x XLR balanced


• Network Port: EtherCON RJ45, 1 x In


• Filter Presets: Flat, Monitor, Low Cut, Remote


• Remote Software: DSP CONTROL (Windows, macOS)


• DSP Functions: Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute


• Sample Rate: 48 kHz


• System Latency: Less than 2 ms

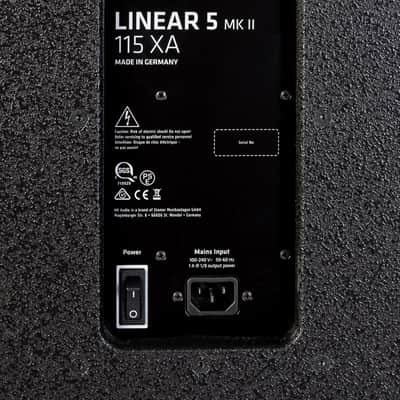

• Mains Connection: 1x IEC connector with V-Lock securing system, 100-240 V


• Power Consumption: 1 A / 100–240 V nominal according to EN 62368-1


• Setup Angle: 31°


• Pole Mount: DuoTilt 3°/7°


• Rigging Points: 3x M8 (AP-8)


• Carrying Handles: 2 x MultiGrip, 1 x SingleGrip


• Housing: Hybrid (birch multiplex/MDF)


• Surface: Black acrylic enamel


• Front Grille: 2 mm metal grille backed with black acoustic foam


• Dimensions (WxHxD): 17.7" x 27" x 16.5"


• Weight: 60.85 lbs
