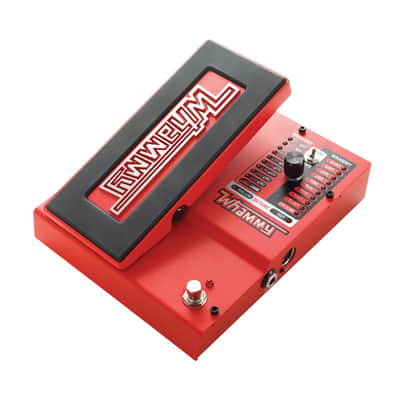

The DigiTech Whammy brings you the same hair-raising “dive bomb” effects, gripping pitch bends and lightning harmony shifts you are looking for plus a few new twists. Bend entire chords with the new chordal pitch shifting setting, and execute classic single note bends.

General Specifications

• SAMPLE RATE: 44.1 kHz
• FREQUENCY RESPONSE: 20 Hz to 20 kHz
• SIGNAL TO NOISE RATIO: > -105 dB (A weighted); ref = max level, 22 kHz bandwidth
• THD: 0.004% @ 1 kHz; ref = 1 dBu w/ unity
• A/D CONVERSION: 24 bit
• D/A CONVERSION: 24 bit
• POWER CONSUMPTION: 2.4 Watts (< 265 mA @ 9 VDC)
• POWER ADAPTER: 9 VDC External Adapter
• TRUE BYPASS: Yes. With true bypass circuitry, the whammy is completely bypassed when both Whammy and Drop Tune effects are off.

Dimensions

• HEIGHT: 2.5” (64mm)
• WIDTH: 6.5” (165mm)
• DEPTH: 7.75" (197mm)

Audio Output

• OUTPUT TYPE: 1/4” Unbalanced TS
• MAX OUTPUT LEVEL: +10 dBu
• OUTPUT IMPEDANCE: 1 kΩ

Audio Input

• INSTRUMENT INPUT TYPE: 1/4” Unbalanced TS
• MAX INPUT LEVEL: +5 dBu
• INPUT IMPEDANCE: 1 MΩ
•  MIDI INPUT: 5-Pin Din
