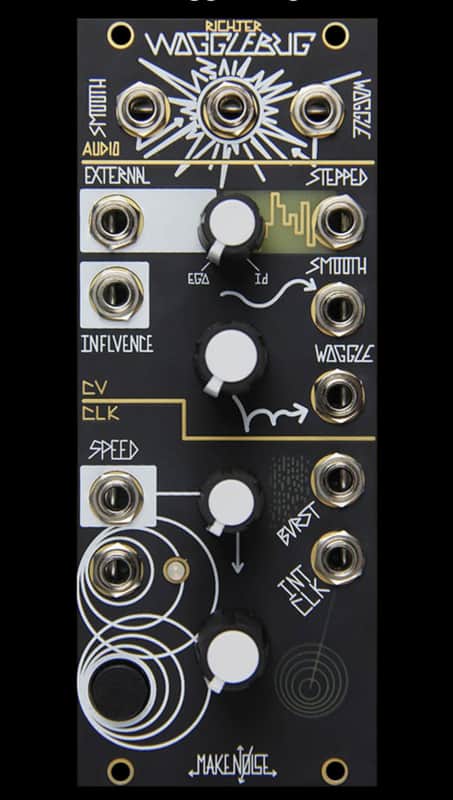

The WoggleBug music synthesizer module is a random voltage generator, originally designed by Grant Richter of Wiard Synthesizers. It is a continuation of the “smooth” and “stepped” fluctuating random voltage sources pioneered by Don Buchla within the Model 265 “Source of Uncertainty,” expanding it to include the other-worldly Woggle CVs (stepped voltages with decaying sinusoids edges). The Wogglebug is a very musical random voltage generator where it is possible to synchronize all random signal to a Master Clock. Guaranteed to unleash your synthesizer’s ID MONSTER!

FEATURES

• Complete Complex Random Voltage system, no external modules necessary
• Two VCOs, Phase Lock Loop, Lag Processor, Clock, Burst Generator and Sample & Hold
• Generates 7 Random Signals simultaneously: Smooth VCO, Woggle VCO, Ring Mod, Stepped, Smooth, Woggle, Burst
• Generates voltage controlled Master Clock
• External inputs for S&H (Heart IN) and Ring-Mod (Influence)
• Disturb button adds performance element
• Wonderful for modulating the Morphagene and DPO

SPECIFICATIONS

• Width: 10hp
• Max Depth
  (incl. power cable): 32mm
• Power:
  50mA@ +12V
  40mA @ -12V
• MSRP: $229
