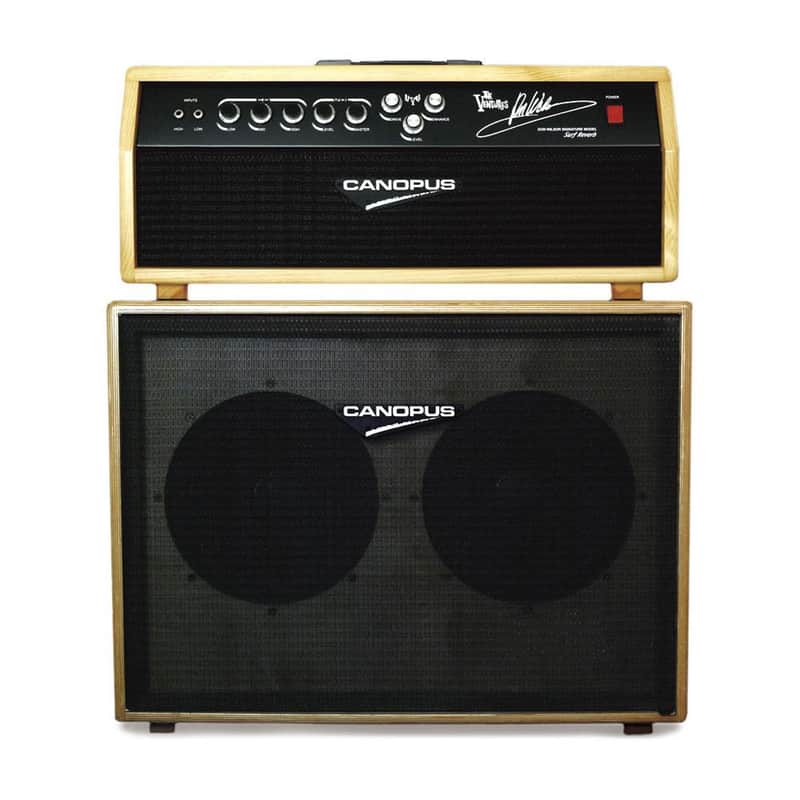

USED by Don Wilson himself. Signature Amp

USED by Don Wilson himself. Signature Amp

[AMP]

Dimension:W702 x H305 x D280mm

Weight:22Kg

Power Supply:AC100V 50/60Hz

Power Consumption:160W

Rating Output:150W

Maxmum Output:300W

Rating Input:High=-40dB Low=-30dB

Rating Characteristics:Total 4Ω以上

Control:Equalizer = Low, MIid, High Volume = Level, Master Reverb = Drive, Level, Enhance

Connecting Jacks:INPUT：High x 1 Low x 1 LINE IN x 1 LINE OUT x 1 FOOT SW. x 1 SPEAKER x 2

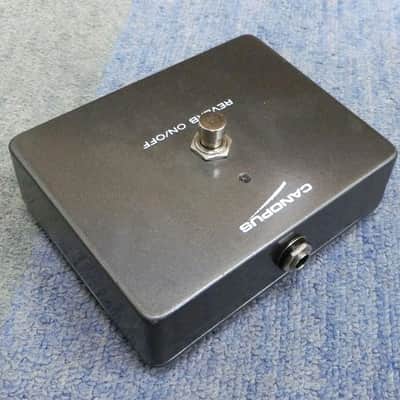

Attchments:Manual FOOT SW

[SPEAKER]

Dimension:W740 x H560 x D300mm

Speaker dimension:CANOPUSEM 12″ (8Ω) x 2 （CANOPUS ORIGINAL by EMINENCE）

Weight:32Kg

Manget weight:80oz

Maximum Input:300W

【notice】

It is 100V with Japanese specifications.

Be sure to use the correct transformer for each country.(Transformer is not included.)

If you have any questions or concerns, please contact us.

Feautures of The Ventures ”Don Wilson” Signature Amplifier　

１.Compact design

He used to play with a large-scale system that used an Amp SS150 for the amp head, a Tubeworks Real Tube Reverb for the reverb, and a PB215-DBW and a Roland JC120 for the speaker system, but he wanted to achieve this with a single amp, and in terms of sound quality he required a clear and big power. A clear, comfortable sound that could reach far.

２.Clear sound quality

The original speaker unit has a 30cm diameter paper cone and was custom-made by Eminence in the United States. The paper center cap is glued directly to the voice coil instead of the cone paper, resulting in a clear sound quality.

３.To prevent accidents during transport of the reverb unit

To prevent accidents during transport of the reverb unit, the unit is equipped with a mechanism to lock the spring in place, and the lock lever is designed so that it can be operated from the outside by reaching into the base of the casing.

Caution

In order to Protect reverb unit,when we ship, we set stopper mechanism "Locked" at the bottom.Before play, please switch the leber "Unlock" position.During the transportation, make sure to set this lever "Lock" position.

During the play, do not put amplifier on the speaker box. The reverb spring in amplifier will pick up speaker's vibration and cause howling.
