We are an authorized U.S. Kernom pedals dealer, for this brand new Kernom Elipse Modulation pedal (with box, etc.), at the lowest price allowed by Kernom in the US, year-round here.

YOUR MODULATION PLAYGROUND

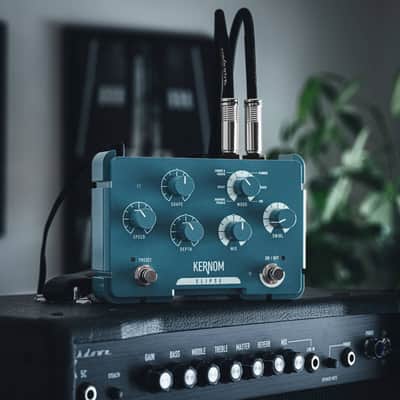

The Kernom Elipse modulation pedal redefines classic modulation, offering seamless, continuous morphing between analog effects. From lush, smooth choruses and warm phasers, to jet-like flangers and rhythmic tremolos. Kernom Elipse opens up a limitless playground for your creativity, with Analog warmth and MIDI control.

PLAY WITH YOUR MOOD
Seamless Morphing... transition effortlessly between modulation effects, giving you the flexibility to choose classic tones or craft hybrid, entirely unique sounds.

SWIRL... The Secret Weapon
The SWIRL control unlocks a legendary secret: blending a slow phaser with any modulation effect to create rich, multidimensional tones. Pushed to its limits, it reveals new overtones, enhanced by an analog drive circuit. The Kernom Elipse pedal takes modulation to the next level!

MIDI PRESETS & CONTROLS
With Kernom's Analog Morphing Core technology, Elipse integrates digital control over the analog circuit. Save and recall up to 128 presets, sync with DAWs, and control all parameters via MIDI CC (Tap Tempo & MIDI Clock support).

• Connect your expression pedal (sole separately) to Kernom Elipse, to control any combination of knobs, and explore new possibilities.
• Use the internal preset accessible via the dedicated footswitch, to have access to two sounds at any given time.
• Full MIDI compatibility with easy editing features. Save and recall up to 128 different presets.

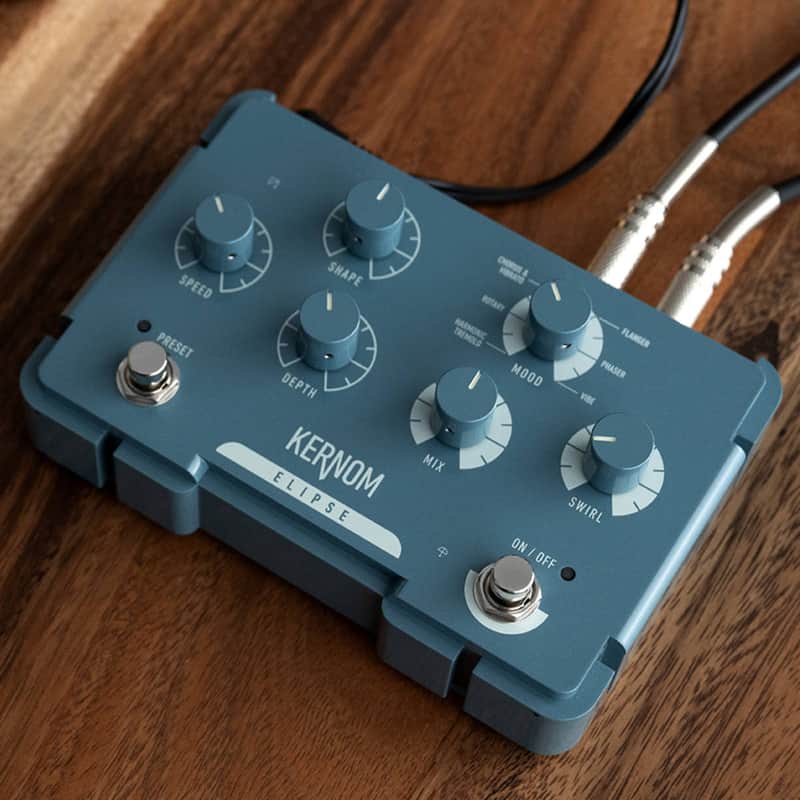

CONTROLS:

SHAPE modifies the modulation waveform, with a classic triangular shape at the mid-position.
MOOD provides access to all the classic and iconic modulation effects with a single knob. This continuous control allows you to gradually transition between classic effects and create hybrid combinations.
SPEED adjusts the modulation rate, from ultra slow texture, to fast ringing oscillations.
SWIRL adds a secondary layer to the main effect. The first part of the knob’s sweep
introduces a slow phaser, while the second part adds a drive effect.
DEPTH controls the intensity of the modulation effect.
MIX controls the blend between wet and dry signals. At the mid-position, it provides a 50/50 mix for classic effects.
PRESET 1 onboard preset, 128 presets accessible via MIDI.

• TRUE BYPASS WITH RELAY.
• EXPRESSION PEDAL INPUT.
• MIDI IN AND OUT WITH FULL CONTROL OVER ALL THE PARAMETERS.

MIDI CONNECTION
The MIDI connexion on the RIDGE, MOHO and ELIPSE are via MIDI DIN to TRS mini jack type A cable. If your switcher/other MIDI pedals use the traditional 5 pin DIN connector, you will need to get an adaptor, which can be easily found online and will be quite reasonably priced.

SAVING YOUR FAVORITE PRESET
Use the internal preset accessible via the dedicated footswitch to access two sounds at any one time. Simply hold down the preset footswitch for 2 seconds to save the current position of the knobs for later use. Retrieve what's been saved using Kernom's editing features.

SPECS:

INPUT IMPEDANCE:  1Meg Ohm
OUTPUT IMPEDANCE: 100 Ohm
BYPASS SWITCHING: True Bypass (electromechanical relay switching)
DIMENSIONS: 4.4 inches deep x 6.5 inches wide x 2 inches tall
WEIGHT: 1.8 lbs
BUILD MATERIAL: 5mm thick aluminium casing with sparkly duck blue and high grade painting surface.
CAPABILITIES: Designed for both guitar, bass, synth, and studio.
MIDI CABLE REQUIREMENTS: Use a type A mini jack TRS MIDI cable.
The RIDGE, MOHO and ELIPSE runs on a standard guitar pedal power supply - 9V DC (center negative), 250mA (or higher).

POWER SUPPLY (sold separately):
This pedal does not use batteries, it uses a 2.1mm plug, 9 Volt DC, Center-Negative power supply, (like most all guitar pedals use), 150mA minimum, 200mA or more recommended. Any power supply higher than 9 Volt DC can damage the pedal.

WARRANTY:
Comes with Kernom's 2-year warranty, under normal use, with proper power supply.

SHIPPING:
Ships fast! Usually same day, with Free UPS Shipping in U.S. with tracking (1 biz day processing, 1-3 biz days transit time). 2-Day shipping is also available.

Our added value, when purchased here on Reverb:

• Duty Free!
• No Risk: Try it on your own rig for 30 days. Don't love it? Return it for a full refund... no hassles, and zero costs. (We'll send you a prepaid return label link.)
• Rock-solid customer service here, 365 days a year.


Get the future of modulation, all in 1 pedal, with the Kernom Elipse modulation pedal from France!
