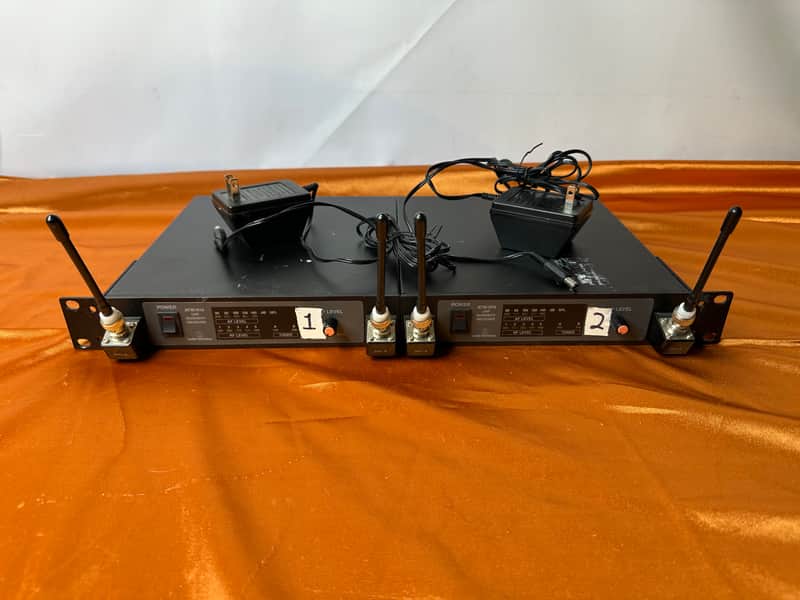

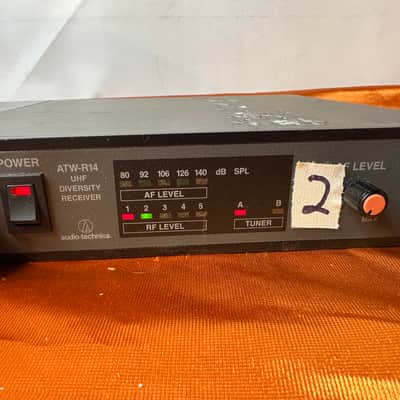

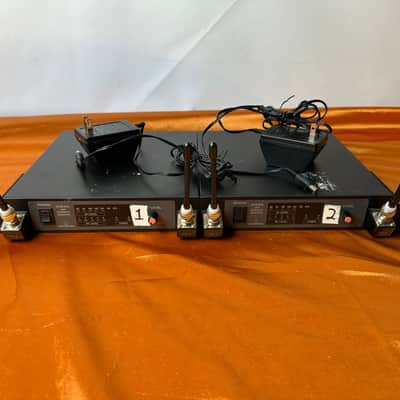

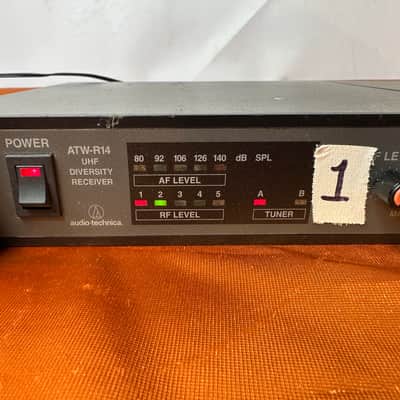

(2x) Audio-Technica ATW-R14 - Receivers only

INCLUDES;

Both receivers

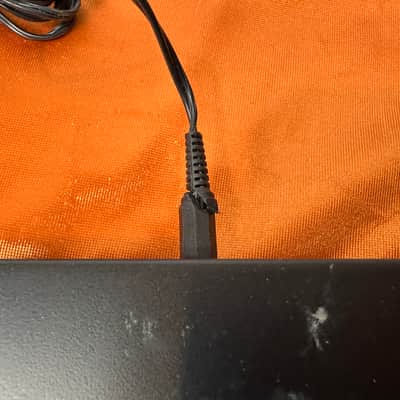

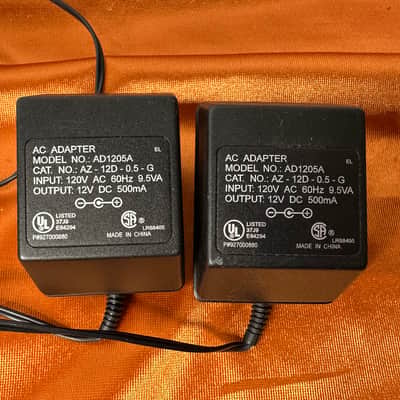

PSU for both units

4x antennas

I.e. Everything pictured

DOES NOT INCLUDE

Wireless mics or transmitters

Both units power on and function as they should.

AT's rugged and reliable 1400 Series UHF True Diversity wireless systems include a receiver and either a body-pack or a handheld transmitter on a specific crystal-controlled frequency. The all-metal UHF receiver is equipped with detachable front-mount antennas, balanced and unbalanced outputs, ground lift, adjustable squelch, rackmount capability and True Diversity reception.

Two antennas feed two completely independent RF sections on the same frequency; automatic logic circuitry continuously compares and selects the superior received signal, providing better sound quality and reducing the possibility of interference and dropouts.

FEATURES

- True Diversity reception with two independent RF sections for greatest reliability

- Interference-resistant UHF band operation

- Convenient detachable front-mount antennas

- Rugged metal receiver housing

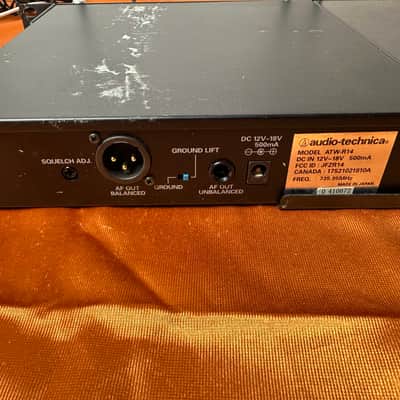

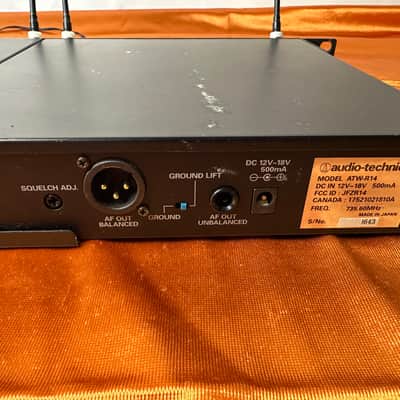

- Balanced and unbalanced audio output jacks

- Ground-lift switch and adjustable squelch

- Two receivers can be mounted side-by-side in a single 19" rack space

- Power-save switches on transmitters

• SPECS- Operating Frequency: UHF band, 732 MHz to 746 MHz- Number of Channels: Fixed channel- Frequency Stability: +/-0.005%- Modulation Mode: FM- Maximum Deviation: +/-15 kHz- Operating Range: 200' minimum- Operating Temperature Range: 40 F (4 C) to 110 F (43 C)- Frequency Response: 100 Hz to 15 kHz RECEIVER SPECIFICATIONS- Receiving System: Dual independent receivers, automatic-switching diversity reception- Image Rejection: 45 dB minimum- Signal-to-noise Ratio: 95 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz- Total Harmonic Distortion: <=1% (10 kHz deviation at 1 kHz)- Sensitivity: <=20 V for 60 dB S/N (IEC-weighted)- Audio Output: Unbalanced: 280 mV (at 1 kHz, +/-10 kHz deviation, 10k ohm load)Balanced: 160 mV (at 1 kHz, +/-10 kHz deviation, 10k ohm load)- Output Connectors: Unbalanced: 1/4" phone jackBalanced: XLRM-type- Power Supply: 12-18V DC, 500 mA- Dimensions: 8.27" (210.0 mm) W x 1.93" (49.0 mm) H x 9.88" (251.0 mm) D- Weight: 2.9 lbs (1.3 kg)- Accessories Included: Two antennas, rack mount adapters, AD1205A AC adapter
