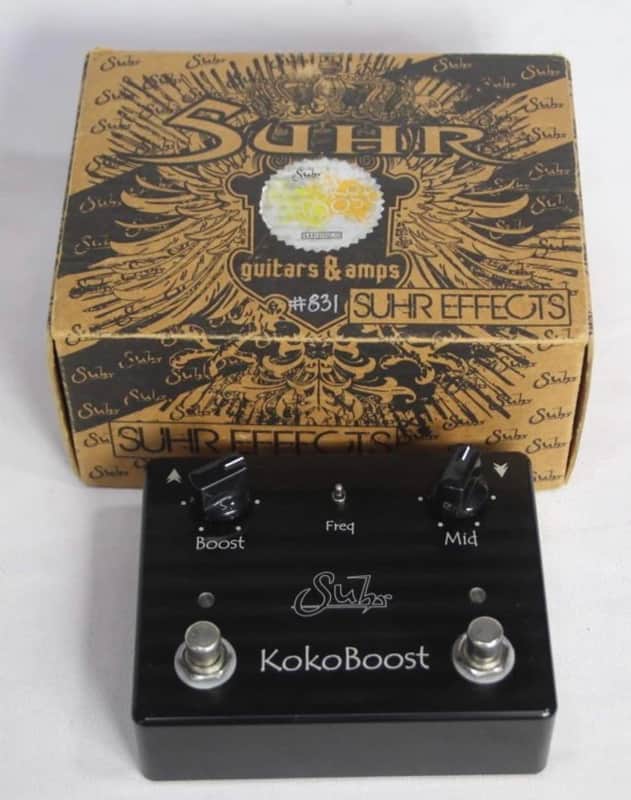

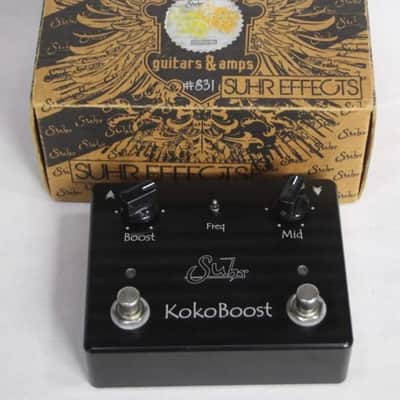

ONE PEDAL TWO BOOSTS: The two foot-switches allow instant access to each boost mode: clean and mid boost.

CONTROLS: Boost: Adjusts the overall output of the boost circuit. The Boost control varies from 0dB (unity gain) to +20dB of gain. Turning this control to higher settings will efficiently push the front-end of your amplifier and create a broad range of natural overdriven tones.Mid: Adjusts the output of the selected Mid frequency (via the Freq switch) that is added to the clean boosted signal.

FREQUENCY SWITCH: The three position frequency switch is active when the mid boost is engaged and allows you to choose between three midrange voicings.Left (Mids): Full and Smooth tuned specifically to bring out your guitars natural midrange characteristics.Middle (High Mids): Clear and articulate voiced to cut through a mix for solo playing.Right (Low Mids): Fat and Creamy excellent for thickening up rhythm and lead tones.

ADVANCED FEATURES: Selectable Bypass Mode: Koko includes a high quality transparent sounding buffer. Via an internal switch you can choose to have Koko operate in true bypass or buffered bypass modes.FX Link: The FX Link connector allows the pedal’s switching function to be controlled from an external switch pedal board loop switcher or any other custom interface. FX Link also provides the ability to power up in the On/Off state.Low Battery Monitor: Koko incorporates a unique battery monitor that alerts the user to low battery conditions. In addition the battery monitor will automatically switch the pedal to True Bypass if the battery voltage is too low for the circuitry to correctly operate.
