Expert Sleepers ES-1 and a Pair of ES-2-2
This seller has not set a shipping cost for Greece. Please contact them to ask about shipping.
Our users rate Reverb

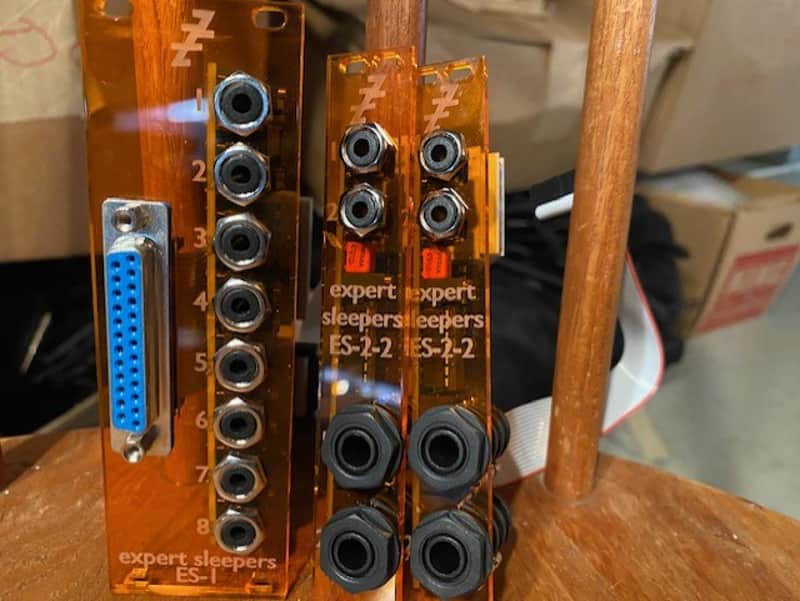

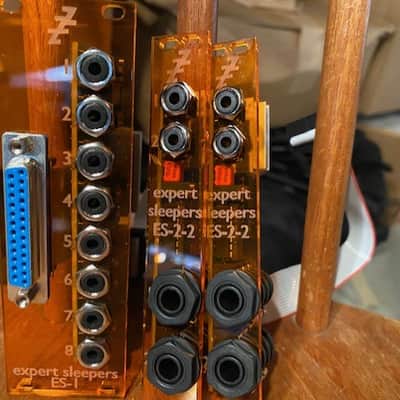

This sale includes an ES-1 module and a pair of ES-2-2 modules, all in mint condition.
The Expert Sleepers ES-1 Audio/CV Interface is a Eurorack module designed for use with software such as Expert Sleepers Silent Way. It connects to an audio interface using standard 1/4" jack (balanced or unbalanced) or DB25 (aka DSub) connectors, and outputs CVs to your analogue synths/effects on standard 3.5mm jacks. When used with the Silent Way AC Encoder software, there is no requirement for the audio interface to be DC-coupled. The ES-1 offers the following advantages over directly connecting an audio interface to analogue gear for CV control:
No requirement for the interface to be DC-coupled.
No need for special cables (e.g. TRS to TS 'floating ring' cables).
No danger of damage to the interface - the ES-1's inputs are completely standard balanced audio inputs.
Much greater output voltage range - up to 9x more than directly connecting a DC-coupled interface via a 'floating ring' cable.
Specifications:
There are two standard configurations of the ES-1:
Jack inputs - the eight inputs are presented on 1/4" jack sockets, which will accept balanced or unbalanced jack leads. The front panel is 12HP wide.
DB25 input - the eight inputs are presented on a single (Tascam TA88 standard) DB25 socket. The front panel is 8HP wide.
The Expert Sleepers ES-2-2 Eurorack format module interfaces CVs from an analogue synth to a computer audio interface, so that CVs may be brought into the computer for processing as audio. Designed for use with the Silent Way plug-in suite by Expert Sleepers. The Expert Sleepers ES-2 CV/Audio Interface is a Eurorack module designed for use with software such as Expert Sleepers Silent Way. It takes as inputs CVs from your analogue synths/effects on 3.5mm jacks, and outputs audio signals on 1/4" jacks which you connect to your computer audio interface. You then use the Silent Way CV Input plug-in to interpret the audio signal and output CVs in your DAW for recording, processing etc.
SHIPPING WITHIN THE CONTINENTAL U.S. ONLY
This item is sold As-Described
This item is sold As-Described and cannot be returned unless it arrives in a condition different from how it was described or photographed. Items must be returned in original, as-shipped condition with all original packaging.Learn More.
| Listed | a year ago |
|---|---|
| Condition | Mint (Used) Mint items are in essentially new original condition but have been opened or played.Learn more |
| Brand | |
| Model |
|
| Categories |
Product safety information may be available here.
