Acus Sound's ONEFORSTREET 5 is a 40Watt acoustic and classical guitar amplifier equipped with 2 separate inputs (channel 1: Microphone or Instrument input, channel 2: Instrument input) plus an Aux input (which can be with 3.5mm stereo jack or with the Bluetooth Acus Artesia BT1) equipped with independent volume.

The 2 inputs are equipped with Gain / Volume, 3band EQ and effect send. The system is equipped with an internal effect (Reverb type) and Master Volume, balanced Direct Out output (equipped with an attenuation switch, indicated with "10dB", to adapt the Direct Out level to a Microphone input) and battery charge indicator LED (active only when the system is powered by battery).

The microphone input is equipped with always active phantom power.

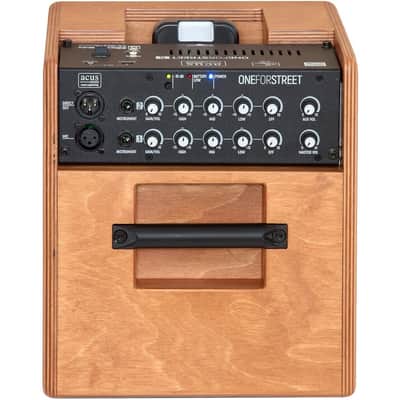

TOP SECTION:

MIC IN with 1kOhm of Impedance. You can connect any type of microphone on it, even Condenser Microphone (this input is equipped with a Phantom power, always Active).

INSTRUMENT IN with 110kOhm of Impedance. You can connect any type of Instrument on it. This input doesn't exclude the MIC IN (1).

GAIN / VOL: this knob permits to regulate the gain and the volume of the system (its range is from ()() to +20dB). Moving this knob to the minimum (0 position) puts the volume of the channel to 0. Moving it to the maximum (10 position) put the signal level to +20dB.

HIGH MID LOW: 3 band EQ with a dynamic from 15dB to +15dB.

EFF: channel Effect Level. The system is equipped with a fixed length Reverb. With this knob is possible to regulate this Reverb Level for the channel

MASTER VOL: Master Volume of the system.

AUX VOL: AUX IN (12) Inputs Volume.

Power: LED for indicating if the system is ON (Led ON) or OFF.

Battery status: LED for indicating the External Battery Status.

10dB: pushing this switch will reduce the DIRECT OUT (11) signal level of 10dB. This attenuation condition is indicated with a LED.

DIRECT OUT: balanced output for connecting the system with an External System

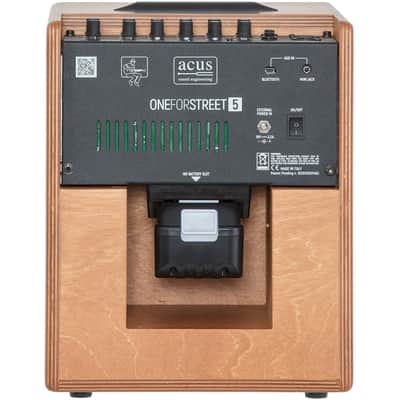

REAR SECTION:

AUX IN: section with 2 Inputs: a 3.5mm Jack and a miniUSB for Acus Artesia BT1 device. Both inputs are controlled with AUX VOL (7) knob.

EXTERNAL POWER IN: connector for the External Power Supply (Included).

ON/OFF: Power Switch for TurningON / OFF the system.

18V BATTERY SLOT: slot connection for powering the system with the external battery (not included)

What's in the box?

• ONEFORSTREET 5
• External Power Supply
• Artesia BT1 Bluetooth receiver
• Artesia LS1 TRRS adapter cable

Specs:

• Frequency Response: 50 Hz 20kHz
• Max Power Out: 40W
• Channels: 2
• System Format: 2 way amp
• Woofer Power: 30W
• Tweeter Power: 10W
• Sensivity 1w 1m: 85 dB
• SPL Max: 100 dB
• Crossover: Electronic
• Woofer Size: 5"
• HF Speaker: dome tweeter
• Construction: Plywood
• Height: 30.5 cm
• Width: 25.3 cm
• Depth: 28 cm
• Weight: 7 kg
