Mix, Record, Monitor, Playback, and Remix

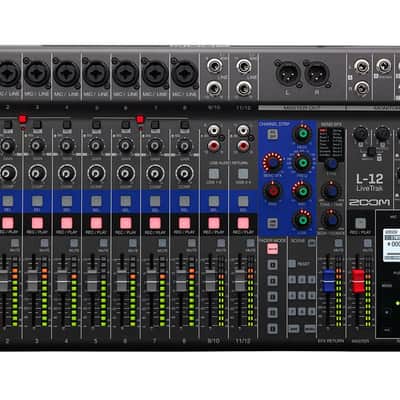

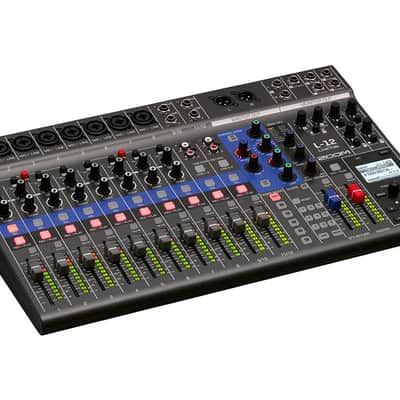

With the LiveTrak L‑12, you can finally mix, record, and monitor with a single piece of gear. It’s the only digital console that lets you mix your live performance and record up to 12 discrete channels – all while providing five individual custom headphone mixes.

Feature List

• 12 discrete channels (8 mono plus 2 stereo) with XLR or 1/4-inch connectivity
• 14-track simultaneous recording, 12-track playback
• 14-in/4-out USB audio interface connectivity
• 5 powered headphone outputs, each with a customizable and saveable mix
• Add backing/click tracks from your computer to your live mix and recording
• RCA and TRS line inputs
• 48V phantom power (channels 1-4 and 5-8)
• Hi-Z connectivity (channels 1 and 2)
• 26 dB pad (channels 3-8)
• Built-in compression control (Channels 1-8)
• Digital level meters -48 dB to 0 dB
• Master mute button
• Low-cut control
• Stereo panning
• Master and Monitor Outputs A-E
• Scene saving function, up to 9 scenes saved at a time
• 16 built-in delay and reverb effects with adjustable parameters
• Built-in slate mic
• Class-compliant mode (for iOS compatibility)
• SD card input
• Built-in metronome
• Automatic recording starting/stopping capability
• Project protection
• Import/export projects with USB 2.0 host port
• Latency adjustment for A-to-D conversion
• Compatible functions for ZOOM FS01 footswitch

Specs NUMBER OF INPUT AND OUTPUT CHANNELS Inputs: Mono (MIC/LINE): 8 Stereo (LINE): 2 Outputs: MASTER OUT: 1    MONITOR OUT: 5 INPUTS Mono (MIC/LINE): Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)) Input gain : PAD OFF: +16 – +60 dB PAD ON: −10 – +34 dB Hi-Z ON: +6 – +50 dB Input impedance : XLR: 3 kΩ TRS: 10 kΩ/1 MΩ (when Hi-Z ON Maximum input level : PAD OFF: 0 dBu (at 0 dBFS) PAD ON: +26 dBu (at 0 dBFS) Phantom power : +48 V Stereo (LINE) Type TRS phone/RCA pin (unbalanced) jacks Maximum input level +16 dBu Outputs MASTER OUT Type XLR jacks (balanced) Maximum output level +14.5 dBu Output impedance 100 Ω MONITOR OUT - A (TRS) Type TRS phone jacks (balanced) Maximum output level +14.5 dBu Output impedance 100 Ω MONITOR OUT A–E (PHONES) Type Standard stereo phone jacks Maximum output level 42 mW + 42 mW at 60 Ω Output impedance 100 Ω Buses MASTER 1 MONITOR 5 SEND EFX 1 Channel strip COMP LOW CUT 75 Hz, 12 dB/OCT EQ HIGH: 10 kHz, ±15 dB, shelving MID: 100 Hz–8 kHz, ±15 dB, peaking LOW: 100 Hz, ±15 dB, shelving Level meters 12 segments Send effects 16 types Recorder Maximum simultaneous recording tracks 14 at 44.1/48 kHz 12 at 96 kHz Maximum simultaneous playback tracks 12 Recording format WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo WAV format Recording media 16MB – 2GB SD cards, 4GB – 32GB SDHC cards, 64GB – 1TB SDXC cards Audio interface 44.1/48kHz Recording: 14 channels | Playback: 4 channels Bit depth 24-bit Interface USB 2.0 SYSTEM REQUIREMENTS FOR AUDIO INTERFACE MODE Windows: OS: Windows® 8.1 / 10 / 11 (32bit/64bit) CPU: Intel® Core i3 or faster*USB: USB 3.0/USB 2.0*** Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD.** Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards. Mac: OS: macOS® 10.14 ~ 15 CPU: Intel® Core i3 or fasterUSB: USB 3.0/USB 2.0** Operation is not guaranteed when used with USB hubs or expansion cards. iPhone/iPad: OS： iOS 8 ~ 17, iPadOS 18 * Apple Lightning-to-USB Camera Adapter required. Card reader Class Mass storage USB 2.0 High Speed USB HOST Class USB 2.0 High Speed Sampling rate 44.1/48/96 kHz Frequency characteristics Frequency characteristics (44.1 kHz): -1.0 dB: 20 Hz – 20 kHz | Frequency characteristics (96 kHz): -3.0 dB: 20 Hz – 40 kHz Equivalent input noise Actual measurements: 128dB EIN (IHF-A) with +60dB/150Ω input Display LCD with backlight (128×64 resolution) Power supply AD-19 AC adapter (DC12V/2A) External dimensions 445 mm (W)×282 mm (D)×70.5 mm (H) Weight (main unit only) 2.53 kg
