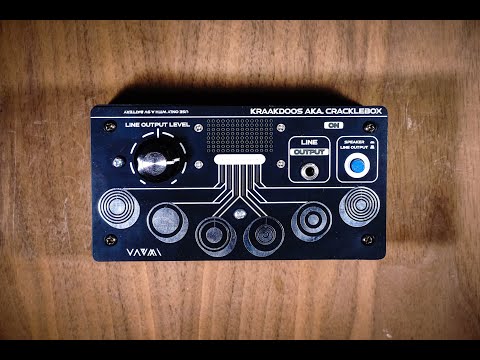

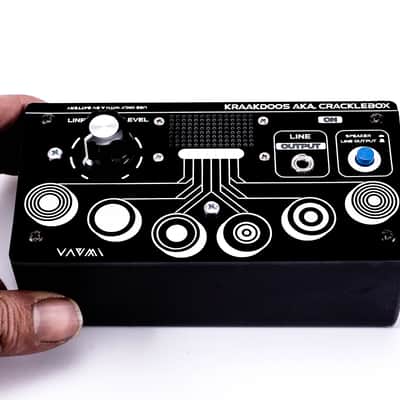

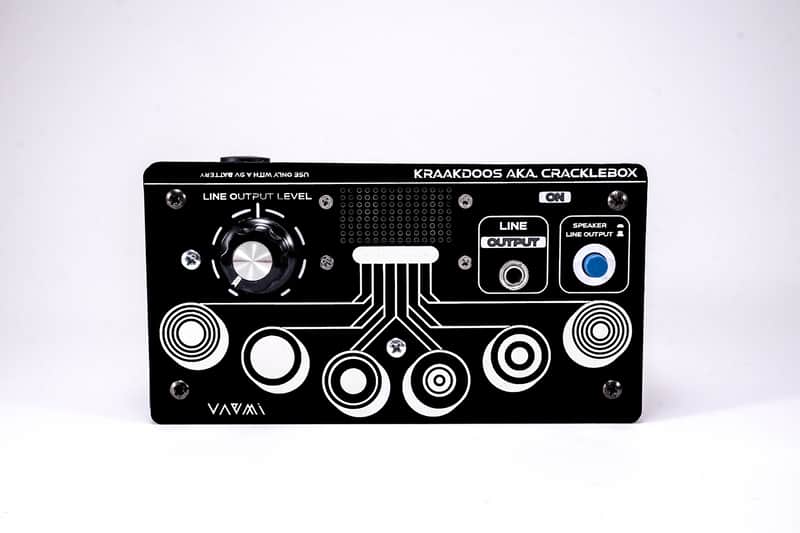

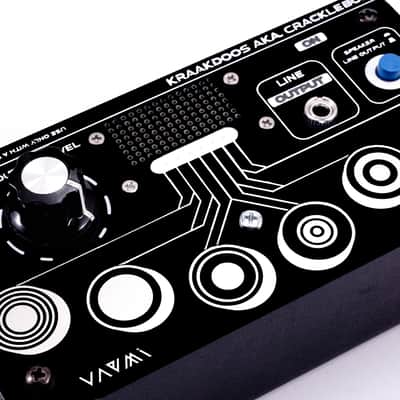

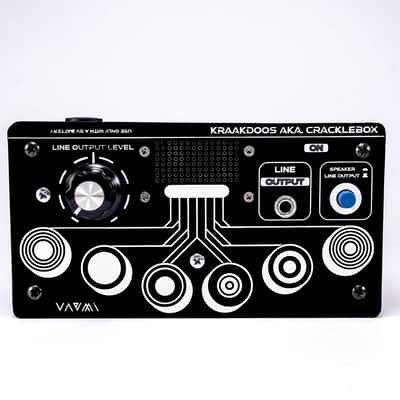

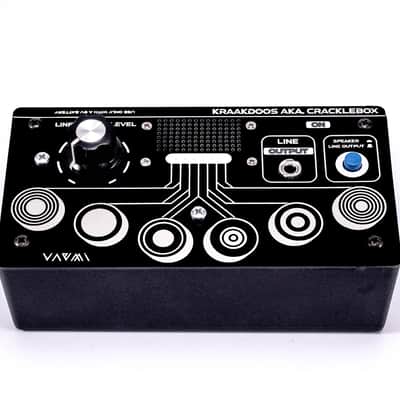

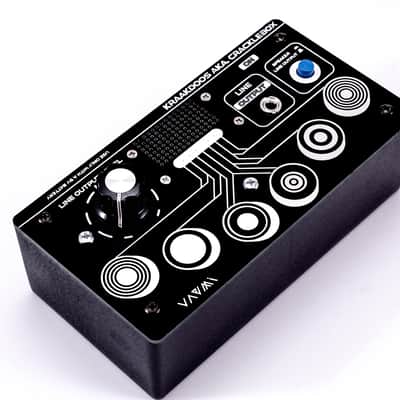

The Kraakdoos, also known as the Cracklebox, is an experimental electronic musical instrument first developed by Michel Waisvisz in the 1970s. This device makes interacting with electronic circuits fun and unconventional, and is played through its touch-sensitive surfaces. When you complete the circuit with your fingertips, it starts producing sound, with the tone, intensity, and rhythm changing according to your touch.

This modern version designed by Vaemi presents the classic Cracklebox concept with an innovative approach. The Kraakdoos serves as a creative tool in sound design, appealing to both musicians and those interested in experimental sounds.

The Kraakdoos, aka Cracklebox, uses the classic LM709 op-amp, which is now only available from a limited number of manufacturers. This component plays a crucial role in shaping the device’s characteristic tone and unique sound palette, providing a truly one-of-a-kind audio experience.

Features

• Transformer-Isolated Line Output: The line-out connection is equipped with transformer isolation, ensuring signal isolation for cleaner sound transmission and professional-grade noise reduction.
• Speaker and External Output Options: Option for external speaker use or external line output.
• Touch Controls: The device responds dynamically to user touch, generating unique sounds.

Revived with Vaemi's design, the Kraakdoos offers an unforgettable experience in the world of analog electronics. With its transformer-isolated line output and the ability to run on a 9V battery, this device is an ideal choice for both studio and outdoor performances.

Dimensions: 130mm (length) x 70mm (width) x 60mm (height)

Power Consumption and Power Supply Information

Battery Usage

Can operate with a 9V battery and draws approximately 60mA of current.

Output

Output Level: 9Vpp (maximum)

The output has a 600-ohm impedance.

youtube.com/playlist?list=PL2yF2BQTZgixy_yJwYw-09tnMjfKaB3Af

drive.google.com/file/d/1BGkRzdtUFi1Uo3xov0HJIW8YWnNqXLy_/view?usp=sharing
drive.google.com/file/d/1PWxk0itFm02iM-_EVd_NAlVaOZw-YdYB/view?usp=sharing
en.vaemi.net/ibom-list-for-kraakdoos-cracklebox

drive.google.com/file/d/1h-R4X97izXN0FylrpKLD2FXlEEWPIePv/view?usp=sharing

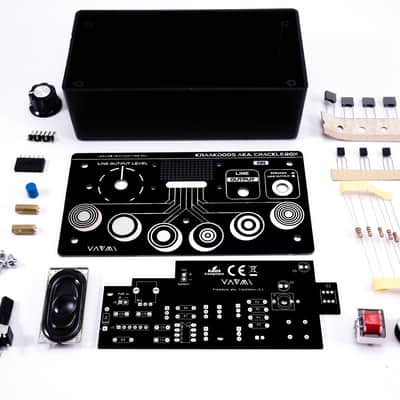

***Price is for DIY Kit (with all components).If you want it assembled, you can ask for the price or learn from our website***
