PS-2 Digital Pitch Shifter/Delay

The PS-2 can shift up and down one octave and everything in between. Its got up to 2 seconds of delay time. There are 6 different modes:

• Up to 125 ms delay
• Up to 500 ms delay
• Up to 2 seconds delay
• Set pitch shift manually
• +1 octave
• -1 octave

Boss Pocket Dictionary vol.6 (1989):

The PS-2 Digital Pitch Shifter/Delay is a multiple effects unit incorporating both a digital pitch shifter and digital delay into one compact case. The PS-2’s ultra-high speed pitch shifting circuit virtually eliminates any undesired timing response and signal quality differences between the source sound and the pitch-shifted or delayed sounds. It adds quality pitch-shifted chorus, octave, and a variety of harmony effects to the source signal, and confirmation of the degree of pitch-shift is available through the Tuner Out jack by attaching a suitable chromatic tuner like the TU-12.

Using the PS-2

• The PS-2 allows pitch-shifting over the full range from -1 to +1 octave for creating effects from natural-sounding chorus to harmony as in playing octaves or twin guitars
• Used for a delay effect, the PS-2 will provide anything from a short delay of 30ms up to a long maximum delay of 2 seconds.
• A 12-string guitar effect is created by using the pitch-shifted chorus effect when playing arpeggios. Fig. 1 (Balance 5, F.Back 0, Fine/Manual 0-10, Mode 6) shows how to obtain a really thick sound, by mixing the direct sound with a -1 octave pitch setting For a thicker and more radical effect, set the feedback control to a higher setting when using a distortion effect on the source signal.
• Get more metallic sound using the +1 octave setting to add a sharper edge to your playing.
• When set to harmonize a 4th as in Fig. 2 (Balance 5, F.Back 0, Fine/Manual 4, Mode 3), the result is a thick, twin-lead effect which really fattens up single line solos.

Specifications

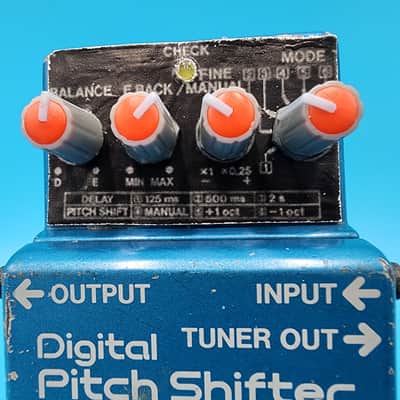

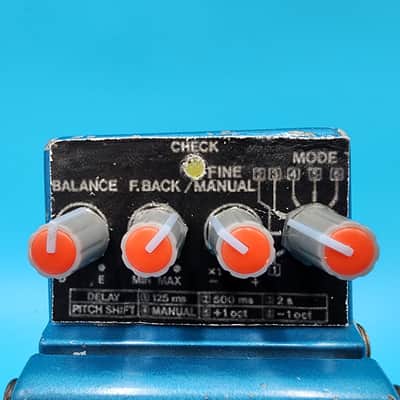

• Controls: Balance (between effect in direct signal), Feedback (for amount of repeats, and very unique pitch shifting effects), Fine-Manual (for adjusting delay times and pitch) and Mode (for selecting any of the 6 modes).

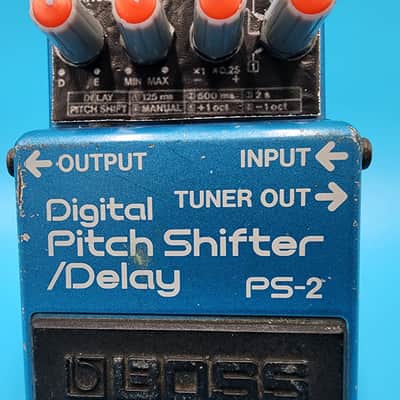

• Connectors: Input, Output, Tuner Out (for plugging into a tuner), AC Adaptor
• Current Draw: 60 mA (DC 9V)
• Weight: 460g/1.01 lbs.
• Input Impedance: 1Mohm
• Residual Noise Level: -90dBm (IHF-A)
• Recommended Load Impedance: 10kOhm or greater
• Delay Time: 30ms to 2000ms
• Frequency Response: 10Hz to 30kHz, +1/-3dB (Direct)
• Recommended AC Adaptor: PSA Series

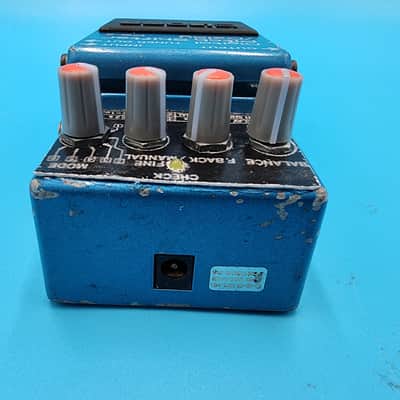

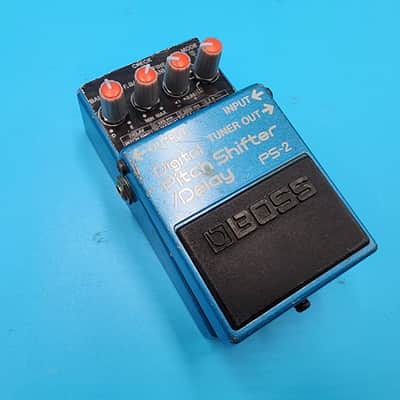

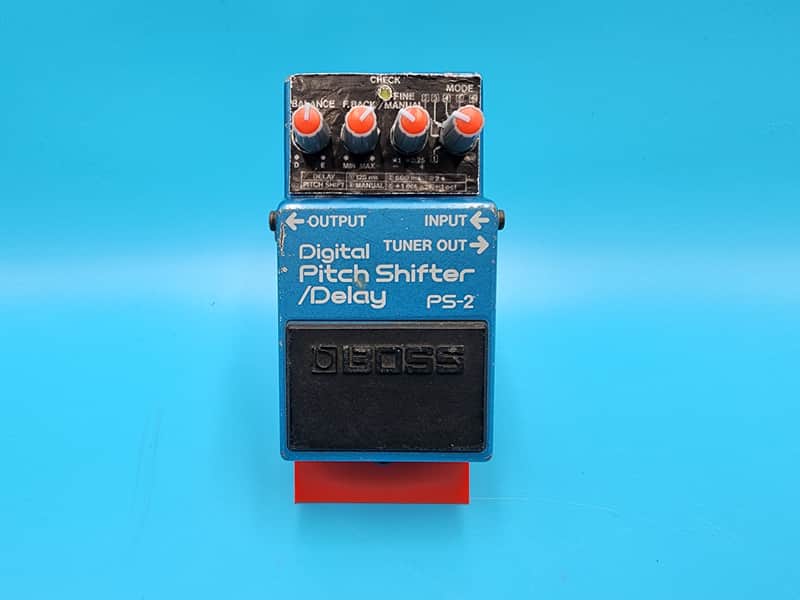

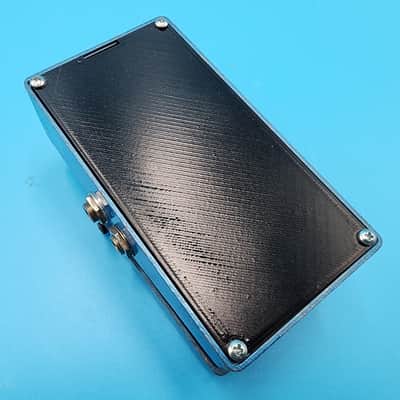

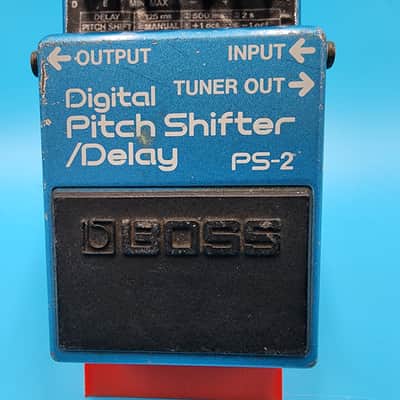

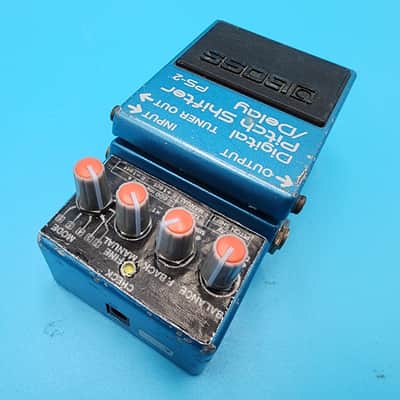

Vintage Boss PS-2 Digital Pitch Shifter Delay Guitar Effect Pedal. Item works perfectly. General wear from basic use. Replacement LED and plates. Shipping is calculated USPS from 16105. Thanks for looking and Good Luck!
