Compact digital conversion

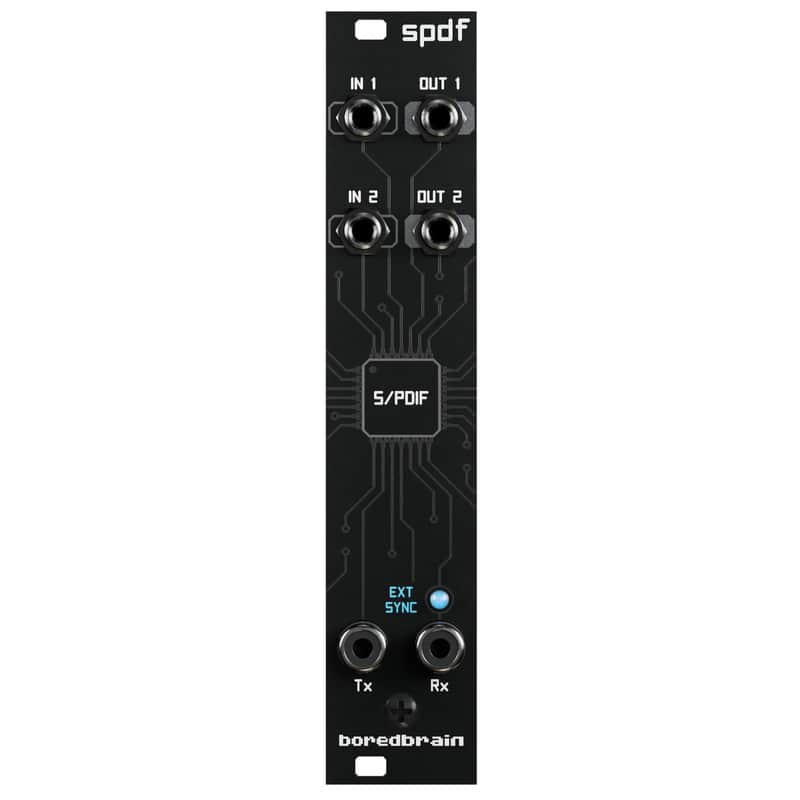

Spdf is a digital signal encoder and decoder for eurorack modular synthesizers. The module converts analog audio and CV signals to and from the S/PDIF format to interconnect digitally with computer audio interfaces and other S/PDIF enabled devices.
FEATURES
- Encodes 2 analog inputs into a S/PDIF digital signal
- Decodes a S/PDIF digital signal into 2 analog outputs
- DC-coupled inputs and outputs support both CV and audio signals
- Selectable 44.1/48 kHz internal sample clock or external sync
- Digital coaxial cable connectors for S/PDIF signals (RCA)
SPECIFICATIONS
- Width: 5 HP
- Depth: 1.0 in (25 mm)
- Weight: 1.2 oz (34 g)
- Resolution: 24 bit, 44.1/48 kHz
- Max I/O Level: ±10 V (20 Vpp)
- Noise Floor: -93 dBFS
- Power: +12 V 55 mA, -12 V 10 mA
| Condition | Brand New (New) Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more |
|---|---|
| Brand | |
| Model |
|
| Categories | |
| Made In |
|
| Horizontal Pitch |
|
| Modular Synth Format |
|
| Synth Module Function |
|
| Analog / Digital |
|
