A modular mixing powerhouse

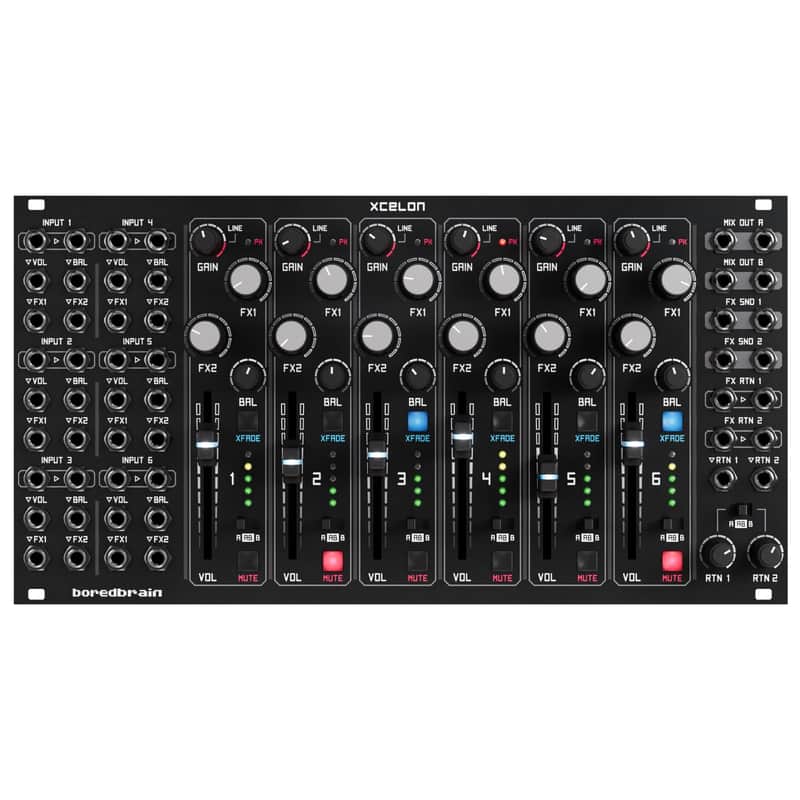

Xcelon is an all-analog six-channel stereo audio mixer for eurorack modular systems. The module is a powerful mixing tool for both performance and production, with an interface designed for immediate hands-on control and visual feedback, plus extensive CV and expandability.

FEATURES

• Six stereo/dual-mono channels with low-noise analog circuitry
• Two stereo FX sends and two dedicated FX returns
• Two stereo output mix busses selectable per-channel
• Variable input gain for both modular and line-level sources
• Long-travel volume faders with CV responsive LED indicators
• Balance controls with pan law curve and dual-mono crossfade mode
• Clickless mutes and VU meters on all channels
• Twenty-six discrete control voltage inputs
• Configurable jumpers for pre/post-fader FX and meters, plus volume VCA mode
• Expansion ports for channel expanders, direct outputs, and more

SPECIFICATIONS

• Audio Inputs: 16 x 3.5 mm jacks (8 stereo pairs)
• Audio Outputs: 8 x 3.5 mm jacks (4 stereo pairs)
• CV Inputs: 26 x 3.5 mm jacks
• Input Impedance: 100 kΩ
• Channel Input Gain: +15 dB
• Width: 48 HP
• Depth: 1.5 in (38 mm)
• Weight: 24 oz (680
• Power: +12 V 395 mA (470 max), -12 V 320 mA
