Boss DD-8 Digital Delay

New With Warranty From
Dexter Music Center
Authorized Dealer

Diverse Sonic Range, Maximum Delay Power

Introducing the DD-8, the most wide-ranging and feature-rich BOSS compact series delay ever. This loaded pedal delivers more of everything—more great sounds, more delay time, more control options, and more connectivity. And it does it all in a standard BOSS pedal that slides easily into any mono or stereo setup. Eleven modes provide delay colors from basic to exotic, plus a looper with unlimited overdub capability and external control support. For maximum versatility in a minimum amount of space, there’s no better delay stomp than the DD-8.

Features

• The most advanced BOSS compact series delay ever
• Eleven versatile modes include basic digital delay, vintage echoes, shimmer, mod, looper, and more
• Looper offers up to 40 seconds of recording time, overdub capability, and three-pedal operation with external footswitches
• Three newly developed delay types: Warm, +RV (delay+reverb), and GLT (rhythmic delay)
• Up to 10 seconds of delay time available with tap tempo input
• Carryover switch sets whether delay trails continue or stop when the effect is bypassed
• True stereo I/O and three selectable output modes (independent, panning, and wide stereo)
• Smart I/O jacks support a variety of connection setups (mono, stereo, wet/dry, wet only, and more)
• Support for external control with two footswitches or an expression pedal
• Unique Twist function available in each delay mode via an external footswitch
• BOSS five-year warranty


Specifications
Nominal Input Level -20 dBu
Input Impedance 1M ohm
Nominal Output Level -20 dBu
Output Impedance 1k ohm
Recommended Load Impedance 10k ohms or greater
Bypass Buffered bypass

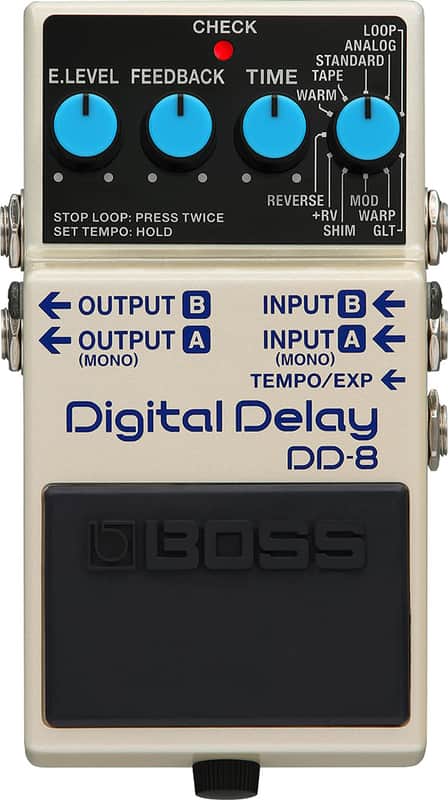

Controls
MODE knob
TIME knob
FEEDBACK knob
E.LEVEL(Effect Level) knob

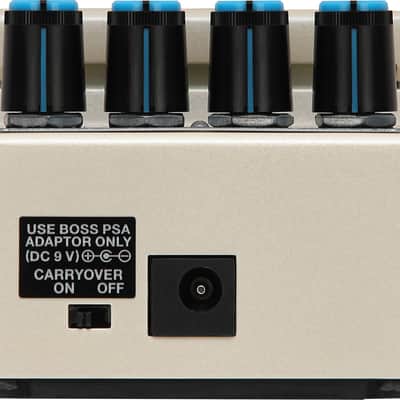

CARRYOVER switch
Pedal switch

Indicator
CHECK indicator (Used for indication of check battery)

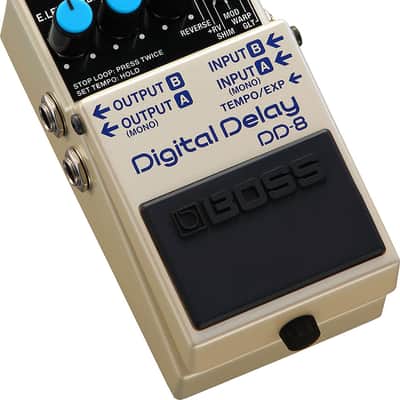

Connectors
INPUT-A(MONO)/INPUT-B jack: 1/4-inch phone type
OUTPUT-A(MONO)/OUTPUT-B jack: 1/4-inch phone type
TEMPO/EXP jack: TRS 1/4-inch phone type
DC IN jack

Power Supply
Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)

Current Draw
100 mA

Expected battery life under continuous use
Alkaline: Approx. 3.5 hours
*These figures will vary depending on the actual conditions of use.

Accessories
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Dry battery (9 V, 6LR61)

Options (sold separately)
AC adaptor: PSA series
Footswitch: FS-5U, FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5

Size and Weight

Width 73 mm 2-7/8 inches
Depth 129 mm 5-1/8 inches
Height 59 mm 2-3/8 inches
Weight (including battery) 440g 1lb
