NLC Nonlinear Circuits Macrame

NLC Macrame

• 21 hp, White Panel
• Fresh build, tested, and fully functional
• Reverse power protection installed, comes with power cable
• Built with highest quality WQP-518MA jacks (20k+cycles)


Further information from nonlinearcircuits:

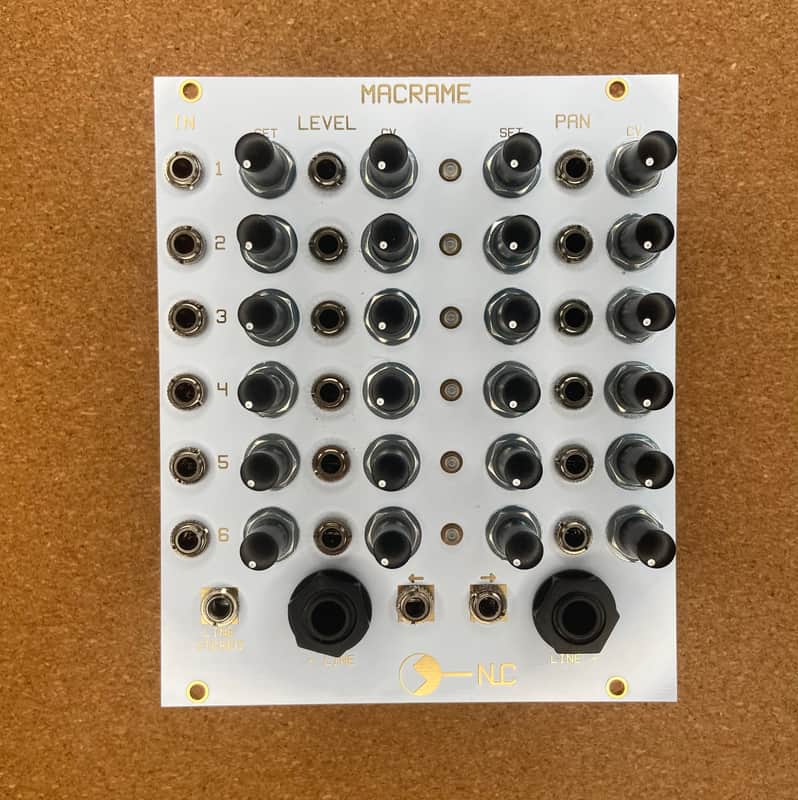

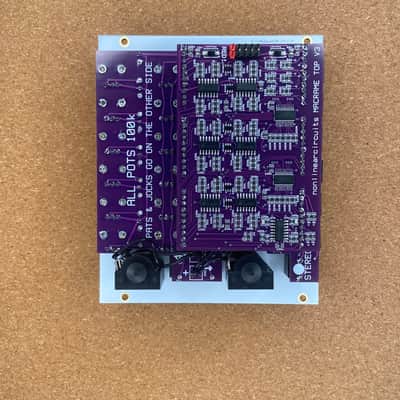

Macrame is a 6 channel mixer with voltage controlled level and panning. It uses two SSI2190 chips to do all the work.

You can use the SET pots to operate the level and pan manually, or use CV to get things moving around and up and down.

It has two synth level outputs, two line level ¼” jack outputs and a stereo line output (which works fine with most headphones too).

For some reason, probably because I was slightly askew on post-op painkillers when designing this, the panel is 21HP. I guess this means I need to release more odd HP modules to avoid gaps in cases.
