StewMac Wiring Kit for Gibson Les Paul Guitar, Long-shaft Pots, and Chrome Toggle Switch
# 0133-LS
The StewMac Compatible Wiring Kit is a complete solution for wiring Gibson Les Paul guitars and similar solid body models. This kit includes everything needed for a full rewire, featuring standard or long shaft pots for various guitar body thicknesses, a 3-way switch (available in chrome or gold), and premium wiring components. Ideal for both new builds and upgrades, this kit is designed for ease of installation and reliable performance.
Standard pots have 3/8" long threaded portion of the shaft
Long shaft pots have a 3/4" long threaded shaft for Les Paul and similar solidbody guitars that have thicker tops.

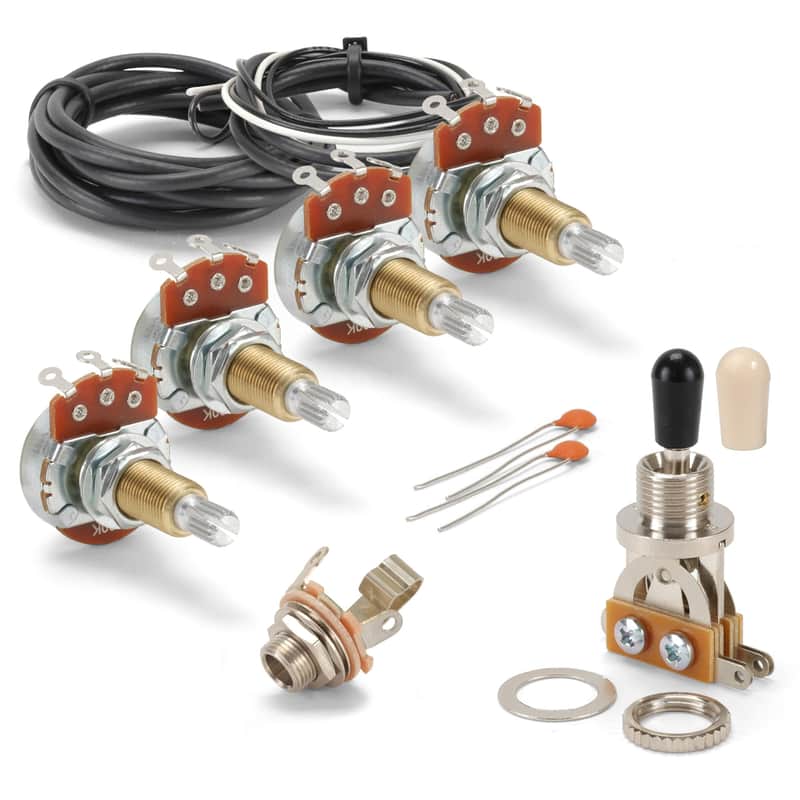

Kit Contents:
- 1 Chrome Output Jack
- 2 .022uF Capacitors
- 2 Knobs (Black and Cream)
- 1 3-Way Switch: Choose chrome or gold finish, 5/16" threaded portion, 1/2" mounting hole diameter, and 15/16" body cavity depth
- 4 500K Alpha Control Pots: 6mm split shaft with coarse knurling, M8 x 0.75 thread (standard), 3/8" x 32 thread (long shaft)
- Wiring: 12" Non-Shielded 22AWG White, 24" Non-Shielded 22AWG Black, 12" Shielded 26AWG Black, and 48" Shielded 26AWG Black
- Comprehensive Wiring Diagram for Easy Installation
With its high-quality components and comprehensive wiring diagram, this kit makes it easy to achieve the classic Les Paul sound and performance. Designed to work with Gibson Les Paul guitars and compatible basses, it is the ideal wiring solution for luthiers, DIY enthusiasts, and repair professionals.
