NLC Nonlinear Circuits Gator

NLC Gator

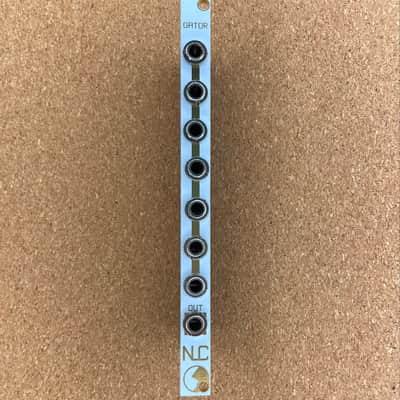

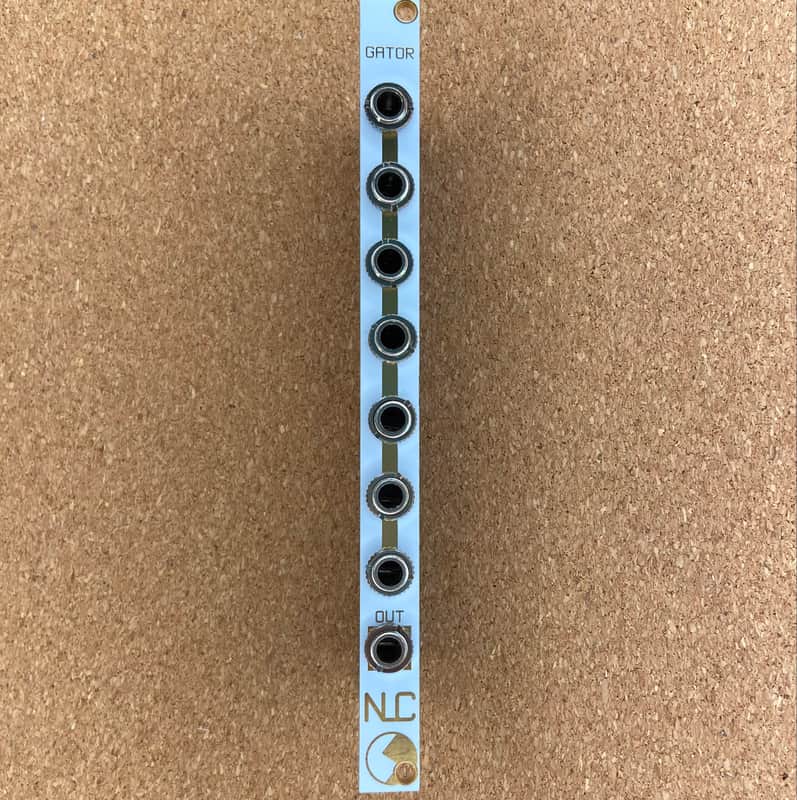

• 2 hp, White Panel
• Fresh build, tested, and fully functional
• Built with highest quality WQP-518MA jacks (20k+cycles)

Further information from nonlinearcircuits:

This is a 2HP passive gate combiner, simply 7 diodes and a 100k pull-down resistor. Feed it a bunch of gates and get them combined at the output. As it is passive there will be a 0.6V voltage drop to 4.4V but should be fine for 99% of Eurorack modules, which usually trigger on 0.5-1V signals.
