iZ RADAR Classic 96KHz 8 I/O Analog Card HOTHOTHOT

Pulled from a smoke-free studio

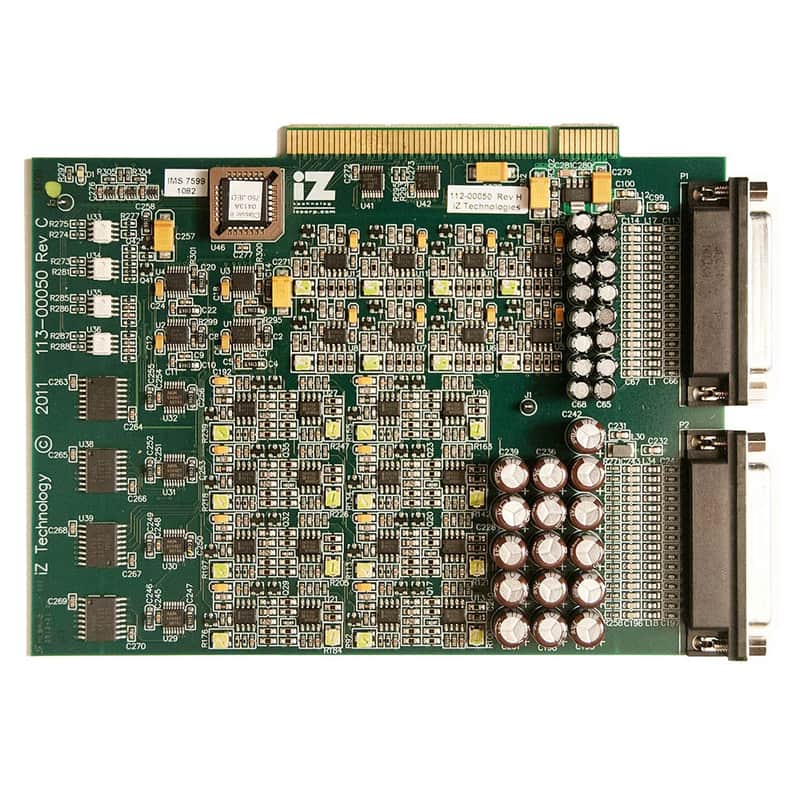

This is for 1 iZ Technology Classic 96 Analogue 8 Channel I/O Card
for RADAR series chassis, or ADA Convertor Frames.

iZ’s Classic 96 analogue I/O cards maintain high-quality, signature iZ audio without compromising disk space. Never harsh or biting, the iZ Classic 96 converter cards are optimized to bring clear, transparent sound to rock and live recording applications.  The Classic 96 analogue I/O cards boast the same warmth, bottom end, and performance characteristics as the historic Classic analogue I/O cards, but with the sample rate range extended to 96 kHz.

• Dynamic Range: 24 bit mode 100.5 dB A-weighted, 16 bit mode, 96 dB A-weighted
• THD+N @ 1 kHz: Less then .006% A-weighted
• Frequency Response: 10-22kHz +/-.5 dB at 44.1 or 48 kHz, 10-45kHz +/-3 dB at 96 kHz
• Sample Rates: 32, 44.056, 44.1, 47.952, 48, 64, 88.2, 96 kHz

CONNECTIONS & LEVELS

• Up to 3 x 8 channel analogue I/O cards may be installed for a total of 24 channels of analogue I/O per chasis.
• Input Connectors (per 8 channel card): 1 x DB-25, 25-pin connectors (balanced)
• Output Connectors (per 8 channel card): 1 x DB-25, 25-pin connectors (balanced)
• Operating Level: +4 dBu with selectable headroom
• Input and Output Level Select (maximum level): +18, +20, +22, +24 dB
