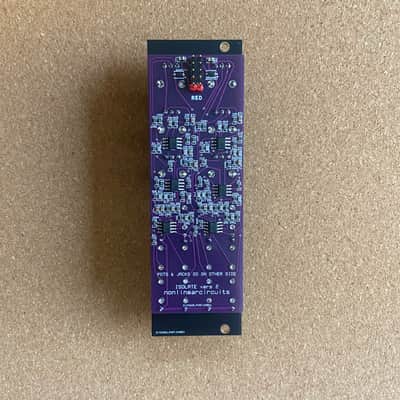

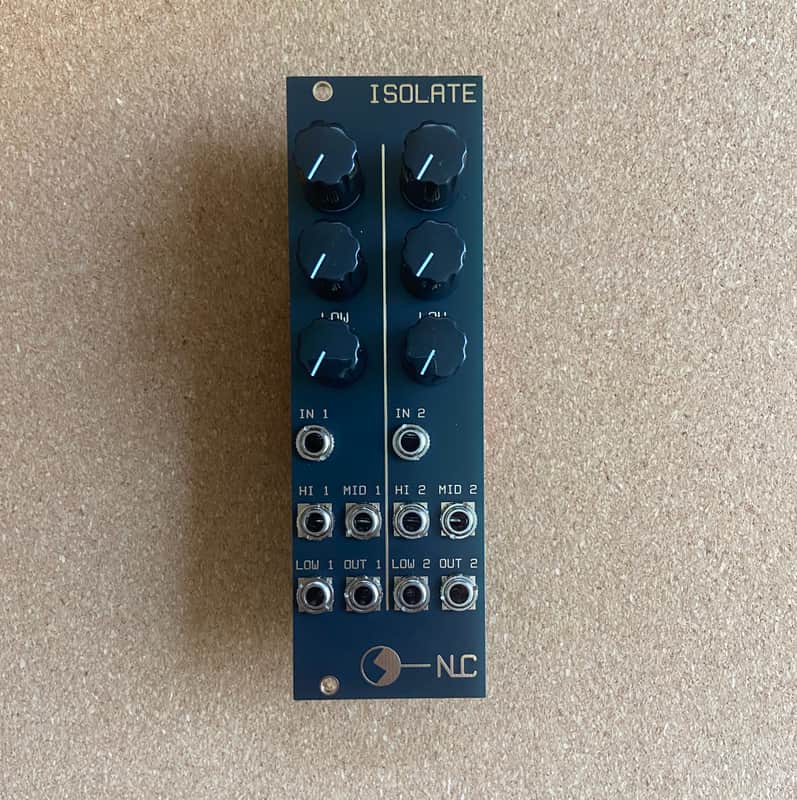

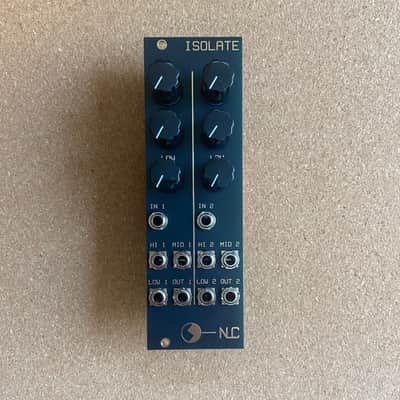

NLC Nonlinear Circuits Isolate

NLC Isolate

• 8 hp, Black Panel
• Fresh build, tested, and fully functional
• Reverse power protection installed, comes with power cable
• Built with highest quality WQP-518MA jacks (20k+cycles)


Further information from nonlinearcircuits:

Back in the late 90s, I played a few gigs in Japan using a couple of SP-808s, Korg Er-1 and Pinky. Generally I’d just get something going and tweak the Isolators on the SP-808s, usual DJ type shenanigans.

Anyway, played a gig earlier this year, I only use a modular these days but wished I had an Isolator, so here are two.

They are simple EQ filters, all manually controlled.

The core circuit is based on a section of the PGM Isolator, don’t know where that came from, probably a 70s electronic hobby magazine.

The input stage boosts the signal by approx. 1.5x, feel free to adjust this (15k on the input op amp).

Feed them some drums and tweak.
