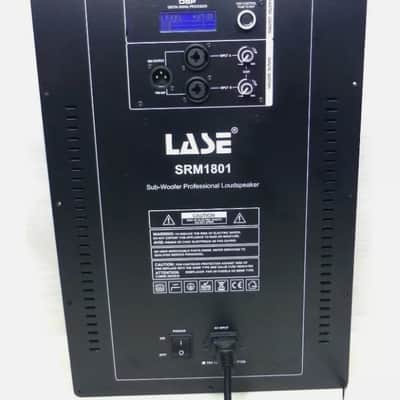

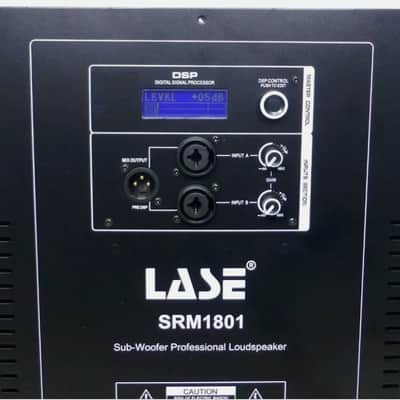

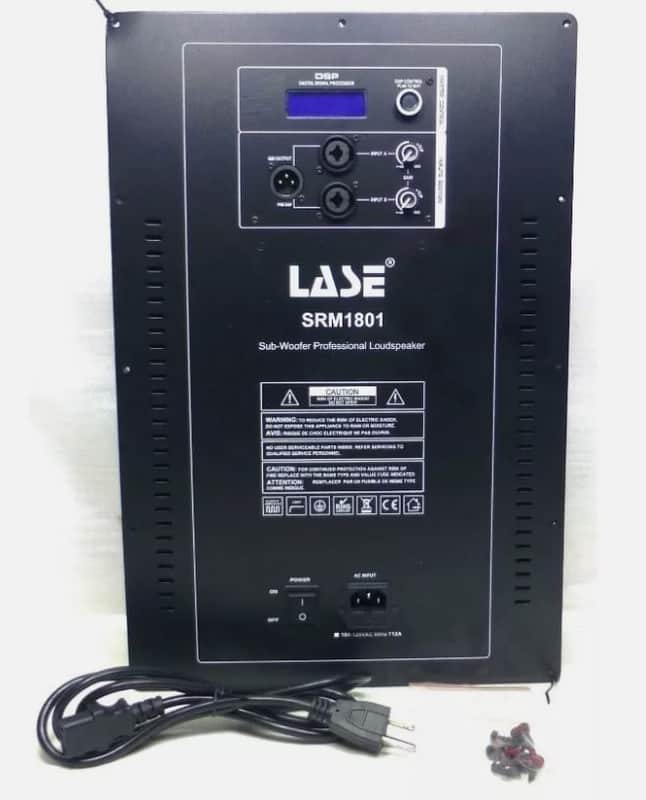

LASE Power Amplifier Intended For Mackie SRM 1801 w/ DSP

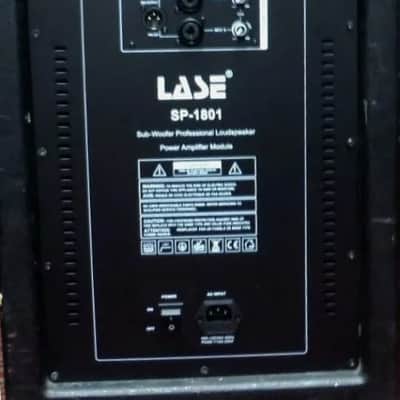

New ! Complete LASE Designed SUB Woofer Power Amplifier Module SP 1801 with DSP. for Mackie SRM 1801 Powered Sub Woofer Power Amplifier Module.

Features :

• Completely Enclosed for easy installation.
• Reliable sound quality.
• Class D wiring amplifier.
• Efficient cooling system,100% pure copper heat sink with Fan
• XLR input and link connectors.
• Low-Pass Filter 80Hz -150Hz 24db/oct.
• Comprehensive protection and warning.

Specifications :

• Power Rated @ 8 Ω ONLY.
• Output Power : (LF) 8ohm(THD+N<1%)
• Power Output : 1000W RMS  2000W Peak Power
• DSP Mode : Music/Live/DJ.
• Volume Control : Line Volume.
• Frequency Response: 20Hz.....500Hz 24db/oct.
• THD : 20Hz - 500Hz for 1W<0.1%
• Residual Noise(Short Circuit input) : <5mV A
• Signal-to-Noise Ratio : >112 dBA
• Sensitivity :Line: - 10dBu ±1dB @100Hz
• Channel separation : (Crosstalk) at 1 kHz    >70 dB
• Input Connectors (per channel) : 3-pin XLR Combo / 1/4"Phono, electronically balanced
• Output Connector : 3-pin XLR.
• Protection : DC / Short circuit/High Temp./Input/Output Overload Protect.
• Soft Startup Protect : 1-2 sec.
• Wiring Class : TD
• Operating voltage : AC 115V 50Hz/60Hz.  NOT OPERABLE @ 220V 50Hz/60Hz.
• Dimensions : (L×W×D) :

                                                  17.75" x 12" x 3.75"(450.85mm x 304.8mm x 95.25mm)

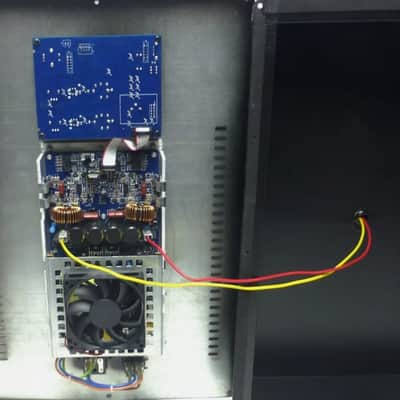

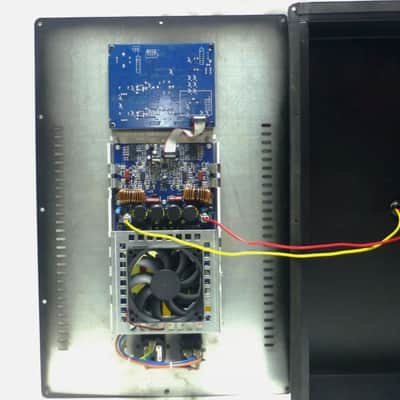

                                                                         Outer Lip.(see pics).                                                                                             16" x 10" x 3.5" (406.4mm x 254mm x 88.9mm)                                                                            Chamber.(see Pics).

• Packing dimension : 19.68" x 14.57" x 5.9" (500mm x 370mm x 150mm)
• Net weight :9.3lbs (4.1Kgm)
• Gross weight :11lbs(5Kgm)
• Mounting Hole Size : 5.5" x 11.5" (139.7mm x 292.1mm).
