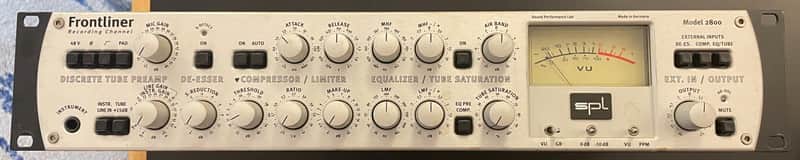

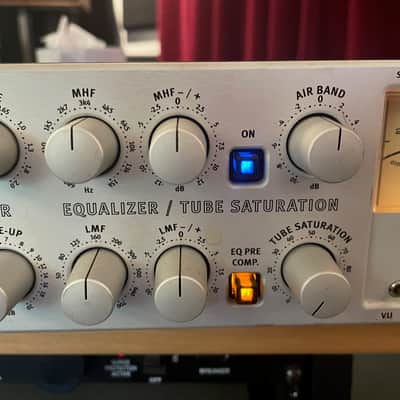

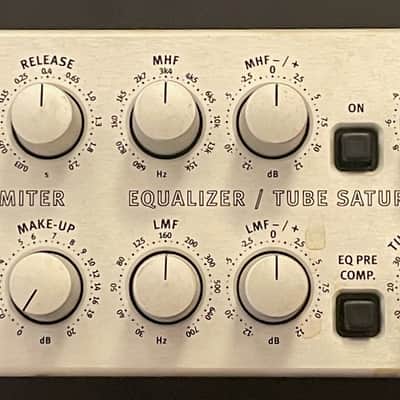

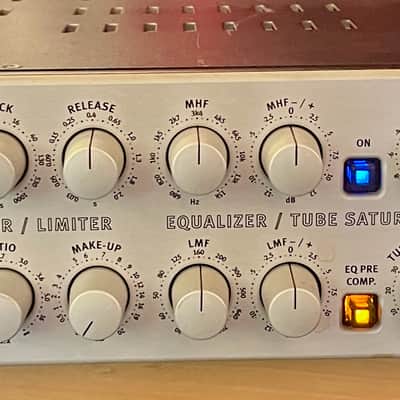

SPL 2800 Frontliner Channel Strip with Lundahl Transformer
This seller has not set a shipping cost for Greece. Please contact them to ask about shipping.
Our users rate Reverb

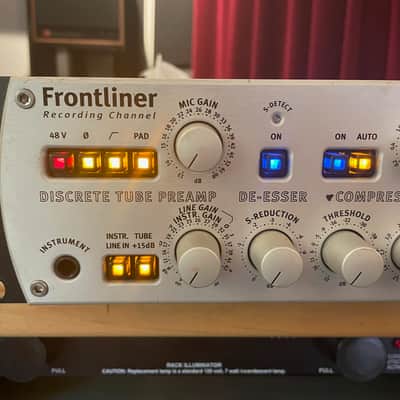

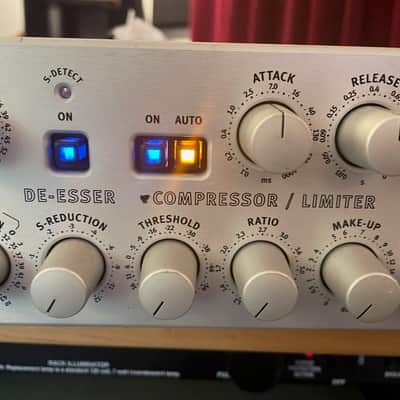

Frontliner combines preamp, de-esser, EQ and compressor, tube saturation, which can be used individually or in combination.
Number of Channels
One
Maximum Input Level
Microphone Input @ 13 dB gain: +9 dBu
XLR
Line Input: +22 dBu
XLR
Instrument Input: +11.5 dBu
1/4" TRS
De-Esser Input: +21 dBu
XLR I/O
Compressor Input: +21 dBu
XLR I/O
EQ / Tube Saturation Input: +21 dBu
XLR I/O
Phantom Power
Yes
Maximum Output Level
21.5 dBu
Gain Control Range
Microphone Input: +13 dB to +68 dB
Line Input: -20 dB to +10 dB
Instrument Input: +6 dB to +43 dB
Frequency Range
(-3 dB)
Channel Strip: 10 Hz to 50 kHz
Microphone Preamplifier: ‹10 Hz to 50 kHz
Line Preamplifier: ‹10 Hz to 50 kHz
Instrument Preamplifier: ‹10 Hz to 50 kHz
De-Esser: ‹10 Hz to 140 kHz
Compressor: ‹10 Hz to 180 kHz
Equalizer/Tube Saturation: ‹10 Hz to 60 kHz
Common Mode Rejection
(@ 1kHz, 0 dBu input level and unity gain)
Microphone Preamplifier: ›80 dB
Line Preamplifier: ›75 dB
Instrument Preamplifier: ›75 dB
De-Esser: ›75 dB
Compressor: ›75 dB
Equalizer/Tube Saturation Line: ›75 dB
Total Harmonic Distortion
(in %, @ 1kHz, 0 dBu input level and unity gain)
Channel Strip: 0.03
Microphone Preamplifier: 0.03
Line Preamplifier: 0.03
Instrument Preamplifier: 0.03
De-Esser: 0.002
Compressor: 0.007
Equalizer/Tube Saturation Line: 0.01
Signal to Noise Ratio
(A-weighted)
Microphone Preamplifier (VU=30 dB): -91.5 dB
Line Preamplifier: -94.7 dB
Instrument Preamplifier: -95.5 dB
De-Esser: -97 dB
Compressor: -97 dB
Equalizer/Tube Saturation Line: -91 dB
Dynamic Range Unweighted
Channel Strip: 110 dB (microphone input › main outputs, @ 30 dB)
Channel Strip: 112 dB (line input › main outputs)
Channel Strip: 112 dB (instrument input › main outputs)
Microphone Preamplifier (@ 30 dB): 110 dB
Line Preamplifier: 114 dB
Instrument Preamplifier: 105 dB
De-Esser: 115 dB
Compressor: 115 dB
Equalizer/Tube Saturation Line: 112 dB
E.I.N. Microphone Preamplifier
-127 dBu
(@ 68dB gain, Rs=150 Ohms, 20 to 22 kHz)

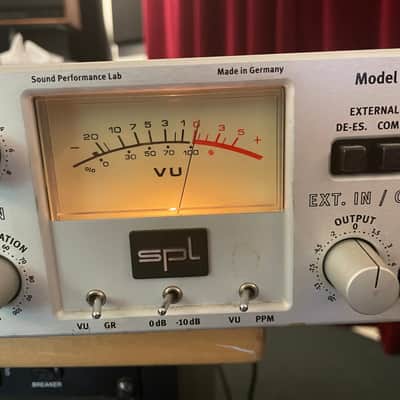

Metering
VU switchable

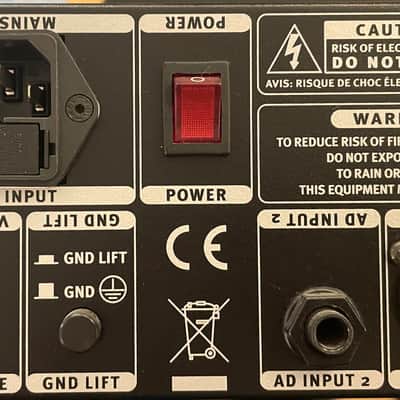

Power Supply
Two Toroidal Transformer
Audio Transformer: 20 VA
Transformer other currents: 15 V A
Fuses: 120 V AC 60 Hz , 630 mA (230 V AC, 50 Hz:315 mA)
63 Voltage Selector: 115 V / 230 V
Power Consumption: 29 W

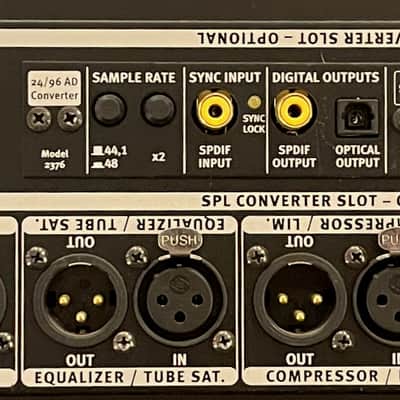

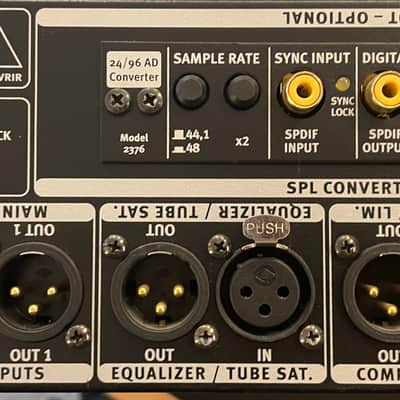

A/D Converter
Optional 24 Bit/192 kHz Converter Module available
Dimensions
19.0 x 3.5 x 10.3" (482 x 88 x 261mm)(depth with controls and sockets)
Weight
12.6 lb (5.7 kg)
