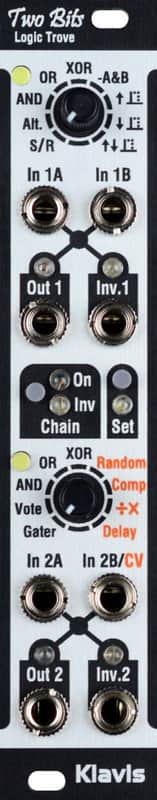

KLAVIS TWO BITS SILVER : BRAND NEW : [DETROIT MODULAR]

Dual logic processor with chaining and CV functions

• Two dual-input logic processors
• 15 different functions
• Simultaneously available normal and inverted outputs
• LEDs on all outputs
• Chaining optinally inverted by dedicated button with LEDs
• Chaining does not waste any input or output; an additional virtual input is created in the second section
• Functions with duration, voltage, percentage, and ratio are user editable.
• User settings are stored automatically
• Random pass, voltage comparator, clock mult/div and delay line functions allow CV control
• White LEDs next to the pots confirm the matching of knob position and function
• The outputs can be Ored by simple shorting in a multiple
• Firmware upgradeable by playing an audio file
• Low consumption, skiff-friendly & compact module
• Complements Klavis’ Logica XT with a varied feature set

Two dual-input sections can be used independently, put in parallel for 4-input wide logic, or chained for more advanced processing.
Each section presents normal and inverted outputs.
The two sections offer a set of common and specific functions for a total 15 different ones.
Several functions offer real-time CV control for dynamic changes of the conditions.
All time-related functions can be independently user adjusted and are saved automatically.
LEDs tell permanently the actual status of all outputs.

Mechanical Dimensions mm inches Eurorack Height 128.40 5.06 3HE Width 25.20 0.99 5HP Depth behind panel 21.00 0.83   Supply Supply rail Current draw +12V 31mA -12V 1mA +5V 0mA
