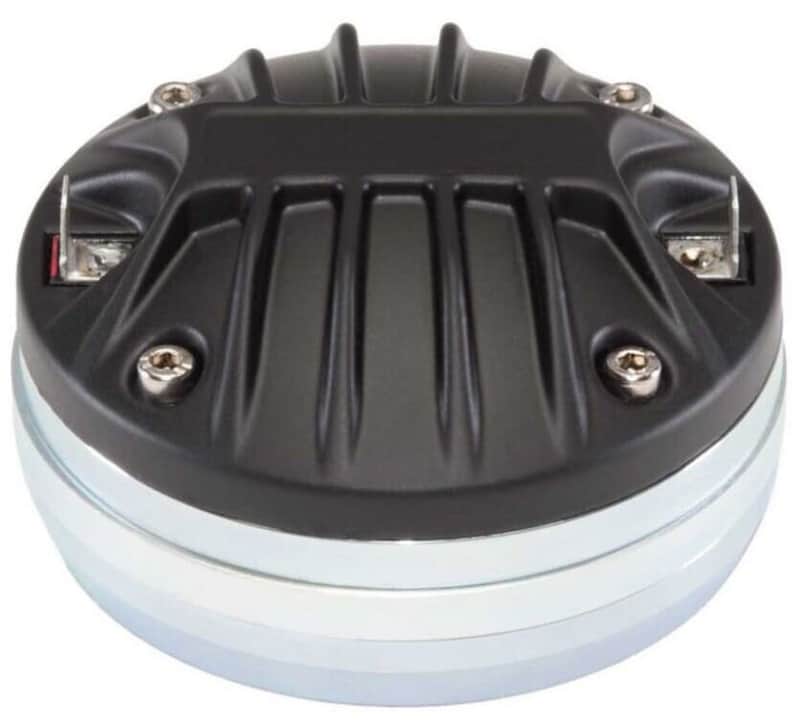

B&C DE550 1" Neodymium Compression Driver 140 Watts 8-Ohms / 1000 - 17000 Hz / 108 dB sensitivity

B&C DE550 1" 8Ω, 140W continuous program power capacity, 108 dB sensitivity.

• 140 W continuous program power capacity
• 1" horn throat diameter
• 51 mm (2 in) aluminium voice coil
• HT Polymer diaphragm
• 1000 - 17000 Hz response
• 108 dB sensitivity

• Throat Diameter - 25 mm (1 in)
• Nominal Impedance - 8 Ω
• Minimum Impedance - 8.3 Ω
• Nominal Power Handling - 70 W (2 hour test made with continuous pink noise signal within the range from the recommended crossover frequency to 20 kHz. Power calculated on rated minimum impedance.)
• Continuous Power Handling - 140 W (Power on Continuous Program is defined as 3 dB greater than the Nominal rating.)
• Sensitivity - 108 dB (Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.)
• Frequency Range - 1 kHz - 17 kHz
• Recommended Crossover - 1.2 kHz (12 dB/oct. or higher slope high-pass filter.)
• Voice Coil Diameter - 51 mm (2 in)
• Winding Material - Aluminium
• Inductance - 0.14 mH
• Diaphragm Material - HT Polymer
• Flux Density - 2 T
• Max Frequency Range - 17 kHz
• Min Frequency Range - 1 kHz

• Other details 2x M6 Mounting Studs with bolts and washers included
• Overall Diameter - 92 mm (3.62 in)
• Depth - 49 mm (1.93 in)
• Net Weight - 1.17 kg (2.58 lb)
• Shipping Units - 1 pcs
• Shipping Weight - 1.2 kg (2.65 lb)
• Shipping Box - 105x105x65 mm (4.13x4.13x2.56 in)

• 848864034805
