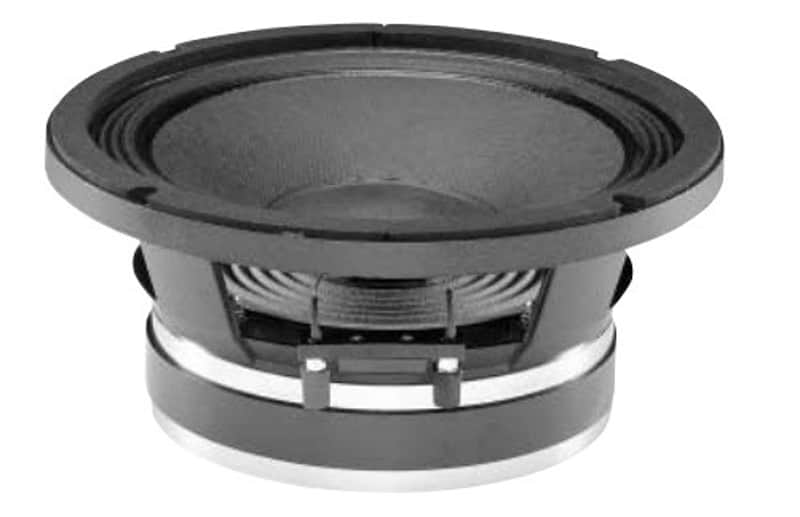

B&C 10PE26 10" Pro / Car Audio Mid-Bass Speaker 8-Ohms, 2.5" Aluminium Voice Coil Woofer 500 Watts

B&C 10PE26, 10" 8Ω Mid-Bass Woofer, 2.5” aluminium voice coil

B&C's 10PE26 is a very high efficiency 10" driver for professional woofer and midbass speaker applications. The 10PE26's 2.5" aluminum voice coil and a low-mass yet stiff cone help provide clean, detailed, high-impact sound reproduction. This Italian-made 10" pro PA speaker resolves fine details in audio program material and reproduces them accurately at concert-level volume.

Specifications

• Nominal Diameter - 250 mm (10 in.)
• Nominal Impedance - 8Ω
• Minumum Impedance - 6.9 Ω
• Power Handling - (60 –600 Hz)
• Nominal1 - 250 W
• Continuous Program2 - 500 W
• Sensitivity - (1W/1m)3 99 dB
• Frequency Range - 60-4000 Hz
• Voice Coil Diameter - 65 mm (2.5 in.)
• Winding Material - Aluminium
• Former Material - Glass Fibre
• Winding Depth - 12 mm (1/2 in.)
• Magnetic Gap Depth - 8 mm (5/16 in.)
• Flux Density - 1.25 T

Thiele & Small Parameters4t.

• Fs - 60 Hz
• Re - 5.7Ω
• Qes - 0.19
• Qms - 6.3
• Qts - 0.18
• Vas - 37 dm.3 (1.3 cu. ft.)
• Sd - 320 cm.2 (49.1 sq. in.)
• η0 - 4.1 %
• X max - ± 2.4 mm.
• Mms - 27 gr.
• Bl - 17.7 Tm
• Le - 1.3 mH

Mounting and Shipping Info

• Overall Diameter - 260 mm. (10.2 in.)
• Bolt Circle Diameter - 244 mm. (9.6 in.)
• Baffle Cutout Diameter - 228 mm. (8.8 in.)
• Depth - 110 mm. (4.3 in.)
• Flange and Gasket Thickness - 17 mm. (2/3 in.)
• Net Weight - 7.1 Kg. (15.6 lb.)
• Shipping Weight - 7.8 Kg. (17.2 lb.)
• Shipping Box - 320x320x160 mm (12x12x6.3in.)
