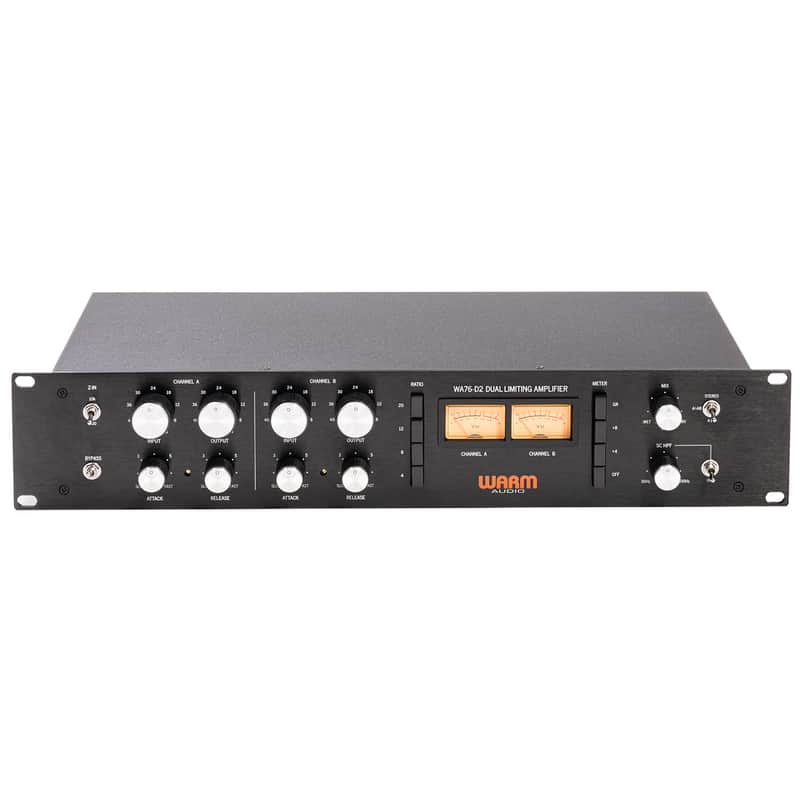

Warm Audio WA76-D2 Dual-Channel Clean Gain Discrete FET Compressor

The Warm Audio WA76-D2 accurately reproduces one of the fastest and most powerful studio compressors of all time known for its generous headroom, ultra-fast dynamic control, and rich analog tone. Using premium and custom components like O-12 (input) and 5002 (output) transformers from CineMag, WA76-D2 achieves authentic 76 rev D style compression, known for having a "low noise" preamp stage with unmistakably analog character. Added modern controls to achieve parallel compression, active and true-bypass, selectable input impedance, and sidechain flexibility make WA76-D2 an ideal choice for modern recording workflows that require vintage tone shaping. WA76-D2 recreates the legendary tone and control of the vintage 76-style compression used in studios by artists like Chris Lord-Alge, Missy Elliott, Timbaland, Van Halen, Rick Rubin, Daft Punk, and many more.

Like all Warm Audio gear, WA76-D2 is meticulously hand-tested and inspected by trained technicians with a passion for making music in Austin, TX USA.

CLASSIC STUDIO COMPRESSION WITH RICH ANALOG TONE

The WA76-D2 is a faithful recreation of the vintage 76 "Revision-D-Style" FET studio compressor with added features to meet modern recording workflows. Recreating the lauded "D-style" version of the 76 compressor known for its speed, lower noise, and rich analog tone, the WA76-D2 offers the ideal blend of vintage circuitry and modern controls to deliver ultimate flexibility without sacrificing vintage analog character.

CRITICAL CLASSIC CONTROLS PLUS BONUS MODERN ADD-ONS

WA76-D2 delivers vintage circuit design and all of the traditional 76-style compression controls; attack, release, ratio, input, output, and meter display. In addition to the classic controls expected on a 76-style compressor, WA76-D2 has added stereo linking, dry/wet mix for parallel compression, external sidechain, selectable input impedance, active and true-bypass, and a variable sidechain high-pass filter to tackle unruly bass that dominates the compressor’s attention.

CUSTOM CINEMAG TRANSFORMERS

Just like in the vintage 76-style compressors from revision "A" to D", the WA76-D2 uses custom large-core, CineMag input and output transformers. The transformers inside the WA76-D2 use the exact same spec data and materials used by Reichenbach Engineering in the original vintage designs known for delivering rich analog tone to any signal chain.

PREMIUM COMPONENTS ABD ACCURATE D-STYLE CIRCUITRY

WA76-D2 uses premium ceramic and electrolytic capacitors, metal film resistors, and a revised preamp stage, improving the linear response of the FET. These key components complete a circuit that cuts no corners in delivering an authentic "cleaner, low noise" 76-style compression experience.

FEATURES:

• 100% analog discrete FET compressor
• Faithful recreation of the vintage "Rev D" FET compressor with added recording features
• VU meter options: Gain reduction, +8 dB output, +4 dB output, "Off" powers off unit
• 100 - 230V IEC inlet universal power supply
• Class A line-level output amplifier
• 100% discrete audio signal path with 600 ohm input impedance attenuator
• Selectable 10kΩ input impedance to better match modern audio interface specifications
• 100% dry-wet mix control
• Variable sidechain high pass filter: 30 - 300 Hz, 12 dB/octave
• ¼" stereo link and external sidechain access
• Active bypass for running unit as line amplifier and true bypass option for A/B comparisons
• Premium O-12 input and 5002 output transformers from CineMag USA
• Vintage-spec attack and release: attack = 20 µS - 800; release: 50 mS - 1.1 second
• "All-Buttons-In" setting for experimental and hard-limiter tones
• Frequency response: ±1 dB 20 Hz - 20 kHz
• Balanced XLR and TRS inputs and outputs
• Total amplifier gain: 53 dB
• Signal-to-noise ratio (SNR): 92 dB (A-weighted)
• Total harmonic distortion ratio (THD+N): -67 dB (at -6 dBu)
