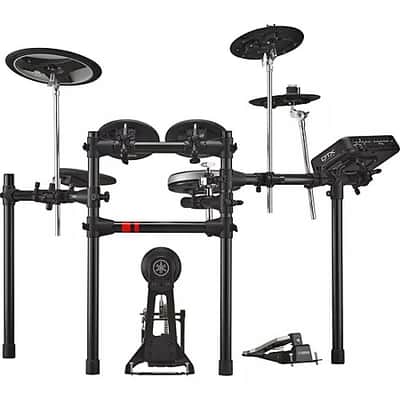

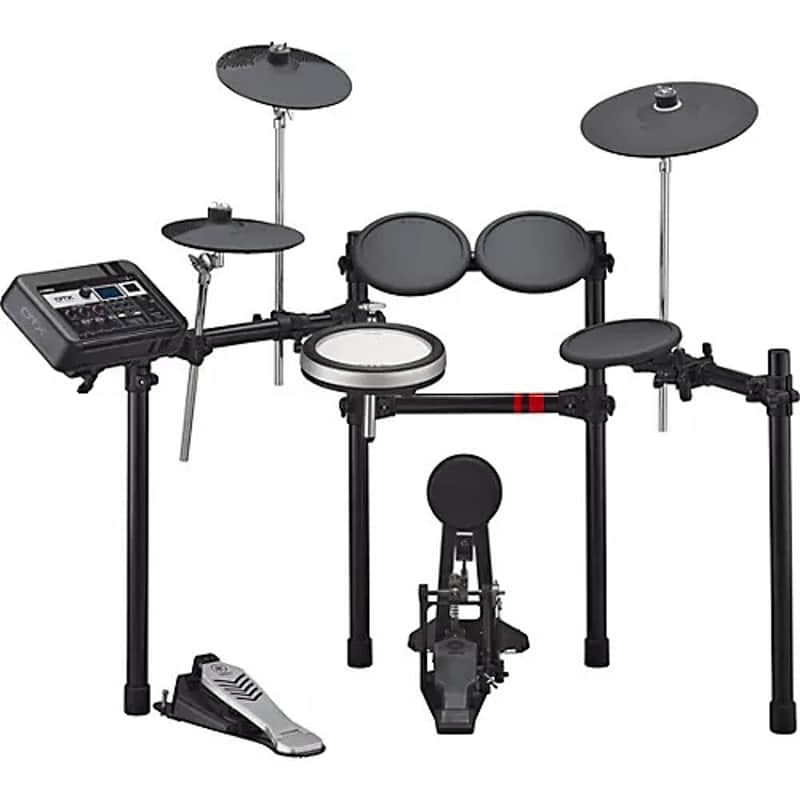

Yamaha DTX6K-X 5-Piece Electronic Drum Set

DTX6K-X Electronic Drum Set Specifications:

Configuration

• Tom pad(s): 3
• Cymbal pad(s): 3
• Snare pad: 1
• Kickpad: Yes
• Total pads: 8

Module

• Display type: LCD
• Drum kits: 40
• User kits: 200
• Sounds: 400
• Training functions: Yes
• Click: Yes

Pads

• Pad material: Silicon (snare), Rubber (toms)
• Zones: Triple (snare and ride), Single (other)
• Tom pad size: 7.5"
• Snare pad size: 8"

Hardware

• Kick pedal: No
• Throne: No

DTX-PRO ModuleEffects

• For each Inst: EQ / Comp / Transient / Insertion (*1), For each Kit: Ambience / Effect 1 / Effect 2 and Master Comp / Master Effect, For overall: Master EQ / Phones EQ (*1) Insertion effects can be used only for specific Inst.

Drum Kits

• Preset: 40 Kits, User: 200 Kits
• Voices: 712

Click

• Click Sets: 30
• Tempo: 30 to 300 BPM, Tap Tempo supported
• Time Signatures: 1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16
• Subdivisions: Accents, quarter notes, eighth notes, sixteenth notes, and eight-note triplets
• Others: Individual click volume control, wav import, timer

Training

• Types: 10
• Songs Preset: 37 songs, User: 1 song

Audio Files

• Import Limit: 1,000 files
• Maximum Loadable Sample Time: 760 seconds (44.1kHz, 16-bit, mono), 380 seconds (44.1kHz, 16-bit, stereo)
• Sample Format: WAV

Recorder

• Recording Time: Internal Memory: Maximum of 90 seconds
• USB Flash Drive: Maximum of 90 minutes per file
• Format Record/playback: WAV (44.1kHz, 16-bit, stereo)

Other

• Connectors: DC IN (+12V)
• Headphones: Headphones (standard stereo phone jack × 1)
• AUX IN: AUX IN (stereo mini jack × 1)
• Output: OUTPUT L/MONO, R (standard phone jack, one for each)
• USB: USB TO DEVICE, USB TO HOST
• MIDI: MIDI OUT
• Trigger Input: Trigger inputs 1, 14: (Standard stereo phone, L: Trigger, R: Rim switch / Trigger), 2/3, 4/5, 6/7, 12/13: (Standard stereo phone, L: Trigger, R: Trigger), 8, 9, 10, 11: (Standard stereo phone, L: Trigger, R: Rim switch) *Maximum 14 of pads to be connected (when Y-cable is used)
• Display: Full Dot LCD (128x64 dot)
• Accessories: AC adapter (PA-150 or an equivalent recommended by Yamaha, sold separately), owner’s Manual, module holder, module holder wing bolts (x4) Cubase AI Download Information
